Powertex
  • Not for lifting
  • Cr6+ Free

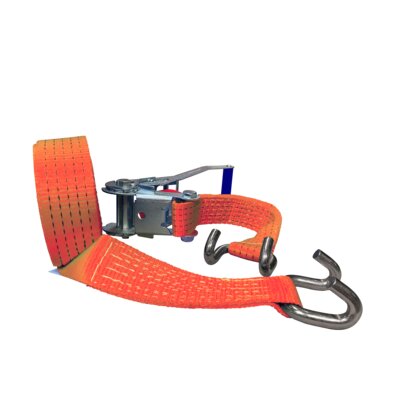

POWERTEX web lashing with U-hook. Available in 2-part design in lengths 8,5+0,5 and 9,5+0,5 m.

These web lashings are flexible and durable, made of high strength polyester yarn and steel ratchets and hooks.

Suitable for professional transporters with high standard tensioning force STF and high LC.

  • Orange webbing with 5 black stripes for easy identification
  • Both long part and short part carry blue identification labels
  • Tag give information on STF and Lashing Capacity for different lashing connections
  • Each part is marked with a unique serial number for safe equipment registration
  • The blue label is protected by transparent plastic layer for long life
  • Year/Month calendar printed on the label where next inspection date can be marked or punched
  • All lashings carry a white label with warning and user instructions pictogram
  • Each lashing marked with QR code to access full user manual
  • Trailer U-Hook can be supplied with other lengths and other end fittings on request.

Safety factor: 2:1

  • Marking: According to standard
  • Temperature range: -40°C up to +100°C.
  • Standard: EN 12195-2
    Web Lashing POWERTEX Trailer U-Hook 2-part
    Web Lashing POWERTEX Trailer U-Hooks
    Web Lashing POWERTEX Trailer U-Hook 2-part, packed
    Part Code LC
    daN
    2xLC
    daN
    Length Width Design Fitting STF
    daN
    Colour CAD
    14.02TRAU01WD0585OE 2 000 4 000 9 50 2-part Wire hook U 350 Orange -
    14.02TRAU01WD0595OE 2 000 4 000 10 50 2-part Wire hook U 350 Orange -
    LC = Lashing Capacity (straight)
    2xLC = double (2xLashing Capacity)
    1 daN = 1,012 kg

    Download CAD

    Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
