Powertex
  • Not for lifting
  • Cr6+ Free

POWERTEX Hobby 400 web lashings are available as endless or 2-part lashings which suits almost all situations for light and mid weight transports.

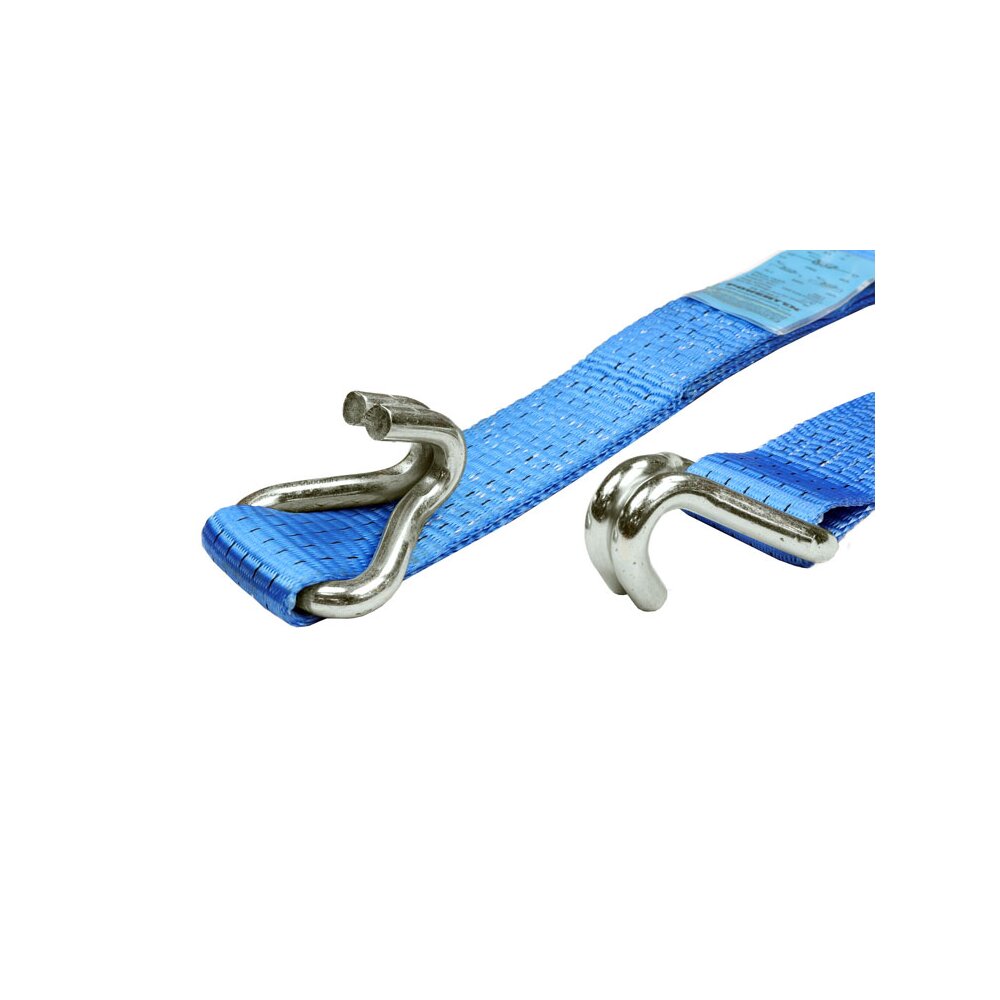

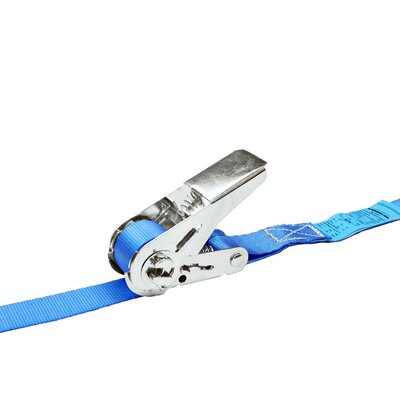

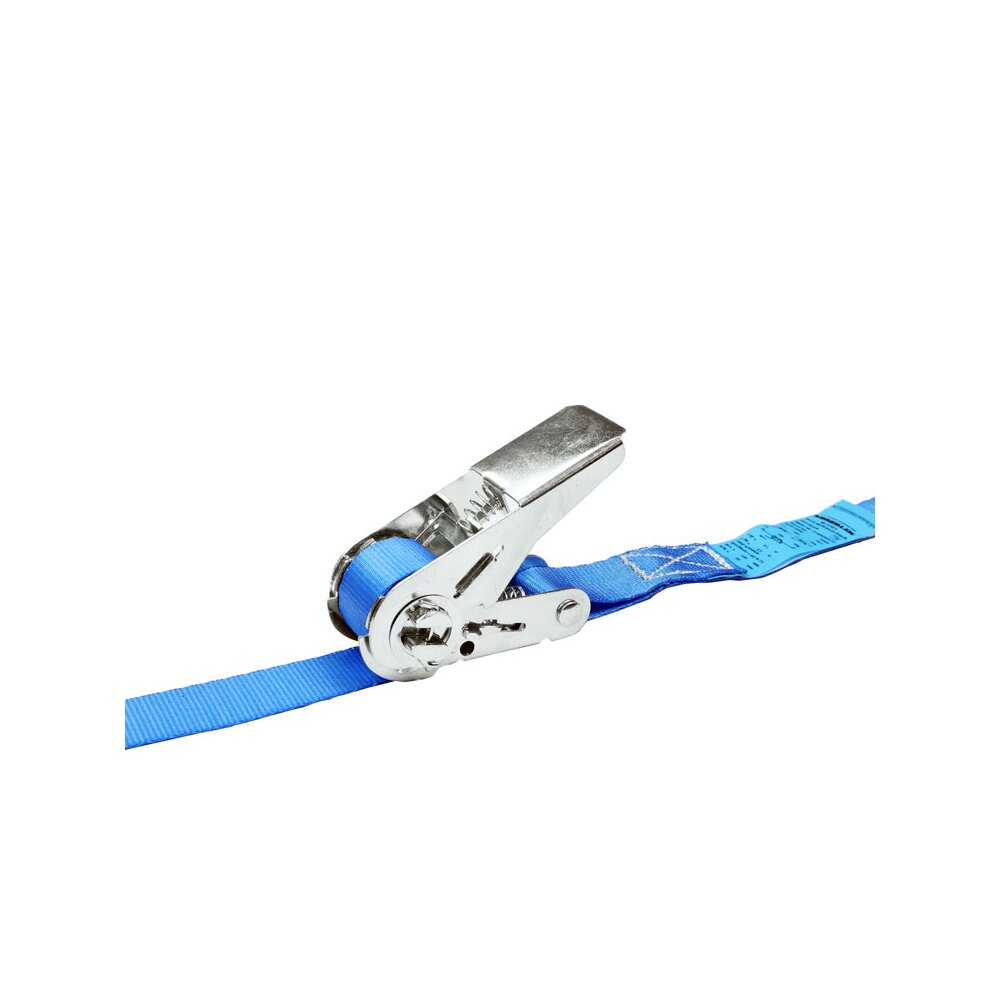

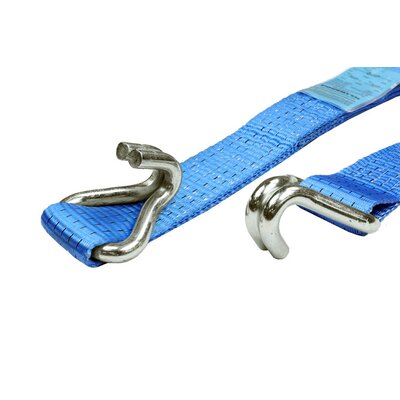

Flexible and durable lashings made of high strength polyester yarn and steel ratchets and hooks.

Suitable for roof-racks, trailers and pickups.

  • Hobby – Light and flexible with LC 400 daN
  • Blue webbing for easy identification
  • Both long part and short part carry blue identification labels
  • Label gives information on STF and lashing capacity for different lashing connections
  • Each part is marked with a unique serial number for safe equipment registration
  • Year/Month calendar printed on the label where next inspection date can be marked or punched
  • All lashings carry a white label with important warning instructions and user instruction pictogram
  • Each lashing marked with QR code to access full user manual
  • Cr6 free galvanization – better for health and environment
  • Hobby can be supplied with other lengths and other end fittings on request.

Safety factor: Webbing min. 3, Rachets min. 2 and Hooks min. 2

  • Material: Polyester and steel
  • Marking: According to standard, POWERTEX, LC, STF, length, manufacturing year, batch number, serial number, QR code, inspection calendar, user warning instructions
  • Temperature range: -40°C up to +100°C
  • Standard: EN 12195-2
  • Note: Protect the lashing from sharp edges
Part Code Code LC
daN
2xLC
daN
Design Length
m
Width
mm
STF
daN
Colour CAD
14.01HOB101ZZ050BE Hobby 400 400 800 Endless 5 25 100 blue
14.02HOB101WD0347BE Hobby 400 400 800 2-part 4,7 + 0,3 25 100 blue

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download

info / downloads
