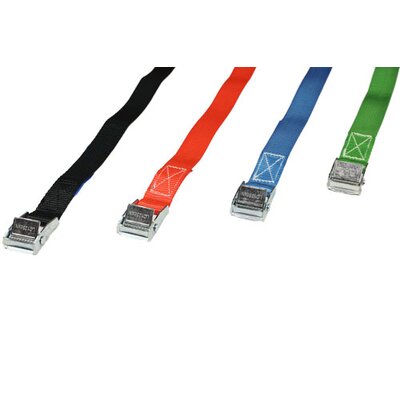

Mini web lashings in different colours

Home / Products / Cargo securing / Cam Buckle Mini POWERTEX

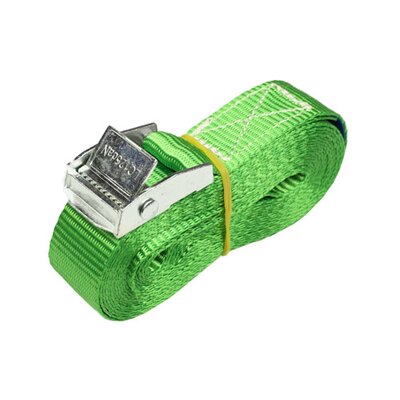

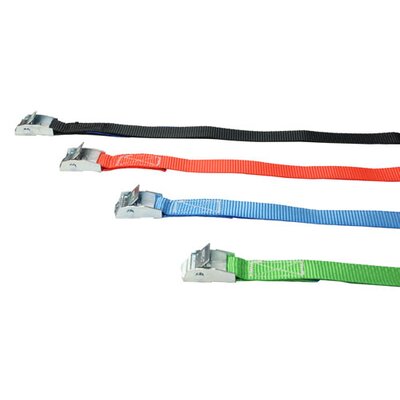

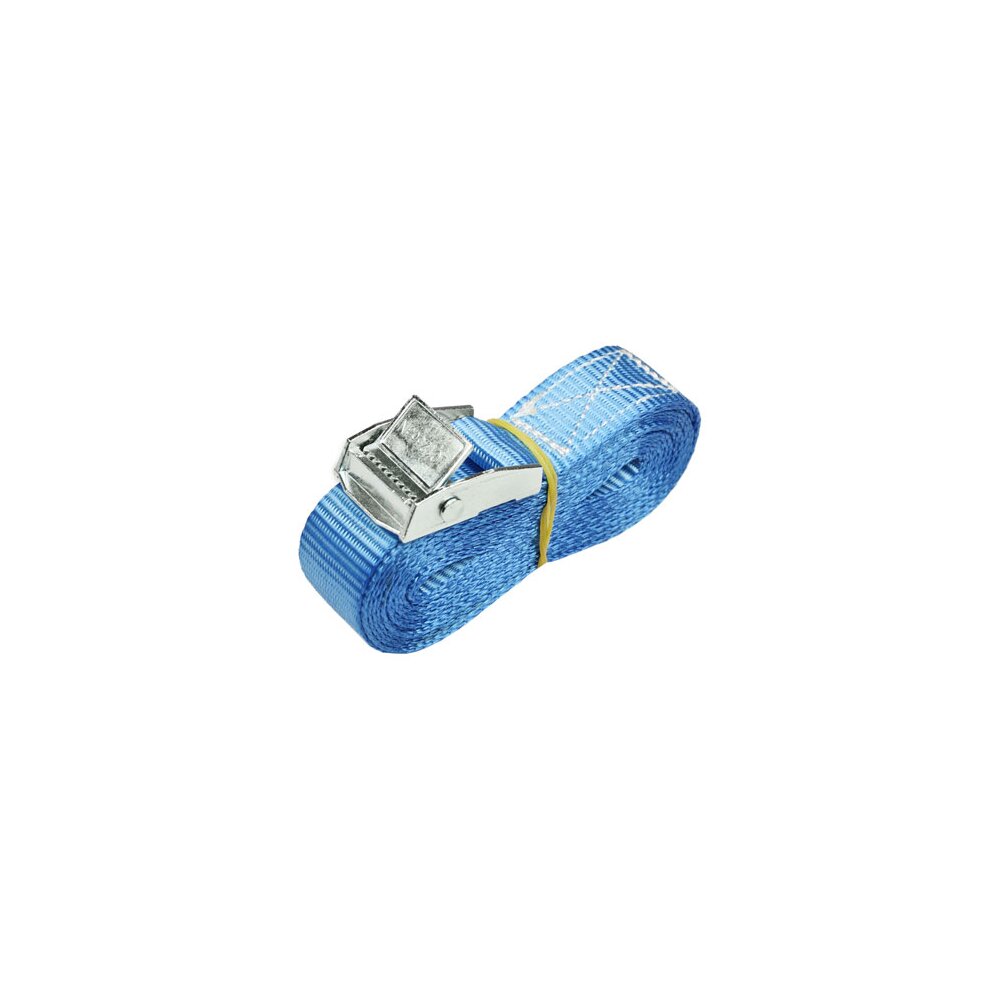

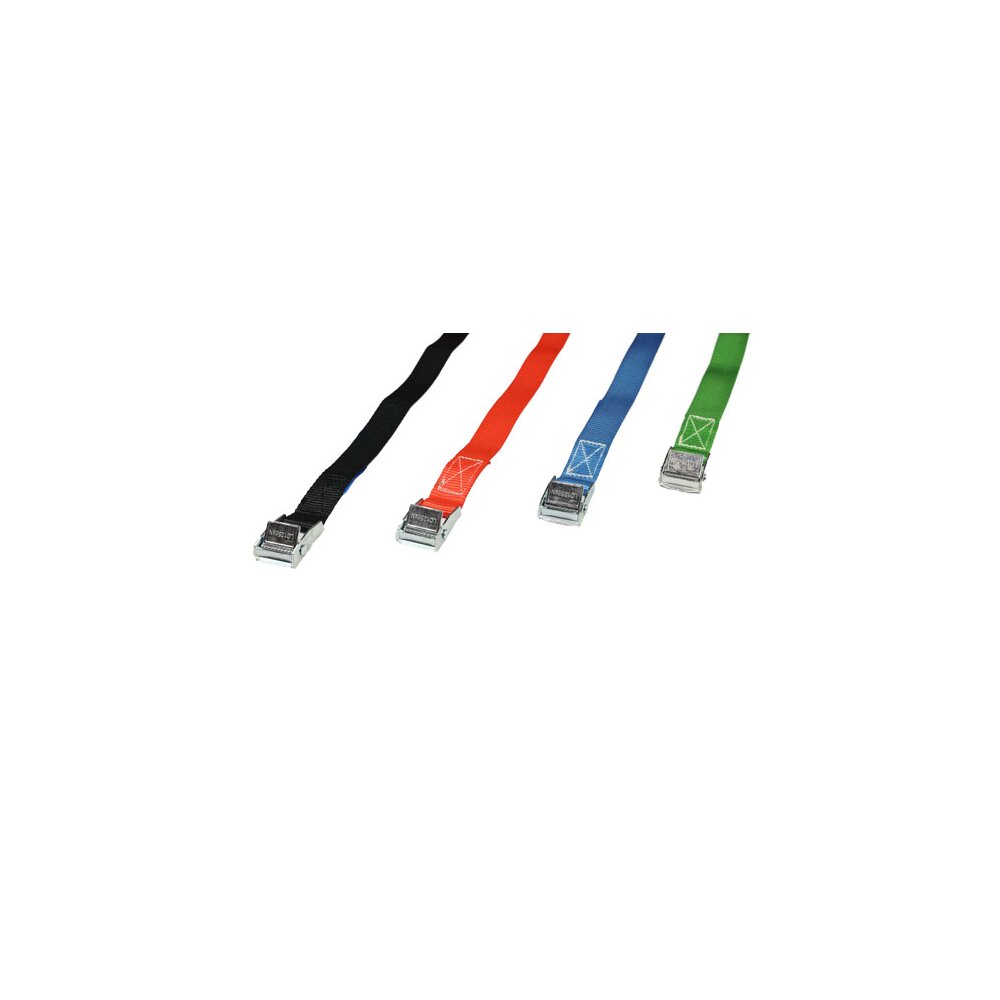

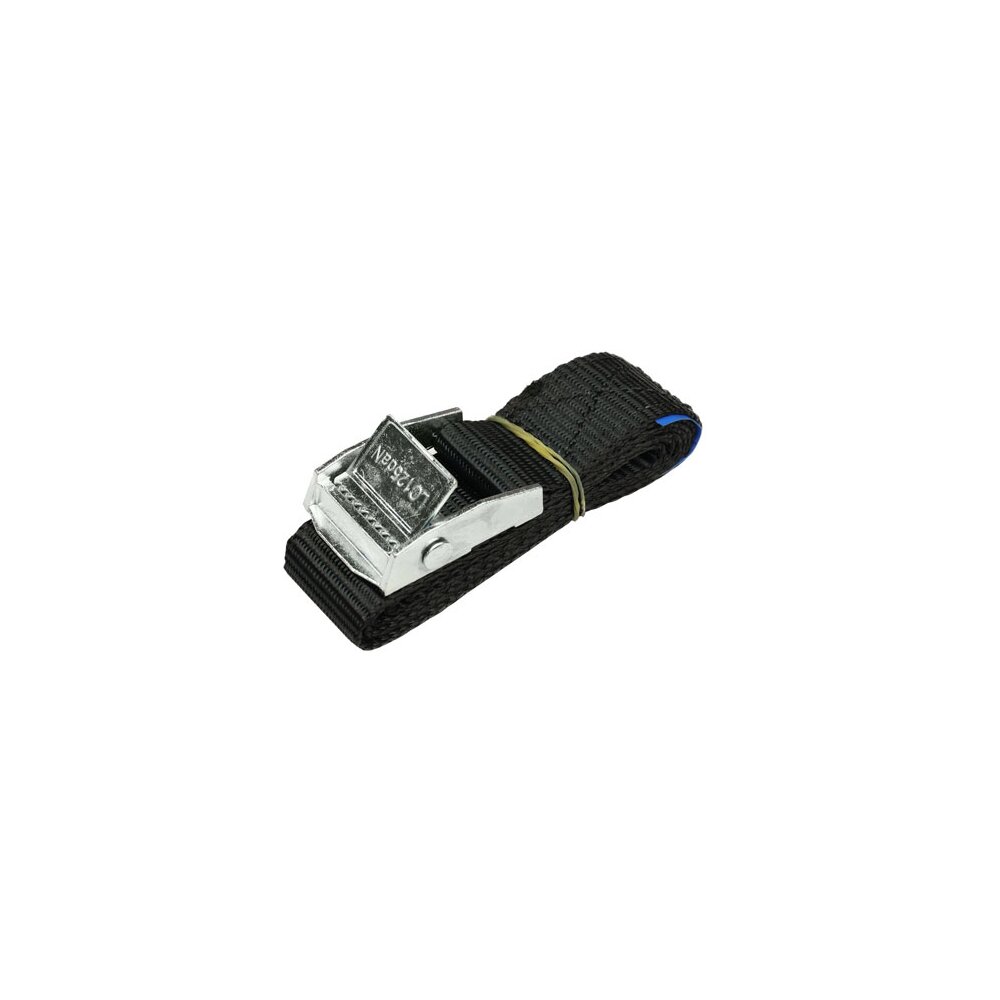

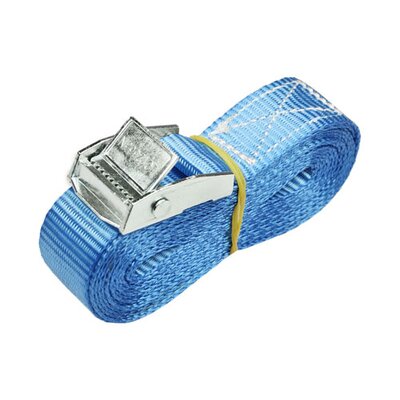

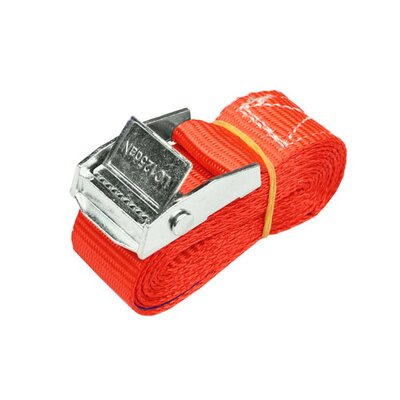

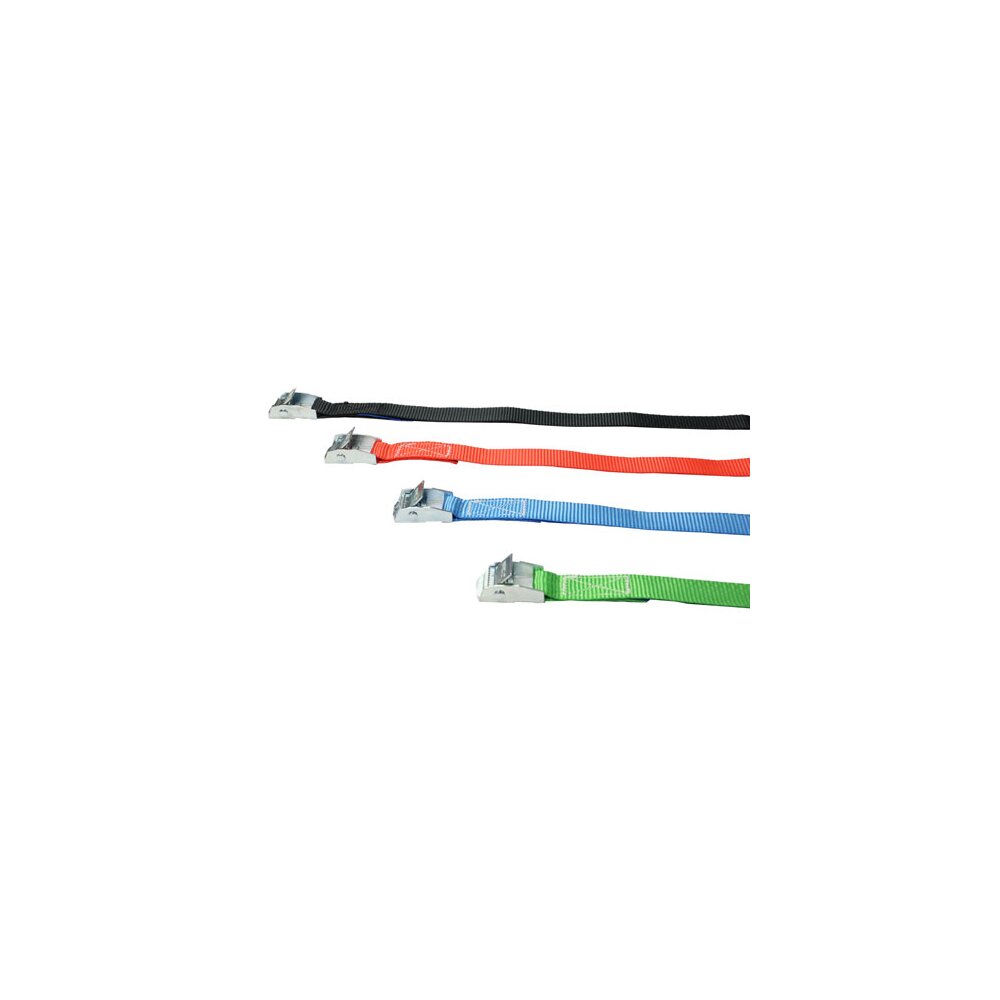

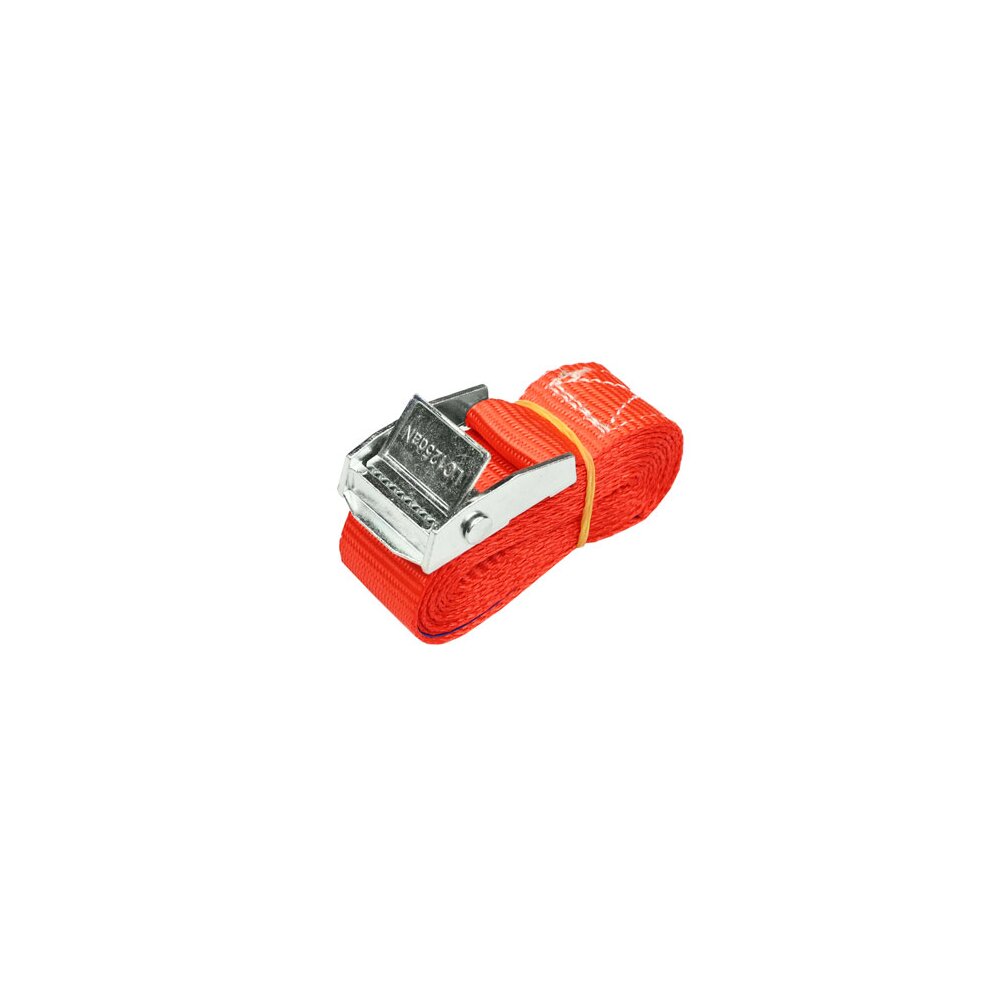

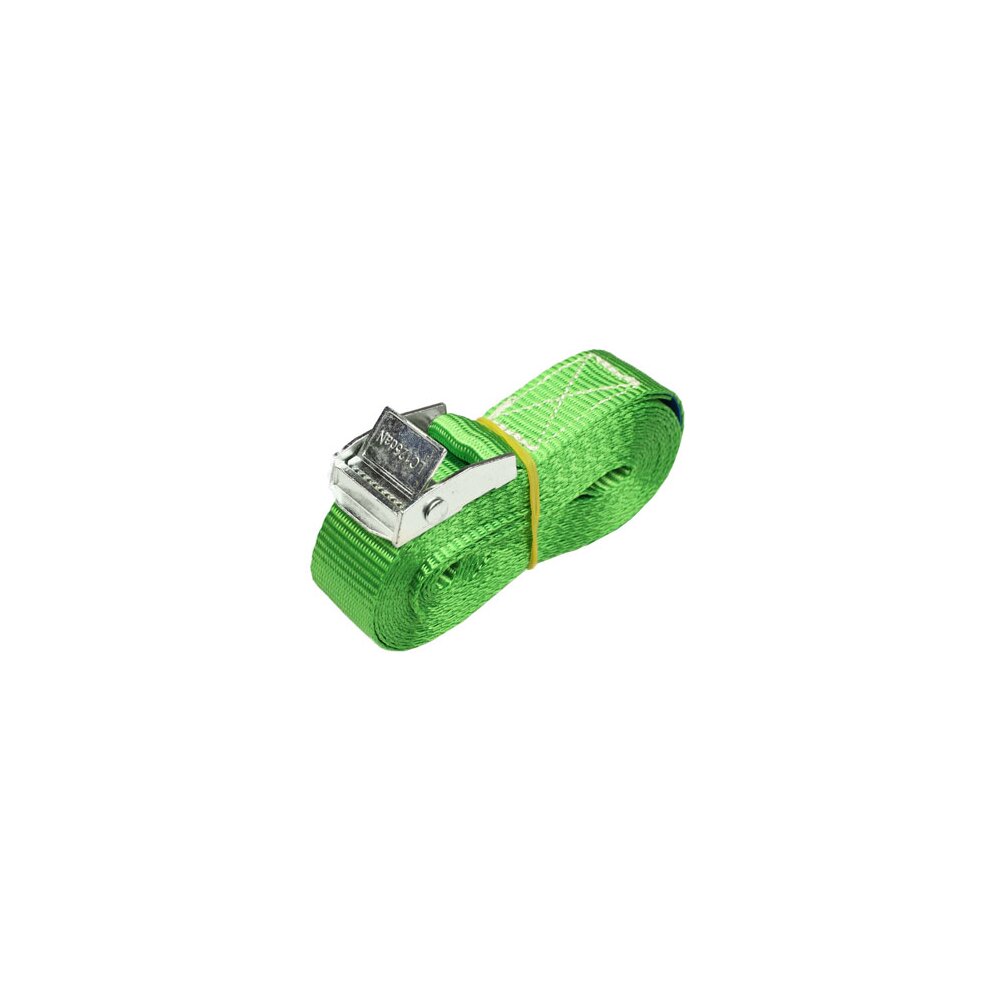

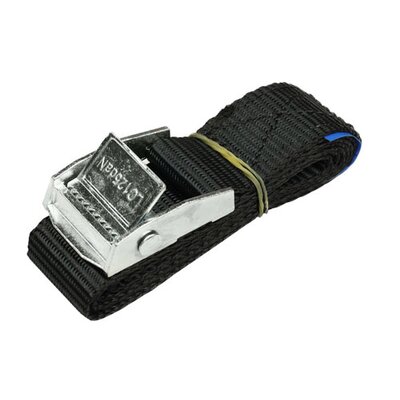

Cam buckle Mini web lashings. Available in different colours and lengths from 0,6 – 5,0 m. Webbing width is 25 or 35 mm.

Suitable for fast lashing and for keeping items together.

Material: Polyester and steel
Marking: According to standard, POWERTEX, LC, length, manufacturing year, batch number, serial number, inspection calendar
Temperature range: -40°C up to +100°C
Standard: EN 12195-2
Note: Protect the lashings from sharp edges

Cambuckle Mini POWERTEX

Part Code	LC daN	2xLC daN	Length m	Width mm	Design	Colour
14.01MIN25ZZ006BK	125	250	0.6	25	Endless	Black
14.01MIN25ZZ010BK	125	250	1	25	Endless	Black
14.01MIN25ZZ010RD	125	250	1	25	Endless	red
14.01MIN25ZZ015RD	125	250	1.5	25	Endless	red
14.01MIN25ZZ020BK	125	250	2	25	Endless	Black
14.01MIN25ZZ030BE	125	250	3	25	Endless	Blue
14.01MIN25ZZ040GN	125	250	4	25	Endless	Green
14.01MIN25ZZ050BK	125	250	5	25	Endless	Black
14.01MIN25ZZ050RD	125	250	5	25	Endless	red
14.01MIN35ZZ010BK	300	600	1	35	Endless	Black

LC = Lashing Capacity (straight)
2xLC = double (2xLashing Capacity)
1 daN = 1,012 kg

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
