Powertex
  • Not for lifting
  • Cr6+ Free

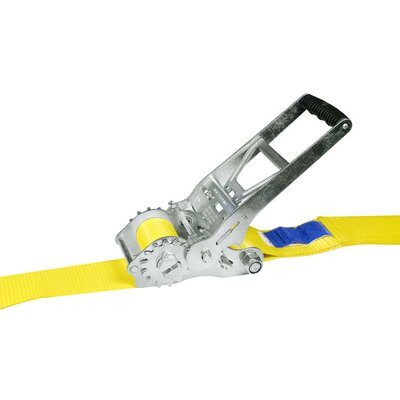

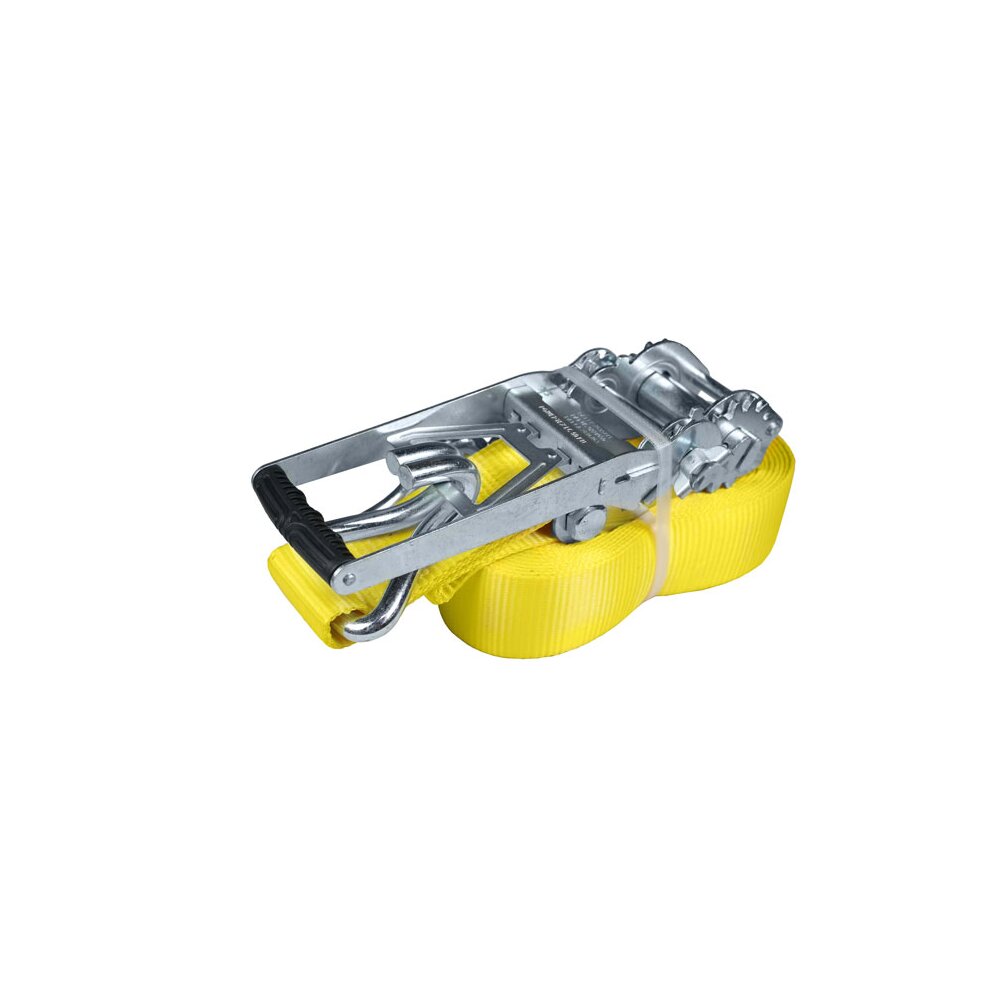

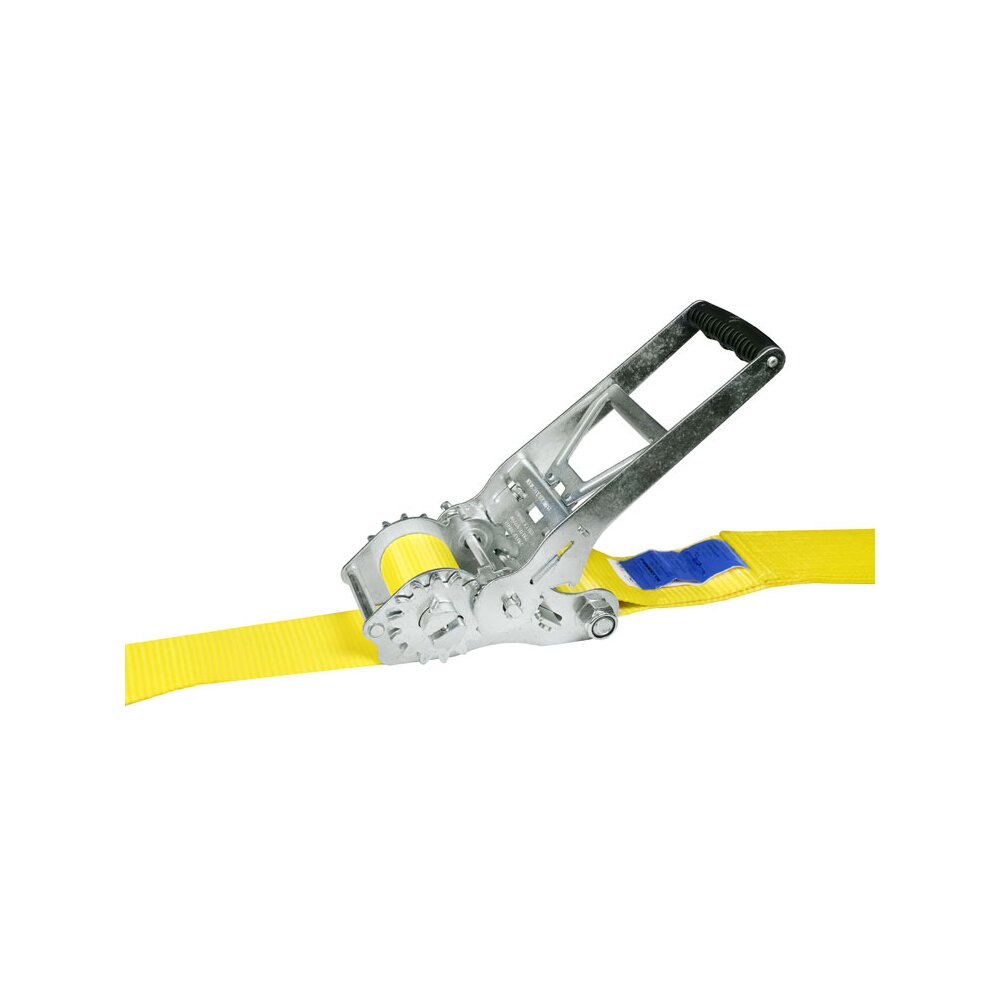

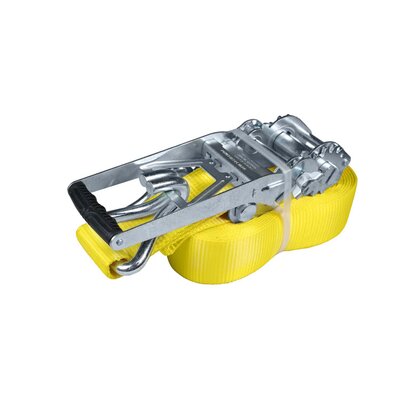

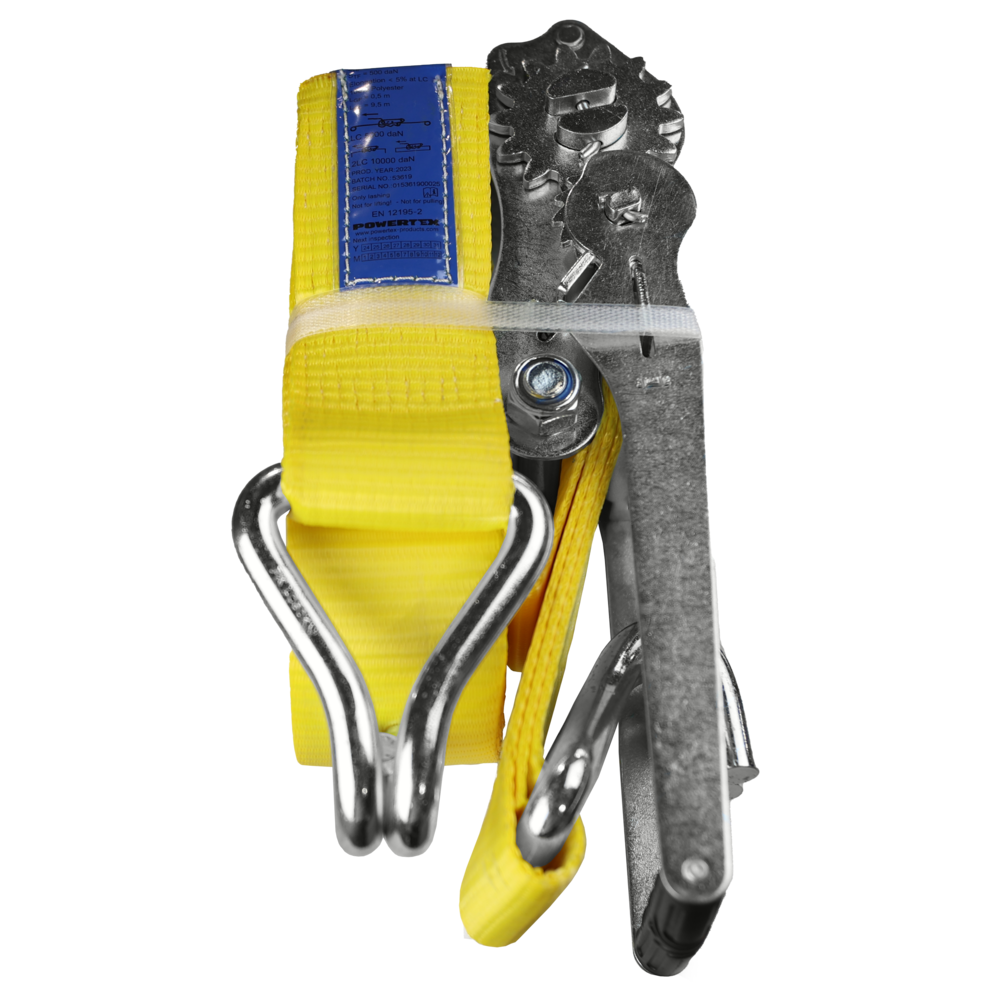

POWERTEX Strong web lashings are available as endless or 2-part lashings and used for exceptional loads and heavy transports. The ratchet has a unique multi gear wheel construction that multiplies the force placed on the handle which increases the tensioning force compared to standard lashings. The ratchet has reversed operation for ergonomic and easy tensioning.

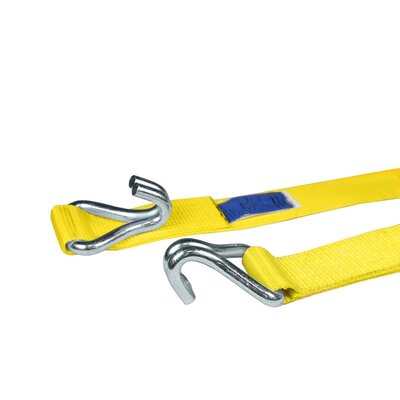

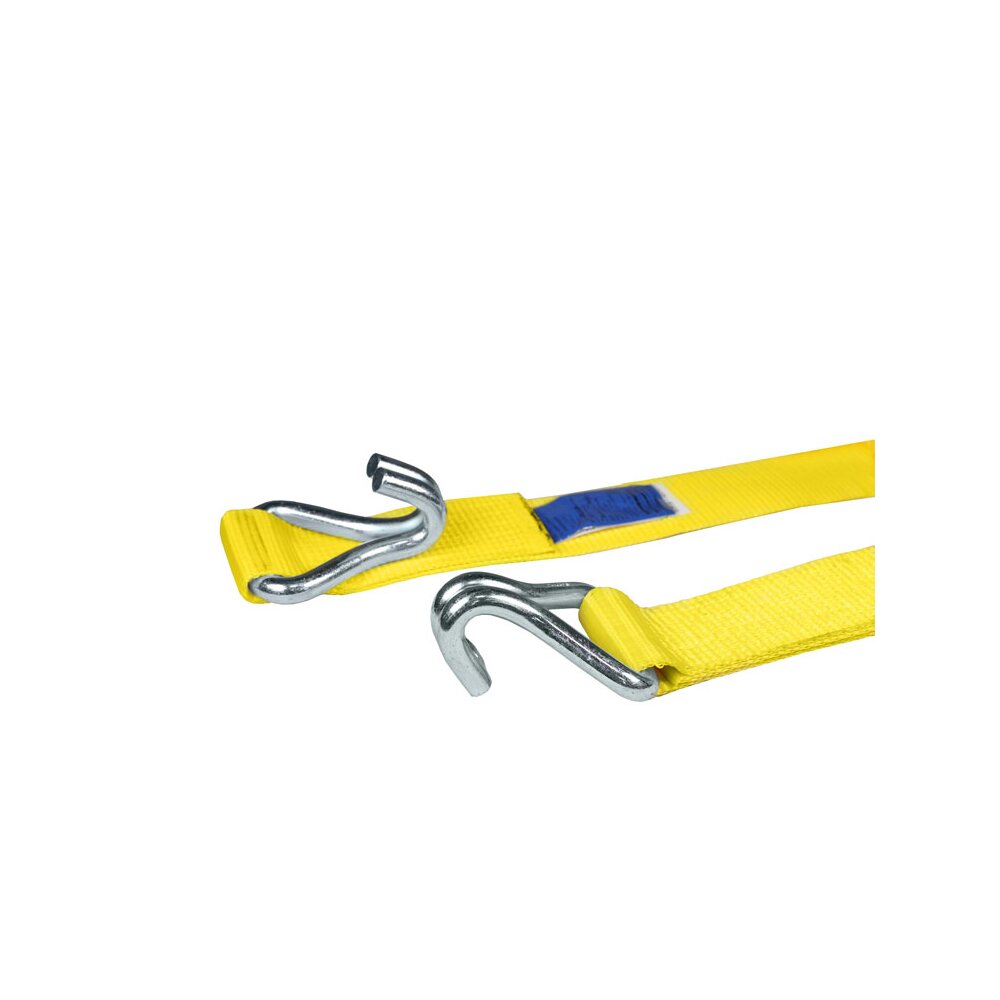

These heavy duty web lashing are made of high strength polyester yarn and steel ratchets and steel hooks. Suitable for professional heavy transporters looking for highest strength and highest tension force

  • Strong Ergo Gear – Strong, ergonomic and durable with LC 5000 daN and STF 530 daN
  • Webbing having min breaking strength of min 15000 daN
  • Yellow webbing for easy identification

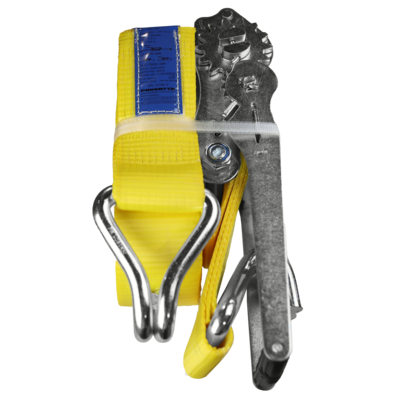

  • Both long part and short part carry blue identification labels

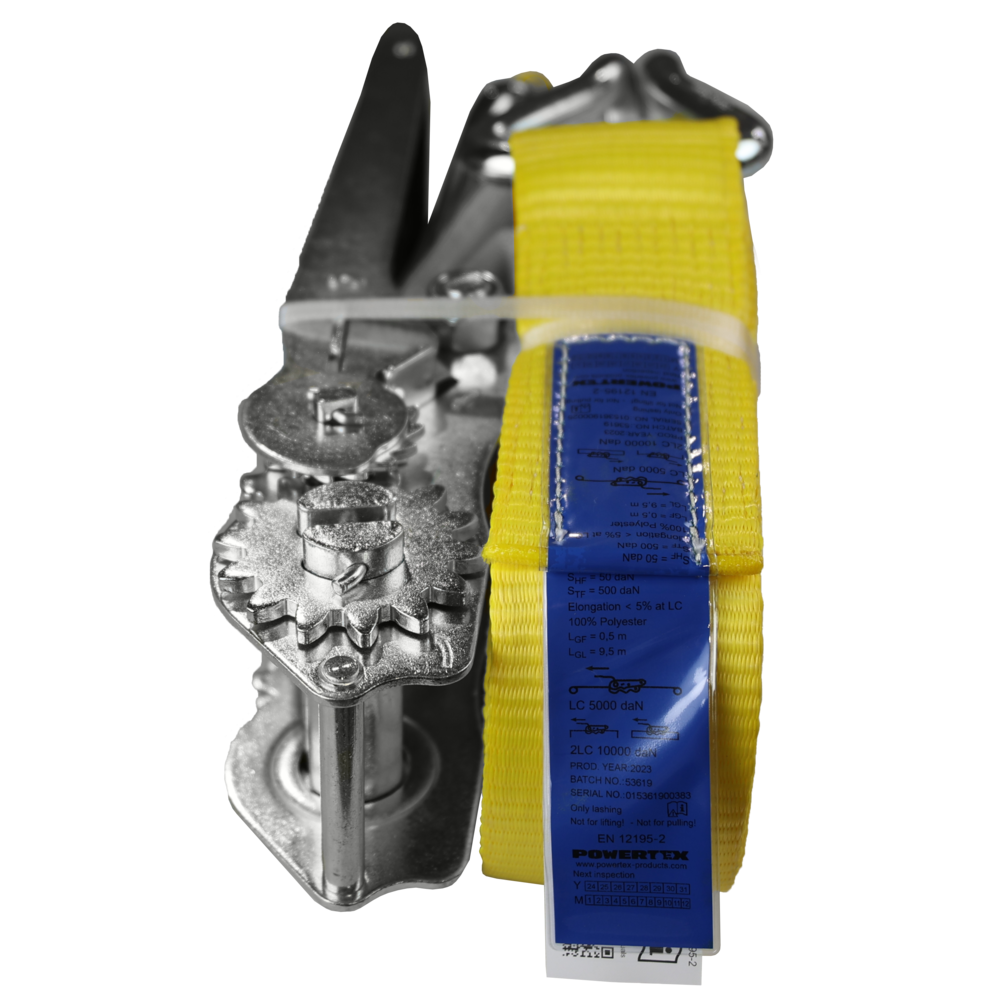

  • Label gives information on STF and lashing capacity for different lashing connections
  • Each part is marked with a unique serial number for safe equipment registration
  • The blue information label is protected by additional layer of transparent plastic for long life
  • Year/Month calendar printed on the label where next inspection date can be marked or punched
  • All lashings carry a white label with important warning instructions and user instruction pictogram
  • Each lashing marked with QR code to access full user manual
  • Cr6 free galvanization – better for health and environment
  • This lashing can be supplied with other lengths and other end fittings on request.

Safety factor: Webbing min. 3, Rachets min. 2 and Hooks min. 2

  • Material: Polyester and steel
  • Marking: According to standard, POWERTEX, LC, STF, length, manufacturing year, batch number, serial number, QR code, inspection calendar, user warning instructions
  • Temperature range: -40°C up to +100°C
  • Finish: Protect the lashing from sharp edges
  • Standard: EN 12195-2
Part Code Code LC
daN
2xLC
daN
Design Length
m
Width
mm
STF
daN
Colour CAD
14.01SEG01ZZ100YW Strong Ergo Gear 5,000 10,000 Endless 10 75 530 yellow
14.02SEG01WD0595YW Strong Ergo Gear 5,000 10,000 2-part 9,5 + 0,5 75 530 yellow
