Powertex
  • Not for lifting
  • Cr6+ Free

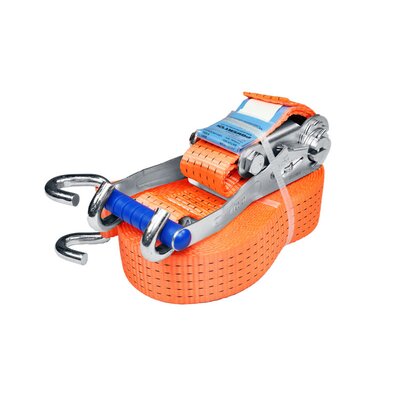

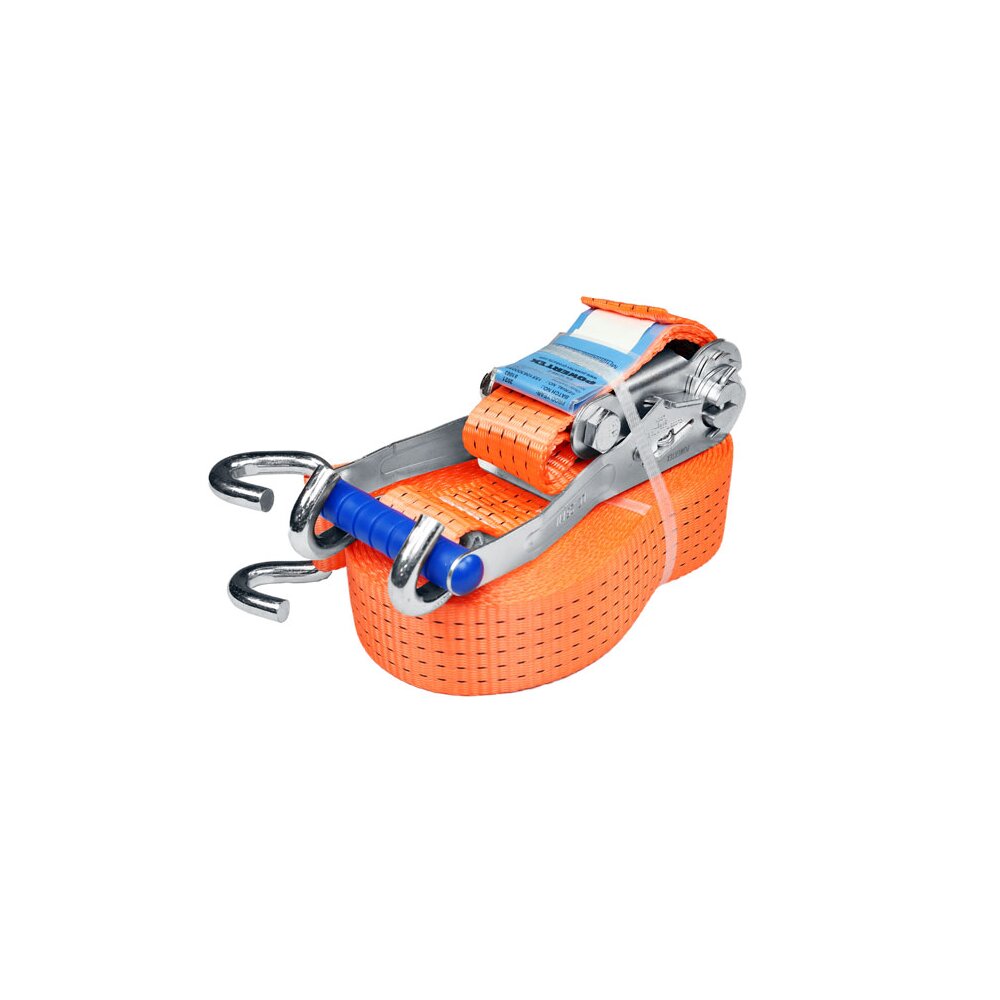

POWERTEX web lashing with U-hook. Available in 2-part design in lengths 8,5+0,5 and 9,5+0,5 m.

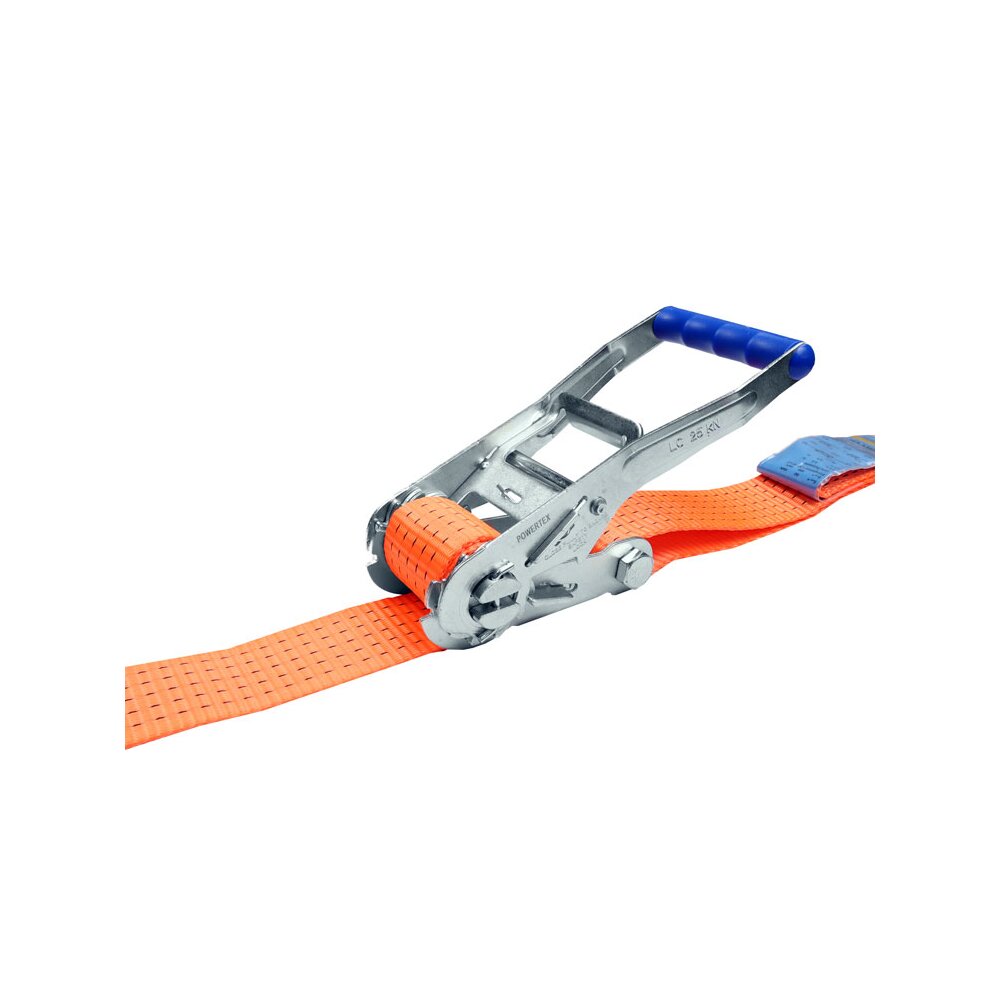

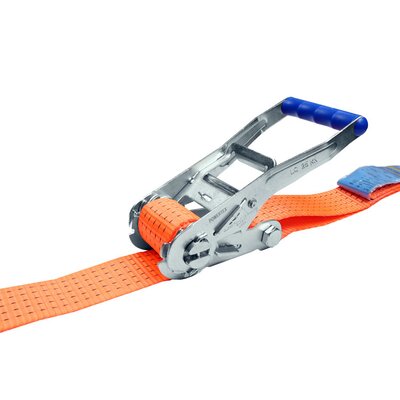

These web lashings are flexible and durable, made of high strength polyester yarn and steel ratchets and hooks.

Suitable for professional transporters with high standard tensioning force STF and high LC.

  • Orange webbing with 5 black stripes for easy identification
  • Both long part and short part carry blue identification labels
  • Tag give information on STF and Lashing Capacity for different lashing connections
  • Each part is marked with a unique serial number for safe equipment registration
  • The blue label is protected by transparent plastic layer for long life
  • Year/Month calendar printed on the label where next inspection date can be marked or punched
  • All lashings carry a white label with warning and user instructions pictogram
  • Each lashing marked with QR code to access full user manual

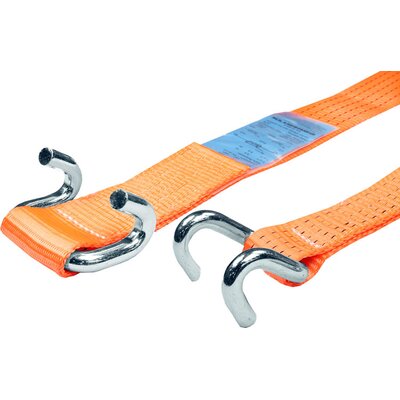

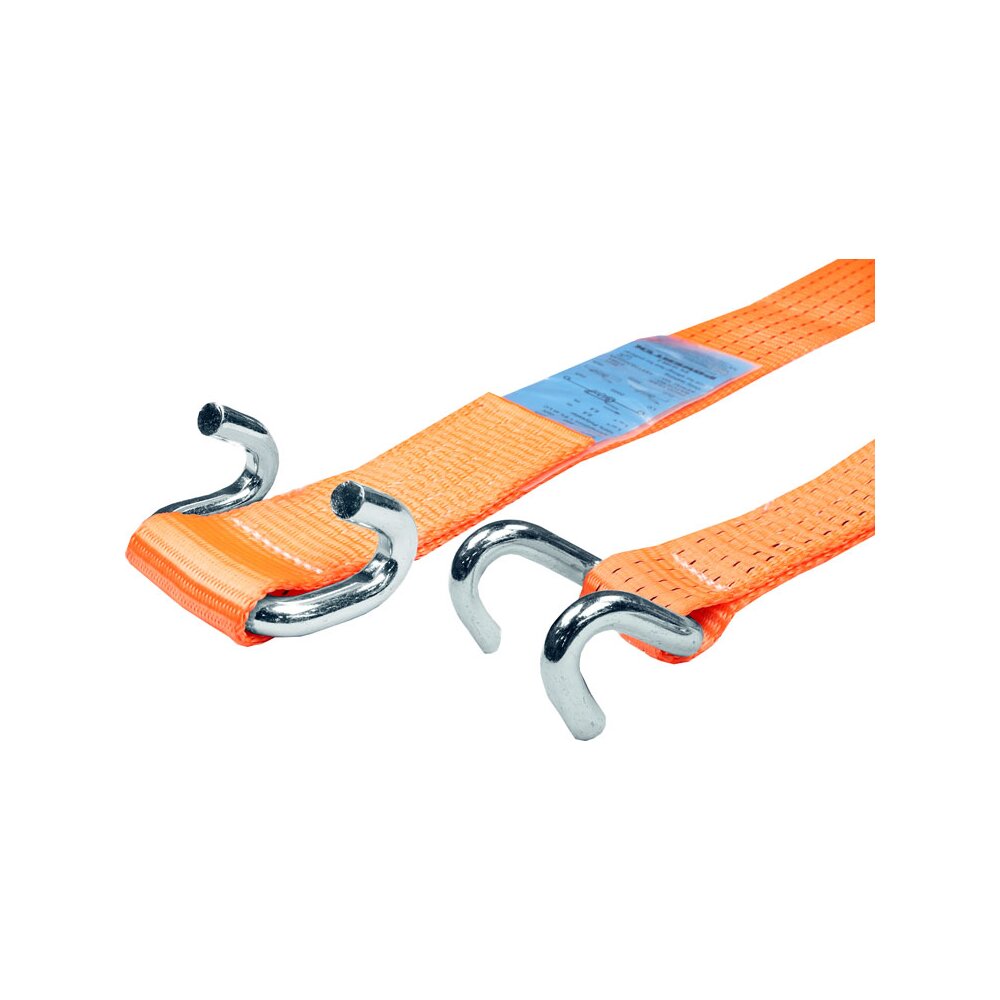

  • Trailer U-Hook can be supplied with other lengths and other end fittings on request.

Safety factor: 2:1

  • Marking: According to standard
  • Temperature range: -40°C up to +100°C.
  • Standard: EN 12195-2
Part Code LC
daN
2xLC
daN
Length
m
Width
mm
Design Fitting STF
daN
Colour CAD
14.02TRAU01WD0585OE 2,000 4,000 9 50 2-part Wire hook double U 350 orange
14.02TRAU01WD0595OE 2,000 4,000 10 50 2-part Wire hook double U 350 orange
LC = Lashing Capacity (straight)
2xLC = double (2xLashing Capacity)
1 daN = 1,012 kg

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
