Ropetex
  • Not for lifting
  • Left spiral strand
  • Right spiral strand
  • Stainless steel
  • Not to be used with swivel

ROPETEX S19 is a stainless steel wire rope. It's very corrosion resistant and durable, well suited for marine applications. The S19 rope has very little stretch which makes is excellent for standing rigging, stays, controls and architectural balustrades and green walls.

ROPETEX S19 can be provided with swaged terminals as end fittings.

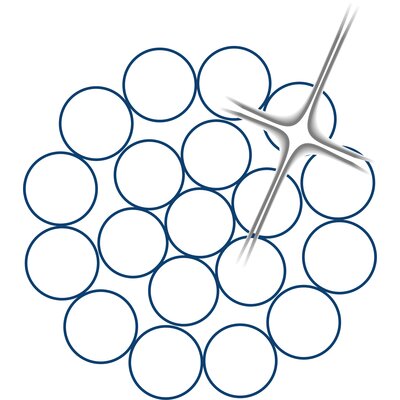

  • Rope construction: 1x19
  • Material: AISI 316 / EN 1.4401
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C
  • Standard: EN 12385-10
    except material
  • Warning: Not to be used for lifting purposes
  • Fill factor: 0,74
  • Stay rope Stay rope
  • Agriculture and livestock Wire for agriculture
Steel Wire Rope ROPETEX S19 Stainless Steel
Part Code Rope diameter Steel area
mm²
Min. breaking force
kN
1570 N/mm²
Weight
kg/100m
108100101620018 1 0,58 0,83 0,49
108100131620018 1,25 0,91 1,29 0,74
108100151620018 1,5 1,31 1,86 1,09
108100201620018 2 2,33 3,3 1,94
108100252620018 2,5 3,65 5,16 3,03
108100301620018 3 5,25 7,43 4,37
108100401620018 4 9,34 13,2 7,76
108100501620018 5 14,6 20,6 12,1
108100601620018 6 21 29,7 17,5
108100701620018 7 28,6 40,5 23,8
