ROPETEX S49 in stainless steel is a wire rope often used as stay rope, stående rigning, hanging signs, and fencing rope.

Due to it's high quality stainless steel material grade it has an excellent corrosion resistance. It's most used in small diameters up to 12 mm.

ROPETEX S49 is equipped with a steel core (WSC).

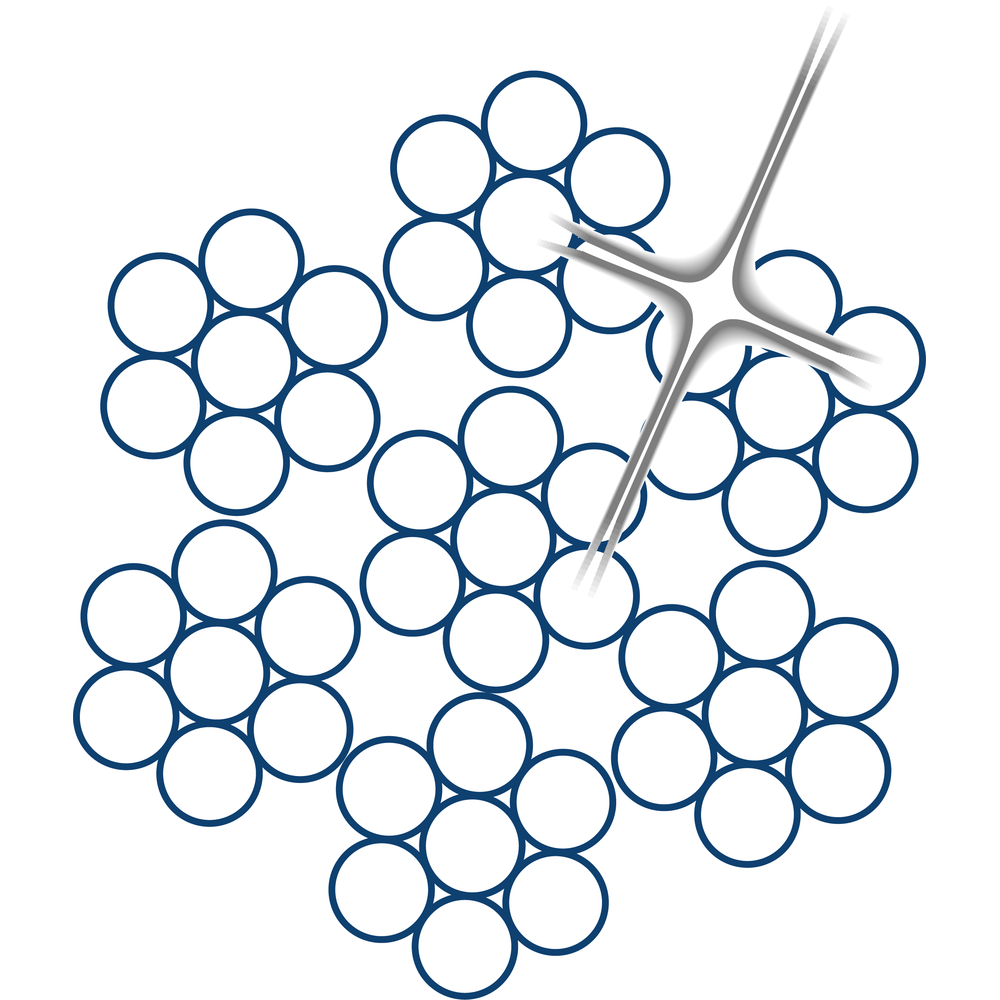

  • Rope construction: 6x7-WSC (7x7)
  • Material: AISI 316 / EN 1.4401
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C
  • Standard: EN 12385-4
    except material
  • Warning: Not to be used for lifting purposes
  • Fill factor: 0,55
Download Document

Filters

Show more filters

Product FAQ

What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a Stainless and is manufactured with a tensile strength of 1570 N/mm².Stainless steel provides excellent resistance to corrosion in aggressive environments such as marine, chemical, or hygienic applications.
What is the construction, core type, and lay of this steel wire rope?
This steel wire rope is constructed with 6 strands. It is manufactured with a steel core, offering higher structural stability, improved resistance to crushing, and reliable performance under heavy loads and multi-layer winding conditions. It is manufactured with an ordinary right-hand lay (sZ), providing a balanced combination of flexibility, wear resistance, and stable handling. This is the most commonly used lay for general
