Steel Wire Rope Ropetex S65 Stainless Steel

Ropetex
  • Attribute icon
  • Attribute icon
  • Attribute icon

Ropetex S65 is a stainless steel rope, the most commonly used range is from 8 to 38 mm. It can be used for cranes, hoists, slings and a wide range of various other applications.

Ropetex S65 is equipped with an Independent Wire Rope Core (IWRC) which gives it a high breaking strength and dimensionally stability, especially when used on sheaves or drums.

In stainless steel (AISl 316) it's well suited for marine and aggressive environments.

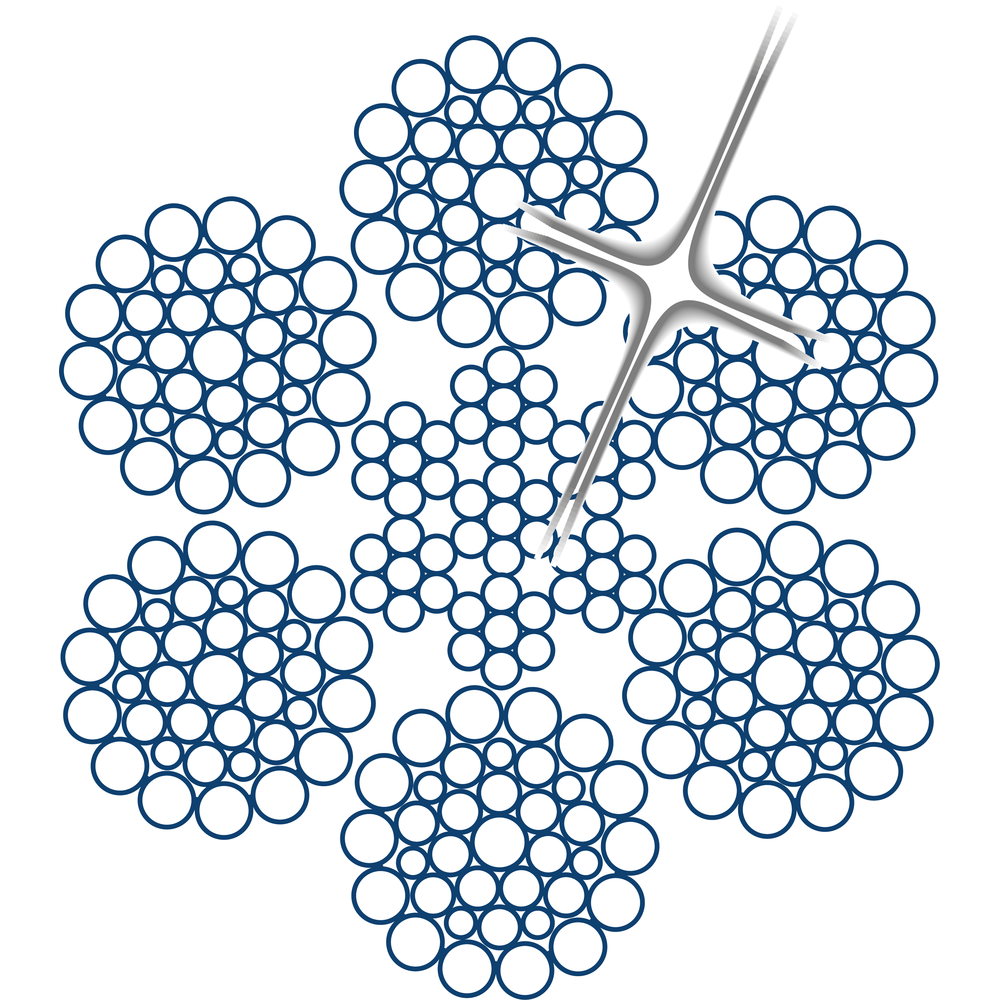

  • Rope construction: 6x36WS+IWRC
  • Material: AISI 316 / EN 1.4401
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C
  • Standard: EN 12385-4
    except material
  • Fill factor: 0,59
Download Document

Filters

Show more filters

Product FAQ

What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a Stainless and is manufactured with a tensile strength of 1570 N/mm².Stainless steel provides excellent resistance to corrosion in aggressive environments such as marine, chemical, or hygienic applications.
What is the construction, core type, and lay of this steel wire rope?
This steel wire rope is constructed with 6 strands. It is manufactured with a steel core, offering higher structural stability, improved resistance to crushing, and reliable performance under heavy loads and multi-layer winding conditions. It is manufactured with an ordinary right-hand lay (sZ), providing a balanced combination of flexibility, wear resistance, and stable handling. This is the most commonly used lay for general It is manufactured with an ordinary left-hand lay (zS), offering similar performance characteristics to right-hand ordinary lay but designed for specific directional or equipment requirement
