Ropetex
  • Ordinary right hand lay
  • Galvanized
  • Rotation resistant
  • Can be used with swivel

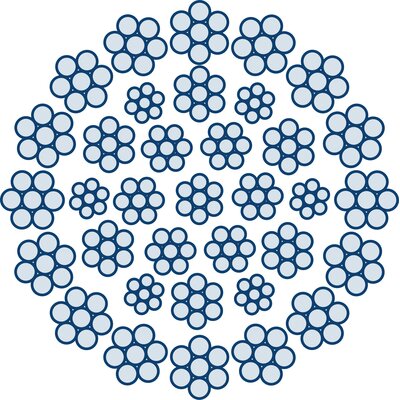

ROPETEX S55 is a rotating-resistant steel wire rope consisting of three layers of strands and a (steel) wire strand core. As the outer layer are closed in the opposite direction of the two inner layers this rope is considered as rotating-resistant steel wire rope.

ROPETEX S55 is available from 9 to 20 mm and can be used for unguided single part lifting even with great lifting heights.

ROPETEX S55 is good to use in several crane types like tower cranes, mobile cranes, electrical hoists and all other applications where a rotation resistant wire rope is required.

If you are searching for a comparable rope in a smaller diameter, look at ROPETEX S18.

  • Rope construction: 35(W)x7
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C, for operating temperatures between 100°C and 200°C reduce MBF by minus 10 %
  • Standard: EN 12385-4
  • Note: Ropes of the class 35x7 have to be replaced always by ropes of the same/comparable class and never by ropes of class 18x7. Whereas ropes of the class 18x7 can be replaced also by ropes of 35x7 from a technical point of view.
  • Fill factor: 0,61
  • RCN: 23-2
  • Mobile crane Mobile crane wire rope
  • Self-erected crane Wire for self-erecting crane
  • Tower crane Wire rope for tower crane
  • Luffing crane Wire for luffing crane
  • Overhead cranes For the use with overhead crane
  • Mobile port crane Wire for mobile port crane
  • Deck crane Wire for deck crane
  • Jib crane Wire for jib crane
  • Truck crane Wire for truck crane
Steel Wire Rope ROPETEX S55
Part Code Rope diameter
mm
Steel area
mm²
Min. breaking force
kN
1960 N/mm²
Weight
kg/100m
102100904270021 9 38,9 57,2 36,8
102101004270021 10 48 70,6 45,4
102101204270021 12 69,1 102 65,4
102101304270021 13 81,1 119 76,7
102101404270021 14 94,1 138 89
102101504270021 15 108 159 102
102101604270021 16 123 181 116
102101804270021 18 156 229 147
102101904270021 19 173 255 164
102102004270021 20 192 282 182
