Steel Wire Rope ROPETEX S16
Product information
ROPETEX S16 (and S65) steel wire ropes are the most commonly used type of steel wire ropes in the range from 8 to 38 mm. Both can be used for a variety of applications.
Available as S16 with Fiber Core (FC) or as S65 with Independent Wire Rope Core (IWRC). S16 is more flexible but has a lower breaking strength.
S65 is less flexible but has higher strength and is more dimensionally stable, especially when used on sheaves or drums.
Typical applications:
- Wire rope sling
- Hoisting installations
- Lifting rope
- Mooring cable
- Towing rope
- Lifting applications
Alternatives:
-
ROPETEX S65 is a very comparable rope with an Independent Steel Wire Rope Core (IWRC) instead of a Fiber Core (FC);

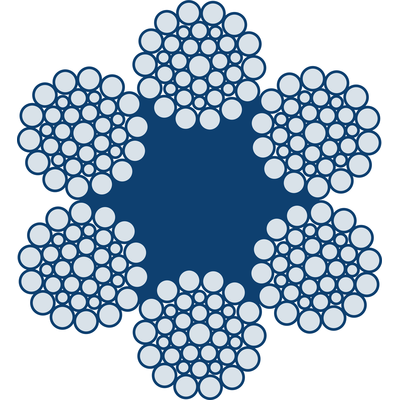

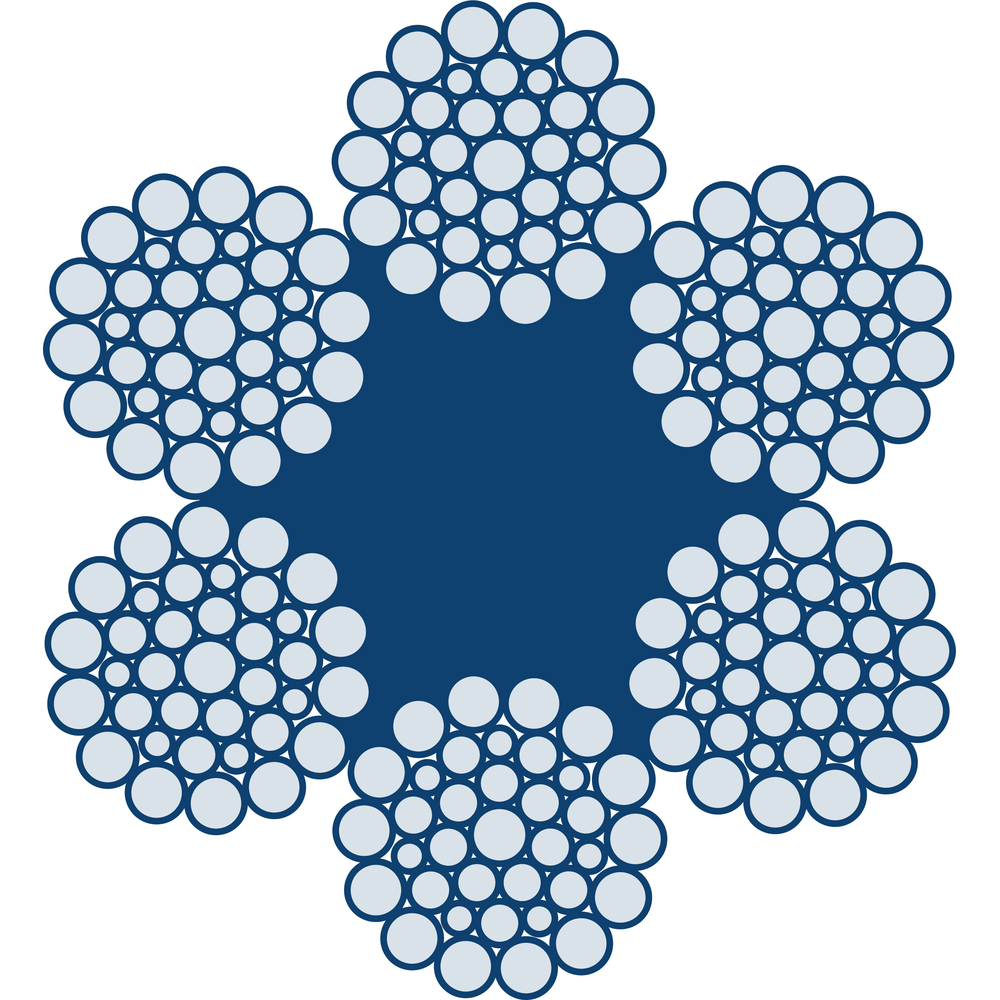

- Rope construction: 6x36WS-FC
- Marking: According to standard
- Temperature range: -40°C up to +100°C
- Standard: EN 12385-4
- Fill factor: 0,5
- RCN: 09
-
General use
-
Overhead cranes
-
Slings
Product FAQ
What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a Galvanized and is manufactured with a tensile strength of 1960 N/mm².The galvanized coating provides corrosion protection through a zinc layer, making the rope suitable for outdoor use and humid operating conditions.
What is the construction, core type, and lay of this steel wire rope?
This steel wire rope is constructed with 6 strands.
It is manufactured with a fibre core, which provides increased flexibility. Fibre core constructions are suitable for applications involving frequent bending over sheaves and drums where hig
It is manufactured with a right-hand lang lay (zZ), offering increased abrasion resistance and extended service life in applications where surface wear is a critical factor.
