Steel Wire Rope ROPETEX S49

Ropetex
  • Attribute icon
  • Attribute icon
  • Attribute icon
  • Attribute icon

ROPETEX S49 is a wire rope for general purposes like hanging signs, control and signaling devices, but not for lifting. It's most used in small diameters up to 6 mm. ROPETEX S49 is equipped with a Steel Core (WSC).

ROPETEX S42 is the same rope but has a Fibre Core (FC) and is therefore more flexible.

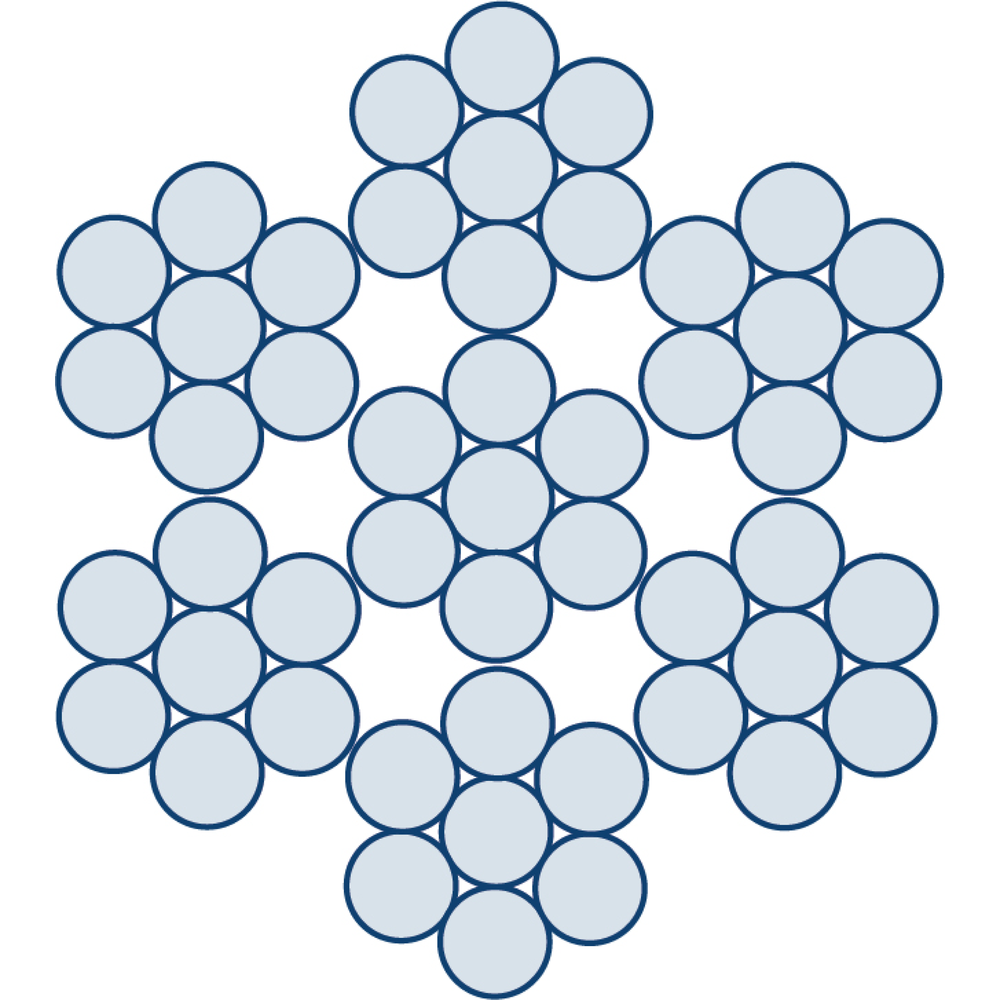

  • Rope construction: 6x7-WSC (7x7)
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C, for operating temperatures between 100°C and 200°C reduce MBF by minus 10 %.
  • Standard: EN 12385-4
  • Warning: Not to be used for lifting purposes
  • Fill factor: 0,55
Download Document

Filters

Show more filters

Product FAQ

What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a Galvanized and is manufactured with a tensile strength of 1960 N/mm².The galvanized coating provides corrosion protection through a zinc layer, making the rope suitable for outdoor use and humid operating conditions.
What is the construction, core type, and lay of this steel wire rope?
This steel wire rope is constructed with 6 strands. It is manufactured with a steel core, offering higher structural stability, improved resistance to crushing, and reliable performance under heavy loads and multi-layer winding conditions. It is manufactured with an ordinary right-hand lay (sZ), providing a balanced combination of flexibility, wear resistance, and stable handling. This is the most commonly used lay for general
