Dee Shackle POWERTEX PDSB

Powertex
  • Cr6+ Free

Dee type shackle PDSB is a high quality shackle intended for use in demanding environments.

It is supplied with a hexagon head safety bolt with nut and stainless steel cotter pin.

The shackle comply to EN 13889 and meets the performance requirements of US Federal Specification RR-C-271 Type IVB Class 3, Grade A.

Features:

  • Safe – All POWERTEX shackles are manufactured and tested in accordance to EN 13889
  • All bodies and bolts are marked with batch number for traceability
  • The body is forged in closed dies
  • All parts are made from alloy steel being quenched and tempered
  • All parts including bolts and nuts are hot dip galvanized for long life
  • High quality hot dip galvanization process giving an exclusive mat grey finish
  • Safety bolts and nuts are additionally painted in blue and red for quick and easy detection as original POWERTEX parts
  • Retaining pins made from stainless steel
  • Multilanguage user manuals
  • Material: Forged alloy steel, supplied with alloy safety bolt and nuts. Stainless steel retaining pins
  • Marking: According to standard, CE-marked, POWERTEX (PT or PTEX) , WLL, size, grade and batch number.
  • Temperature range: -20°C up to +200°C
  • Finish: All parts hot dip galvanized + head-bolt and nut additional powder painted.
  • Standard: EN 13889
  • Safety factor: 6:1.
  • Grade: 6

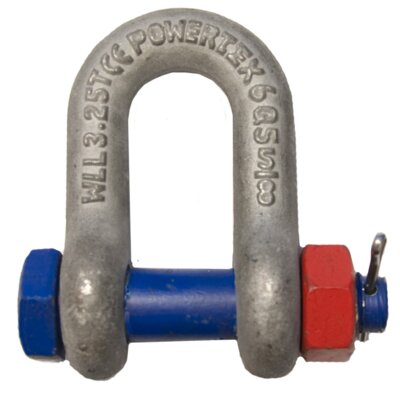

Dee Shackle POWERTEX PDSB with stamping on the body
Dee Shackle POWERTEX PDSB back
Dee Shackle POWERTEX PDSB diagonal

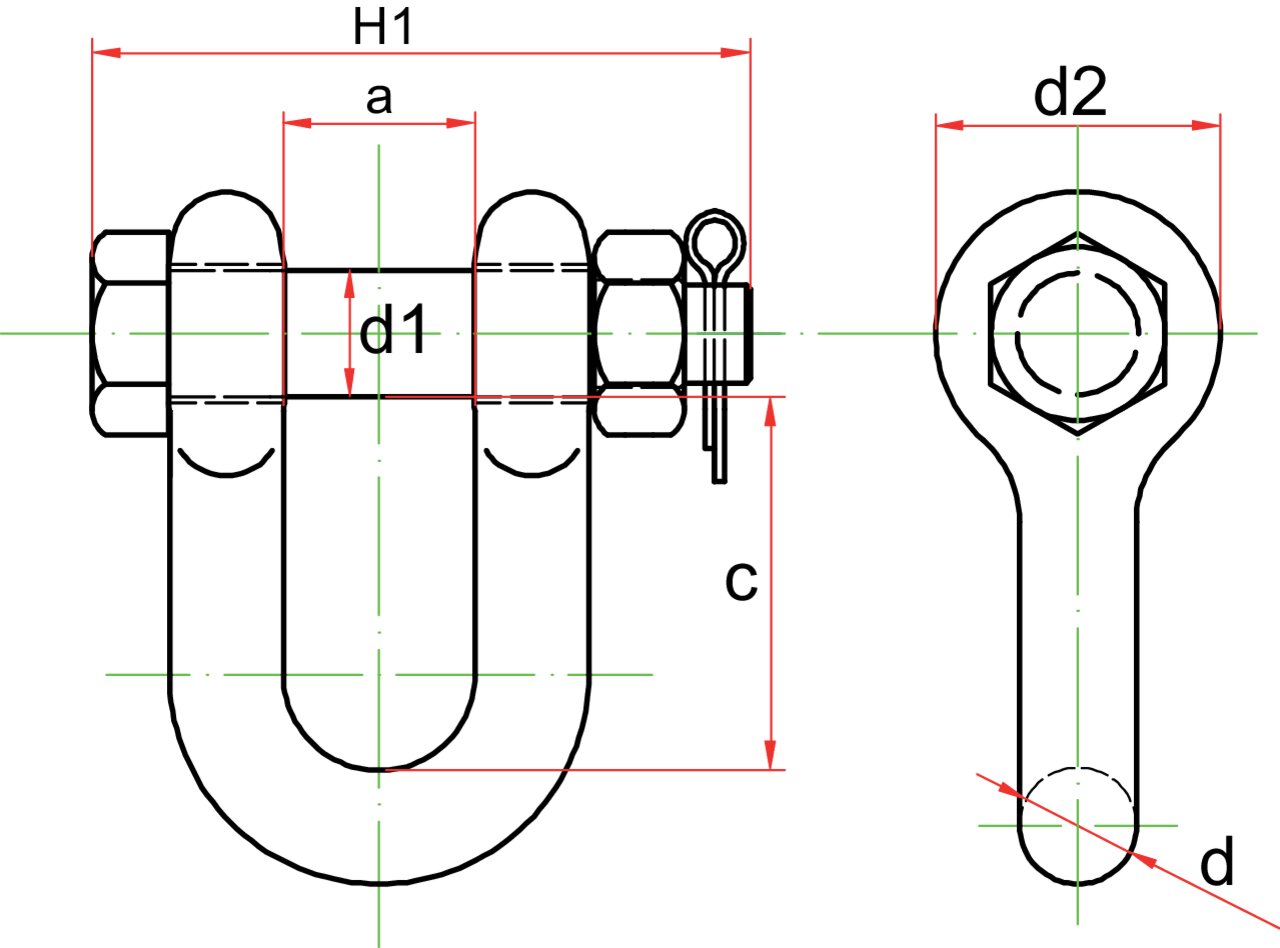

Dee Shackle POWERTEX PDSP measurements Dee Shackle drawing
Part Code Code WLL
ton		 Nominal size
In.		 Pin Ø d1 a*
mm		 c*
mm		 d
mm		 d2
mm		 H1
mm		 Weight
kg		 CAD
420100050850 1202 0,5 1/4 8 13 22 6,5 17,5 42,5 0,05
420100080850 1203 0,75 5/16 9,5 13,5 25,5 8 21 47 0,086
420100100850 1204 1 3/8 11,2 17 30,9 10 25 56,5 0,16
420100150850 1205 1,5 7/16 12,7 18,5 36,4 11 27 63,5 0,215
420100200850 1206 2 1/2 15,8 20,6 41,4 12,7 30,5 75,5 0,34
420100330850 1207 3,25 5/8 18,8 27 51 16 40 92 0,6
420100480850 1208 4,75 3/4 22 32 63 19 48 106 1,02
420100650850 1209 6,5 7/8 25 37 72 22 54 120 1,6
420100850850 1210 8,5 1 28 43,5 81,75 26,5 60 135 2,3
420100950850 1211 9,5 1-1/8 32 48 94 29 68 143 3,33
420101200850 1212 12 1-1/4 35 53 102 32 76 164 4,3
420101350850 1213 13,5 1-3/8 38 59 113,5 35 84 182 5,87
420101700850 1214 17 1-1/2 42 62 123 38 92 195 7,6
420102500850 1215 25 1-3/4 50 75 148 45 106 224 11,7
420103500850 1216 35 2 56 84 174,5 52 122 248 17,84
*Tolerance: +/- 5%
