Dee Shackle POWERTEX PDSP

Powertex
  • Cr6+ Free

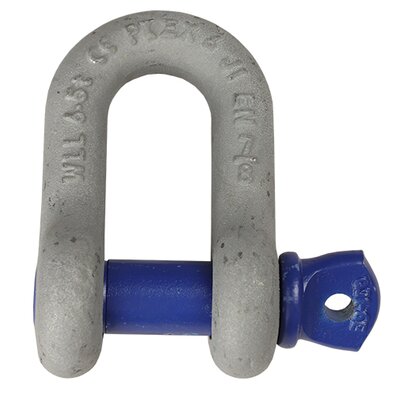

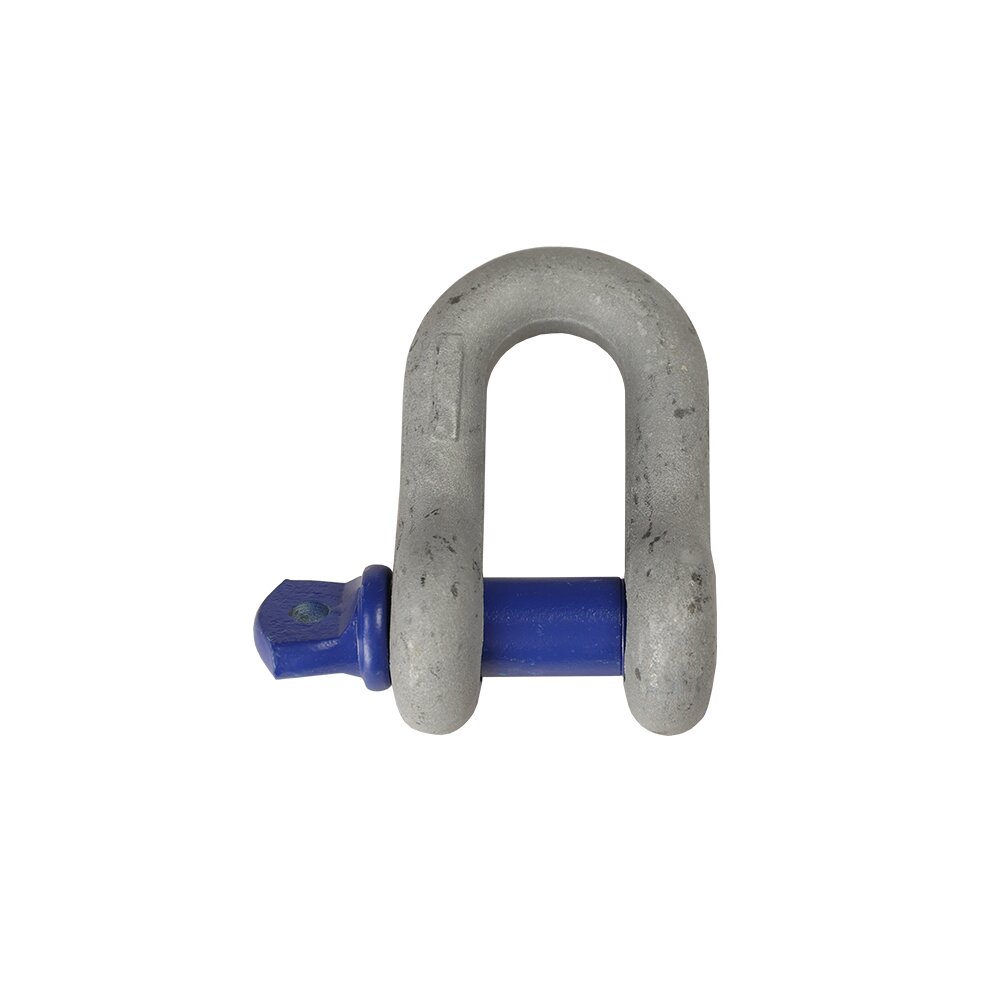

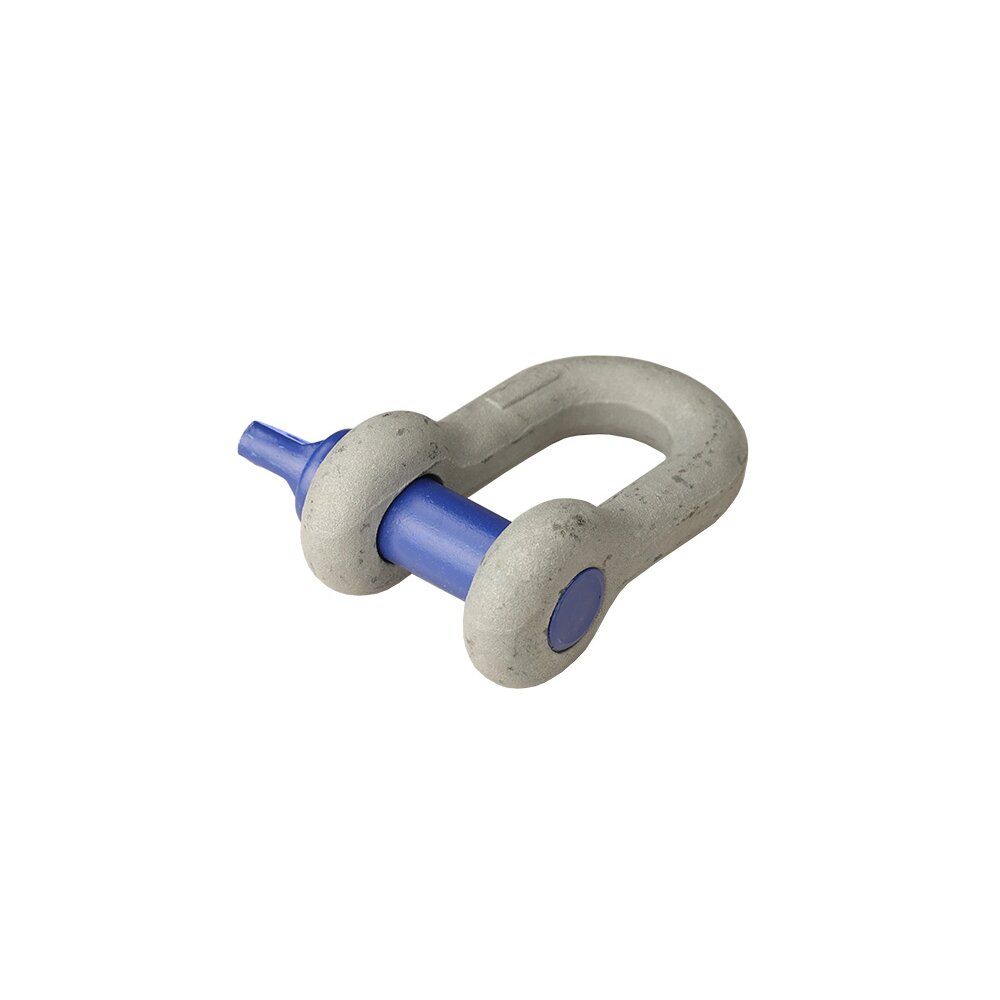

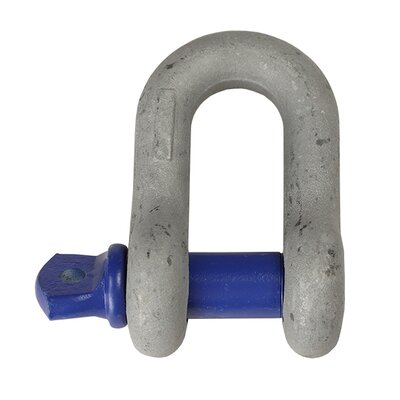

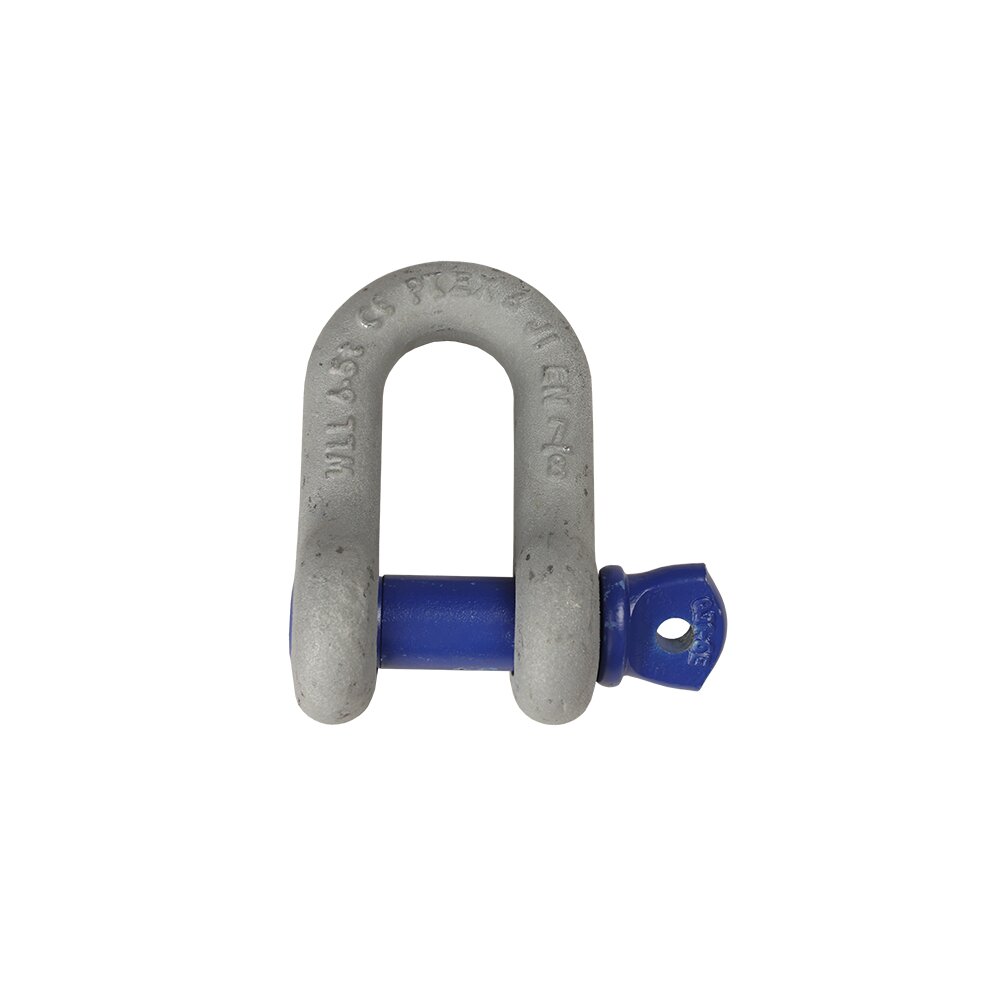

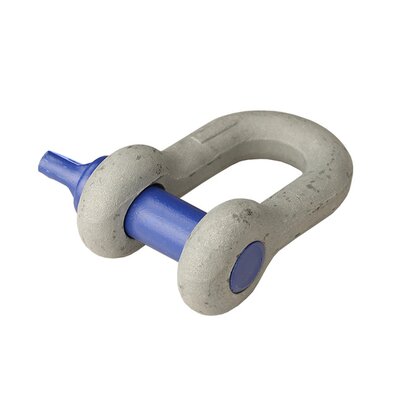

Dee type shackle PDSP is a high quality shackle intended to be used in demanding environments.

It is supplied with screw pin for quick and easy opening/closing.

The shackle comply to EN 13889 , AS 2741 and meets the performance requirements of US Federal Specification RR-C-271 Type IVB Class 2, Grade A.

Features:

  • Safe – All POWERTEX shackles are manufactured and tested in accordance to EN 13889
  • All bodies and bolts marked with batch number for traceability
  • The body is forged in closed dies
  • All parts are made from alloy steel being quenched and tempered
  • All parts including screw pins are hot dip galvanized for long life
  • High quality hot dip galvanization process giving an exclusive mat grey finish
  • Screw pins are additionally painted in blue for quick and easy detection as original POWERTEX parts
  • Multilanguage user manuals
  • Material: Forged alloy steel, supplied with screw pin.
  • Marking: According to standard, CE-marked, POWERTEX (PT or PTEX) , WLL, size, grade and batch number.
  • Temperature range: -40°C up to +200°C
  • Finish: All parts hot dip galvanized. Screw pin additional powder painted.
  • Standard: EN 13889
  • Safety factor: 6:1
  • Grade: 6
