  • The product is equipped with RFID chip
  • Cr6+ Free

POWERTEX PCB-S2OLP Chain block is a hoist of high quality which is durable and easy to operate using the ergonomic hand chain. The OLP hoists are factory equipped with Overload Protection device, which limits the maximum operating force that can be applied using the hand chain.

Features:

  • Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
  • Compact, lightweight construction.
  • Sprocket wheel equipped with needle bearings and drive shaft supported by needle bearing and slide bearing inside to ensure smooth and efficient operation
  • Safe, well covered automatic load reaction brake
  • Equipped with 2 brake pawls and 4 brake springs (double safety compared to EN 13157 requirement)
  • Fine calibrated European made COROLIM® protected load chain for smooth operation
  • The unique surface treatment gives excellent corrosion protection and quiet run
  • Swivel hooks at both ends makes in line positioning easy
  • Hooks are designed to open at overload instead of breaking
  • Hooks fitted with heavy duty steel safety latches
  • Hook have Deformation Check Dots forged into side for overload detection
  • RFID equipped (chip) for easy service and inspection
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each hoist
  • Spare parts available

Option:

  • Chain bag
  • Material: Durable all steel construction
  • Marking: According to standard, CE-marked, UKCA-marked, POWERTEX, Model, WLL, Chain, Serial number, User manual/QR code
  • Temperature range: -10°C up to +50°C
  • Finish: Red powder coated body and plated frame components
  • Standard: EN 13157, EN 818-7
  • Safety factor: 4:1
Håndkædetalje POWERTEX PCB-S2OLP

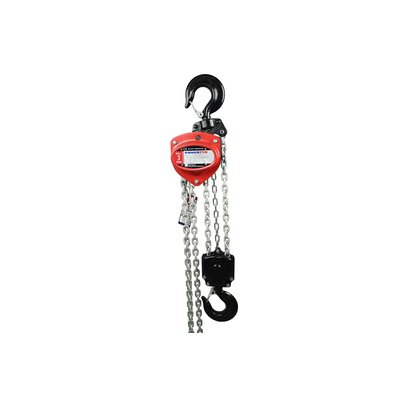

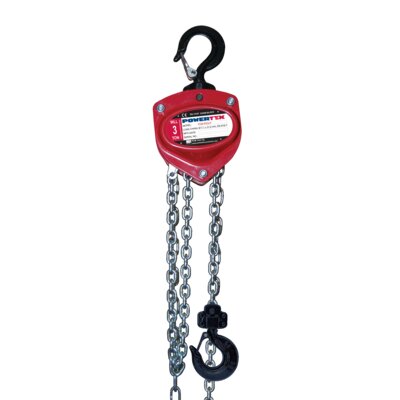

Chain Block POWERTEX PCB-S2OLP 3t front

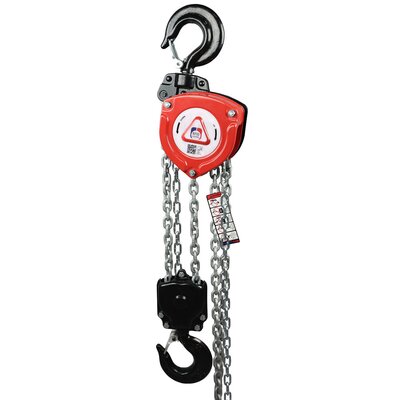

Chain Block POWERTEX PCB-S2OLP back

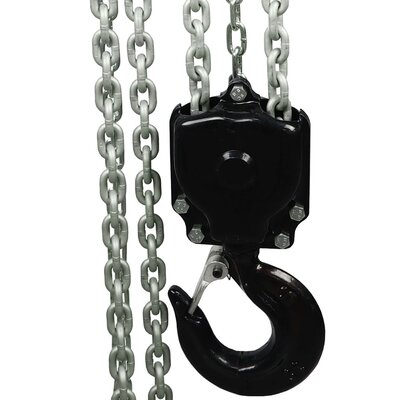

Close-up POWERTEX chain hoist hook

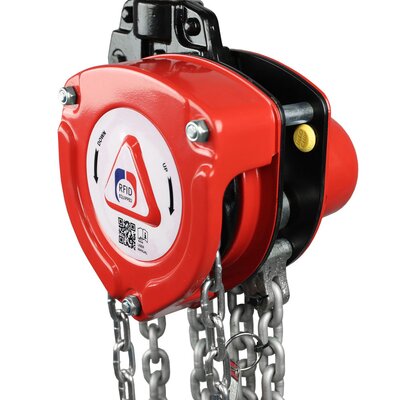

RFID chip on POWERTEX chain hoist
Overload protection device
POWERTEX chain bag
PCB-S2 swivel hook detail

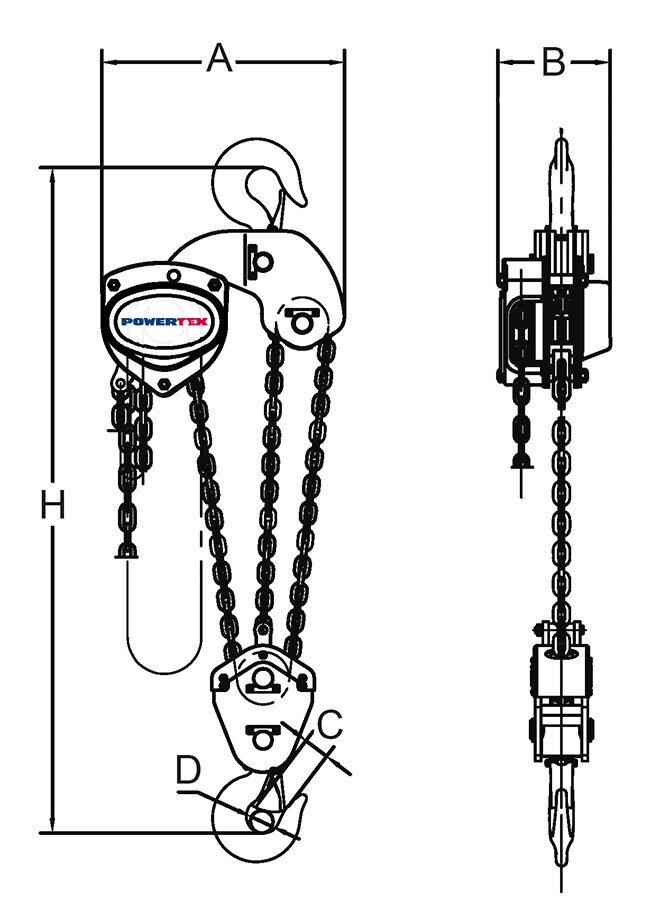

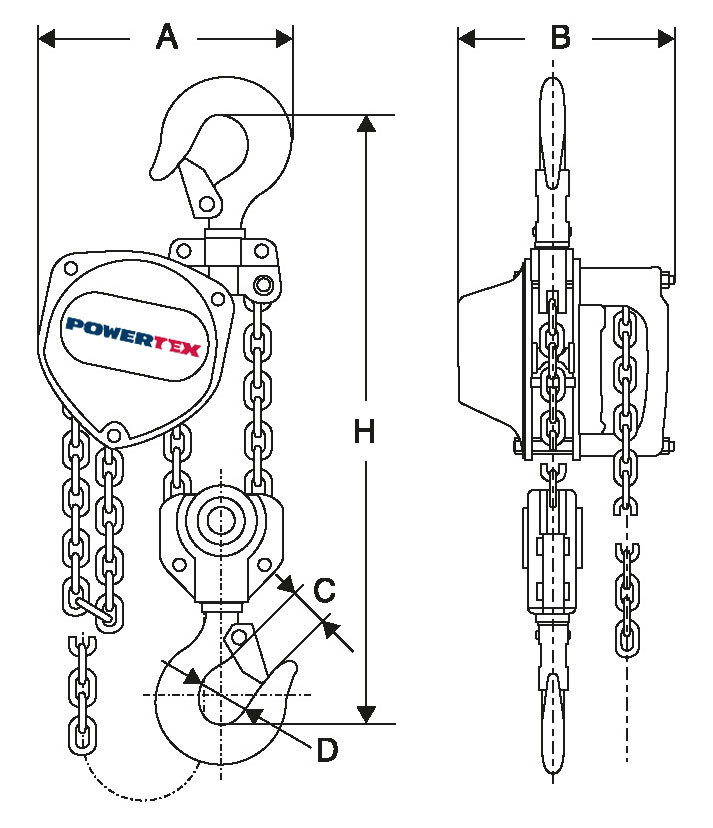

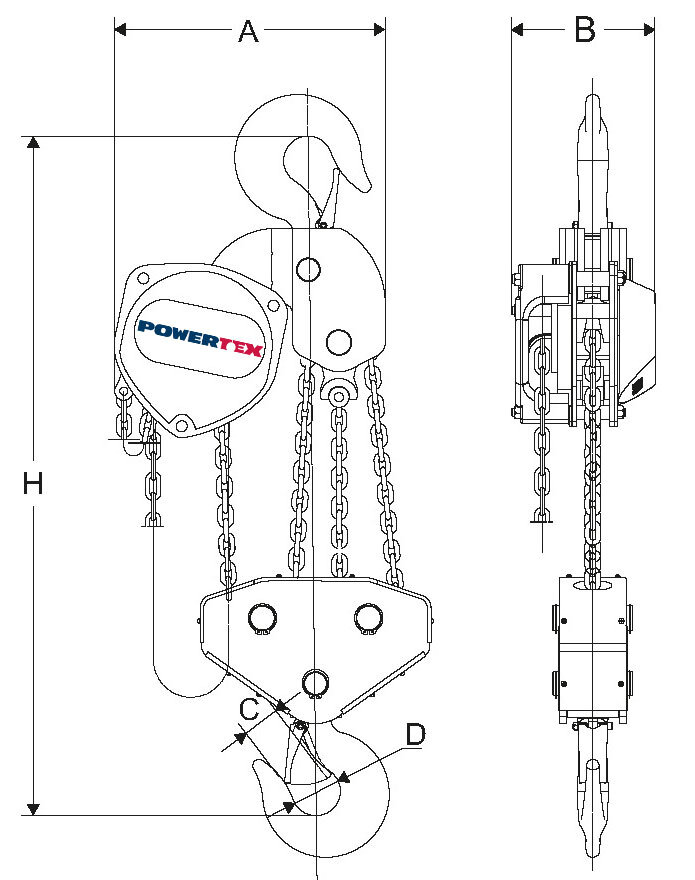

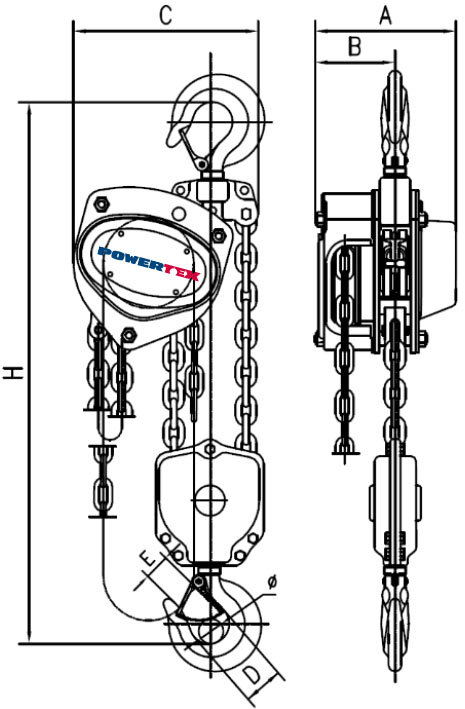

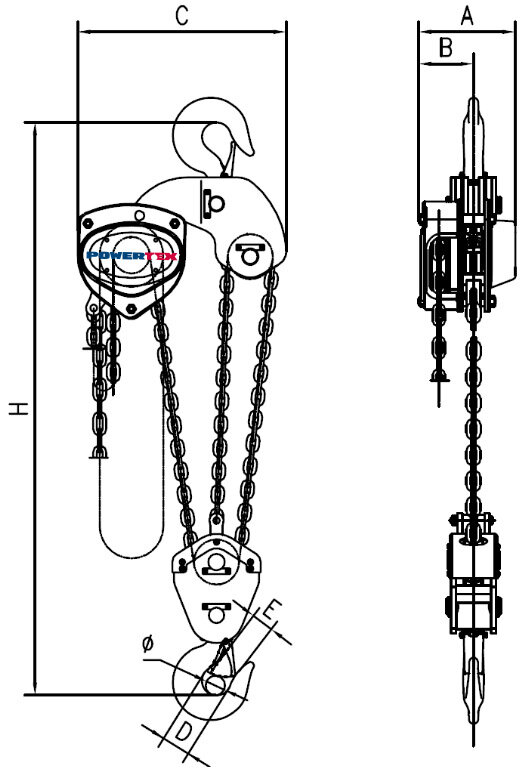

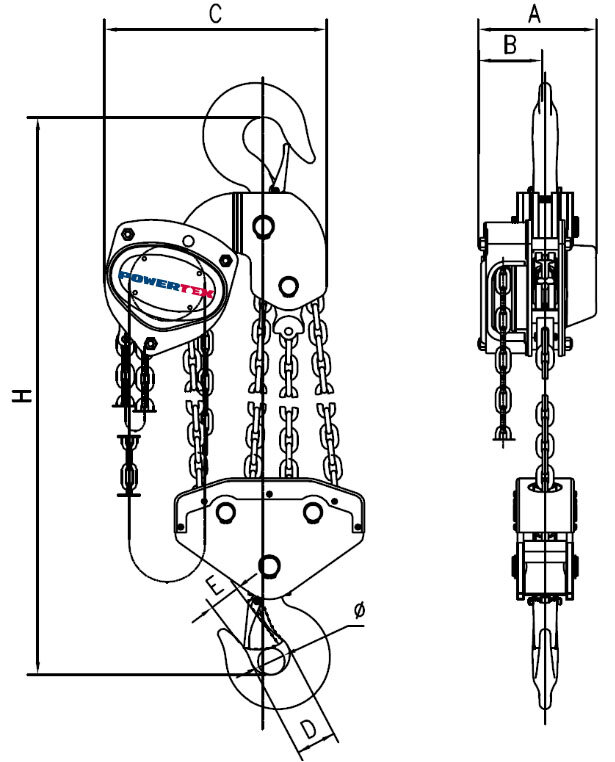

POWERTEX chain hoist measurements 0.25 to 2 tons PCB-S2 0,25-2,0t drawing POWERTEX Chain hoist measurements from 3 to 5 tons. PCB-S2 3,0-5,0t drawing POWERTEX chain hoist measurements 7.5 tons PCB-S2 7,5t drawing POWERTEX chain hoist measurements 10 ton PCB-S2 10t drawing
Part Code WLL
ton
Lifting height
m
Model Load chain
mm
Hand chain
mm
Number of falls Hand force max.
kg
A
mm
B
mm
C
mm
D
mm
H min
mm
Weight
kg
CAD
500100050300181 0,5 3 PCB-S2OLP/500KG 5,0 x 15,0 5,0 x 23,7 1 21,5 130 128 22 34 280 8,9
500100050600181 0,5 6 PCB-S2OLP/500KG 5,0 x 15,0 5,0 x 23,7 1 21,5 130 128 22 34 280 9,8
500100100300181 1 3 PCB-S2OLP/1000KG 6,3 x 19,0 5,0 x 23,7 1 29,1 150 145 26 39 330 11,7
500100100600181 1 6 PCB-S2OLP/1000KG 6,3 x 19,0 5,0 x 23,7 1 29,1 150 145 26 39 330 12
500100200300181 2 3 PCB-S2OLP/2000KG 8,0 x 24,0 5,0 x 23,7 1 36,2 185 175 35 49 385 18,9
500100200600181 2 6 PCB-S2OLP/2000KG 8,0 x 24,0 5,0 x 23,7 1 36,2 185 175 35 49 385 19,5
500100300300181 3 3 PCB-S2OLP/3000KG 7,1 x 21,0 5,0 x 23,7 2 34,7 220 158 37 50 510 22,8
500100300600181 3 6 PCB-S2OLP/3000KG 7,1 x 21,0 5,0 x 23,7 2 34,7 220 158 37 50 510 28,9
500100500600181 5 6 PCB-S2OLP/5000KG 9,0 x 27,0 5,0 x 23,7 2 40,8 255 183 43 60 615 36,3
500100500300181 5 3 PCB-S2OLP/5000KG 9,0 x 27,0 5,0 x 23,7 2 40,8 255 183 43 60 615 37,1
500100750300181 7,5 3 PCB-S2OLP/7500KG 9,0 x 27,0 5,0 x 23,7 3 41,8 430 189 47 67 690 50
500100750600181 7,5 6 PCB-S2OLP/7500KG 9,0 x 27,0 5,0 x 23,7 3 41,8 430 189 47 67 690 66,2
500101000300181 10 3 PCB-S2OLP/10000KG 9,0 x 27,0 5,0 x 23,7 4 42,8 360 183 47 65 820 92,8
500101000600181 10 6 PCB-S2OLP/10000KG 9,0 x 27,0 5,0 x 23,7 4 42,8 360 183 47 65 820 114,4

The handchain is as standard ½ m shorter than the lifting height
Other lifting heights on request
