Powertex

POWERTEX PLH-S2 Lever Hoist is a hoist of high quality which is durable and easy to operate using the ergonomic rachet lever. Compact, lightweight construction.

Features:

  • Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
  • Sprocket wheel equipped with needle bearings and drive shaft supported by needle bearing and slide bearing inside to ensure smooth and efficient operation
  • Safe, well covered automatic load reaction brake
  • Equipped with 2 brake pawls and 4 brake springs (double safety compared to EN 13157 requirement)
  • Fine calibrated European made COROLIM® protected load chain for smooth operation
  • The unique surface treatment gives excellent corrosion protection and quiet run
  • Swivel hooks at both ends makes in line positioning easy
  • Hooks are designed to open at overload instead of breaking
  • Hooks fitted with heavy duty steel safety latches
  • Hook have Deformation Check Dots forged into side for overload detection
  • RFID equipped (chip) for easy service and inspection
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each hoist
  • Spare parts available
  • Material: Durable all steel construction
  • Marking: According to standard, CE-marked, POWERTEX, Model, WLL,  Chain, Serial number, User manual/QR code
  • Temperature range: -10°C up to +50°C
  • Finish: Powder coated finish and plated frame components
  • Standard: EN 13157, EN 818-7
  • Safety factor: 4:1

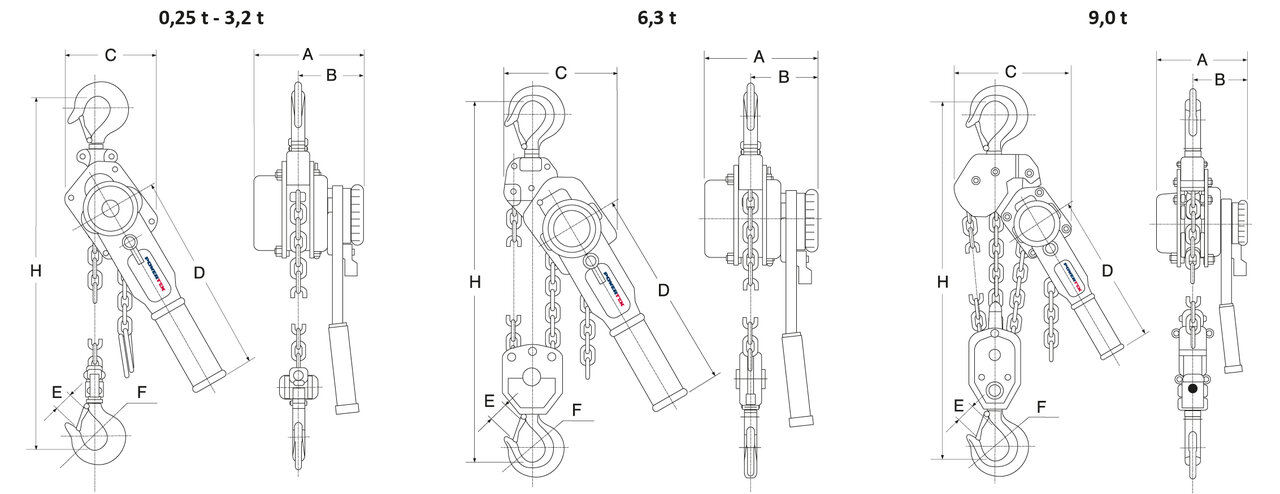

Part Code WLL
ton
Model Load chain
mm
Number of falls Hand force max.
kg
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
H min
mm
Weight
kg
16.20PLHS20025015 0.25 PLH-S2/250KG 4,0 x 12,0 1 28.2 100 70 86 163 20 31 235 2.7
16.20PLHS20050015 0.5 PLH-S2/500KG 5,0 x 15,0 1 24.8 150 90 118 253 22 32 310 5.2
16.20PLHS20080015 0.8 PLH-S2/800KG 5,6 x 17,0 1 26.5 158 98 132 273 26 36 340 6.6
16.20PLHS20160015 1.6 PLH-S2/1600KG 7,1 x 21,0 1 29.5 185 111 145 378 29 43 400 11
16.20PLHS20320015 3.2 PLH-S2/3200KG 10,0 x 28,0 1 33.5 212 124 198 418 37 50 520 19.9
16.20PLHS20630015 6.3 PLH-S2/6300KG 10,0 x 28,0 2 37 212 124 230 418 43 53 640 24.6
16.20PLHS20900015 9 PLH-S2/9000KG 10,0 x 28,0 3 42 212 124 338 418 44 67 730 50
Last 3 digits in the part code indicate the lifting height. For example 015 = 1,5 m
Weight for hoist with 1,5 m lift.
