Ropetex
  • Ordinary right hand lay
  • Ordinary left hand lay
  • Galvanized
  • Bright finish
  • Not to be used with swivel

ROPETEX S65 (and S16) steel wire ropes are the most commonly used type of steel wire ropes in the range from 8 to 38 mm. Both can be used for a variety of applications. Available as S65 with Independent Wire Rope Core (IWRC) or as S16 with Fiber Core (FC). S65 is less flexible but has higher strength and is more dimensionally stable, especially when used on sheaves or drums. S16 is more flexible but has a lower breaking strength.

Typical applications:

  • Wire rope sling
  • Winch rope
  • Hoisting installations
  • Lifting applications
  • Lifting rope
  • Mooring rope
  • Towing rope
  • Cranes
  • Hoists

Available in Right Hand Ordinary Lay (RHOL) and Left Hand Ordinary Lay (LHOL).

Alternatives:

  • ROPETEX S16 is a very comparable rope with a Fiber Core (FC) instead of an Independent Steel Wire Rope Core (IWRC);

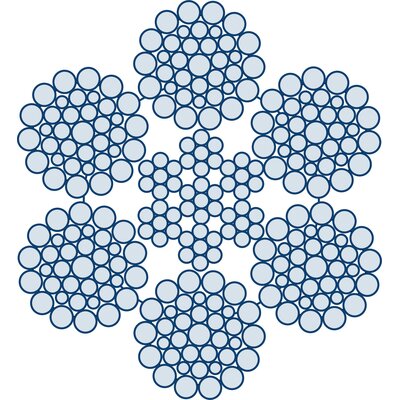

  • Rope construction: 6x36WS-IWRC
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C, for operating temperatures between 100°C and 200°C reduce MBF by minus 10 %
  • Standard: EN 12385-4
  • Fill factor: 0,58
  • General use Wire for general use
  • Winch rope Wire for winches
  • Crawler crane Steel wire rope for use in crawler crane
  • Piling crane Wire for piling crane
  • Overhead cranes For the use with overhead crane
  • STS crane Wire for STS crane
  • Straddle carrier Wire for straddle-carrier
  • RTG Wire for RTG-crane
  • Ladle crane Wire for ladle crane
  • Mobile port crane Wire for mobile port crane
  • Loading crane Wire for loading crane
  • Container crane For use with container crane
  • Offshore crane Wire rope for offshore crane
  • Tower crane Wire rope for tower crane
  • Stay rope Stay rope
  • Slings Sling wire rope
Stee wire rope ROPETEX S65
Part Code Rope diameter Steel area
mm²
Min. breaking force
kN
1960 N/mm²
Weight
kg/100m
101100804270021 8 29,4 44,7 26,2
101100904270021 9 37,3 56,5 33,1
101101004270021 10 46 69,8 40,9
101101104270021 11 55,7 84,4 49,5
101101204270021 12 66,2 100 58,9
101101304270021 13 77,7 118 69,1
101101403270021 14 90,2 137 80,2
101101603270021 16 118 179 105
101101704270021 17 133 202 118
101101803270021 18 149 226 133
101101903270021 19 166 252 148
101102003270021 20 184 279 164
101102203270021 22 223 338 198
101102403270021 24 265 402 236
101102603270021 26 311 472 276
101102803270021 28 361 547 321
101103003270021 30 414 629 368
101103203270021 32 471 715 419
101103404270021 34 532 807 473
101103603270021 36 596 904 530
101103804270021 38 664 1 008 591
