Ropetex
  • Not for lifting
  • Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel

ROPETEX S49 is a wire rope for general purposes like hanging signs, control and signaling devices, but not for lifting. It's most used in small diameters up to 6 mm. ROPETEX S49 is equipped with a Steel Core (WSC).

ROPETEX S42 is the same rope but has a Fibre Core (FC) and is therefore more flexible.

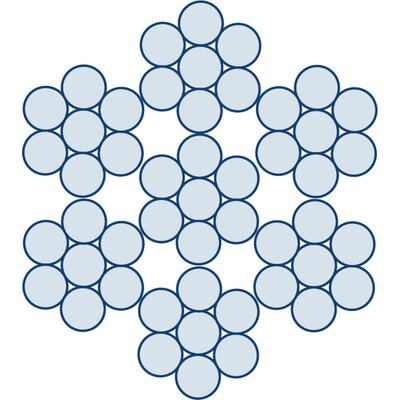

  • Rope construction: 6x7-WSC (7x7)
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C, for operating temperatures between 100°C and 200°C reduce MBF by minus 10 %.
  • Standard: EN 12385-4
  • Warning: Not to be used for lifting purposes
  • Fill factor: 0,55
  • General use Wire for general use
Steel Wire Rope ROPETEX S49
Part Code Rope diameter
mm
Steel area
mm²
Min. breaking force
kN
1960 N/mm²
Weight
kg/100m
101100104270040 1 0,43 0,76 0,38
101100154270040 1,5 0,97 1,71 0,86
101100204270040 2 1,73 3,04 1,54
101100254270040 2,5 2,7 4,75 2,4
101100304270040 3 3,89 6,84 3,46
