Ropetex
  • Not for lifting
  • Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel

ROPETEX S42 is a wire rope for general purposes like hanging signs, small stays and in agriculture, but not for lifting. It's most used in small diameters up to 6 mm. ROPETEX S42 is equipped with a Fibre Core (FC).

ROPETEX S49 is the same rope but has a Wire Strand Core (WSC).

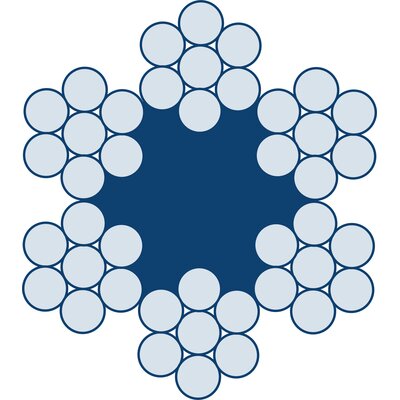

  • Rope construction: 6x7-FC
  • Marking: According to standard
  • Temperature range: -40°C up to +100°C
  • Standard: EN 12385-4
  • Warning: Not to be used for lifting purposes
  • Fill factor: 0,47
  • General use Wire for general use
  • Stay rope Stay rope
  • Agriculture and livestock Wire for agriculture
Steel Wire Rope ROPETEX S42
Part Code Rope diameter Steel area
mm²
Min. breaking force
kN
1960 N/mm²
Weight
kg/100m
101100204270030 2 1,48 2,6 1,38
101100304270030 3 3,32 5,86 3,11
101100404270030 4 5,9 10,4 5,52
101100504270030 5 9,23 16,3 8,63
101100604270030 6 13,3 23,4 12,4
