Ropetex
  • Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel

ROPETEX S33 is equipped with a Wire Strand Core (WSC) which gives the rope a good strength and a reasonable balance between fatigue and wear resistance. ROPETEX S33 can be used for applications where the rope runs over sheaves and pulleys. Also for cranes with low heights, when rotation resistant rope is not needed. The construction has good resistance to crushing when spooled on a drum.

Typical applications:

  • garage doors
  • industrial doors
  • lifting applications
  • slings
  • winch ropes
  • stay ropes

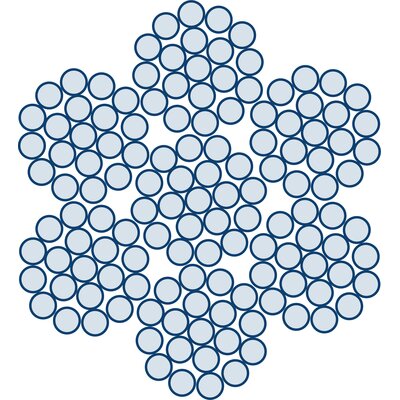

  • Rope construction: 6x19M-WSC
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C, for operating temperatures between 100°C and 200°C reduce MBF by minus 10%
  • Standard: EN 12385-4
  • Fill factor: 0,53
  • RCN: 04
  • General use Wire for general use
  • Winch rope Wire for winches
  • Stay rope Stay rope
  • Overhead cranes For the use with overhead crane
  • Agriculture and livestock Wire for agriculture
  • Slings Sling wire rope
Steel Wire Rope ROPETEX S33
Part Code Rope diameter Steel area
mm²
Min. breaking force
kN
1960 N/mm²
Weight
kg/100m
101100304270060 3 3,76 6,39 3,43
101100404270060 4 6,69 11,4 6,1
101100504270060 5 10,5 17,7 9,53
101100604270060 6 15 25,5 13,7
101100704270060 7 20,5 34,8 18,7
101100804270060 8 26,8 45,4 24,4
101100904270060 9 33,9 57,5 30,9
101101004270060 10 41,8 71 38,1
101101104270060 11 50,6 85,9 46,1
101101204270060 12 60,2 102 54,9
101101304270060 13 70,6 120 64,4
