Ropetex
  • Ordinary right hand lay
  • Galvanized
  • Rotation resistant
  • Not to be used with swivel

ROPETEX S18 is a semi-rotation resistant steel wire rope consisting of two layers of strands and a (steel) wire strand core. As the outer strands are closed in the opposite direction of the inner strands this rope is considered as semi-rotation resistant rope. ROPETEX S18 should not be used with a swivel and for unguided single part in great lifting height, with reference to the rotational properties (see manual).
ROPETEX S18 is mostly used in diameter from 3 to 8 mm in several lifting applications like truck cranes, overhead cranes, jib cranes, electrical hoists and all other applications where a semi-rotation resistant wire rope is good enough.
If you are searching for a rotation-resistant steel wire rope, look at ROPETEX S55.

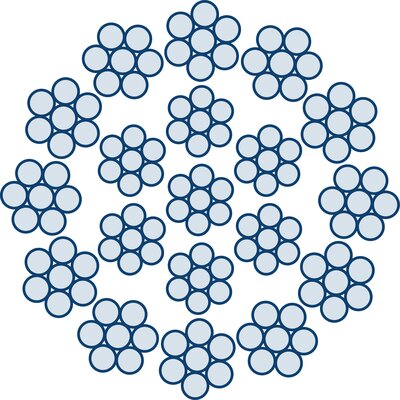

  • Rope construction: 18x7-WSC
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C, for operating temperatures between 100°C and 200°C reduce MBF by minus 10 %
  • Standard: EN 12385-4
  • Note: Ropes of the class 35x7 have to be replaced always by ropes of the same/comparable class and never by ropes of class 18x7. Whereas ropes of the class 18x7 can be replaced also by ropes of 35x7 from a technical point of view.
  • Fill factor: 0,55
  • RCN: 23-1
  • Truck crane Wire for truck crane
  • Jib crane Wire for jib crane
  • Overhead cranes For the use with overhead crane
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1960 N/mm²
Weight
kg/100m
102100304270011 3 3,9 5,79 3,61
102100404270011 4 6,9 10,3 6,42
102100504270011 5 10,8 16,1 10
102100604270011 6 15,6 23,1 14,4
102100704270011 7 21,2 31,5 19,6
102100804270011 8 27,7 41,1 25,7
