Ropetex
  • Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel

ROPETEX S14 is a popular choice of steel wire rope in diameters from 3 to 12 mm. ROPETEX S14 is equipped with a Fiber Core (FC), which makes the rope very flexible with reasonable strength.

ROPETEX S14 can be used for applications where the rope runs over sheaves and pulleys. Also for cranes with low heights, when rotation resistant rope is not needed. ROPETEX S33 may be a better choice because it is equipped with a Wire Strand Core (WSC) which gives it higher strength and more resistance to crushing.

Typical applications:

  • Garage doors
  • Industrial doors
  • Lifting applications
  • Slings

Alternatives:

  • ROPETEX S33 is the same rope but with a Wire Strand Core instead of a Fibre Core, offering a higher strength but slightly less flexibility;
  • ROPETEX S16 offers comparable features as S14 but in diameter range 8-38 mm.

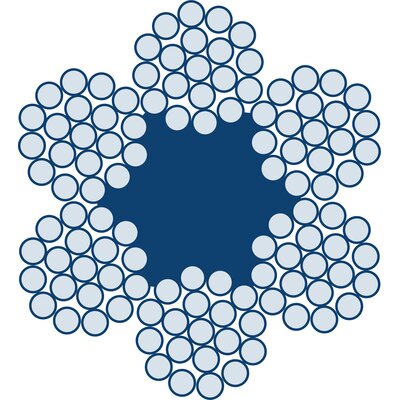

  • Rope construction: 6x19M-FC
  • Marking: According to standard
  • Temperature range: -40°C up to +100°C
  • Standard: EN 12385-4
  • Fill factor: 0,45
  • RCN: 04
  • General use Wire for general use
  • Overhead cranes For the use with overhead crane
  • Slings Sling wire rope
ROPETEX S14
Part Code Rope diameter
mm
Steel area
mm²
Min. breaking force
kN
1770 N/mm²
Min. breaking force
kN
1960 N/mm²
Weight
kg/100m
101100304250050 3 3,21 4,89 5,42 3,11
101100404250050 4 5,71 8,69 9,63 5,54
101100504250050 5 8,93 13,6 15 8,65
101100604250050 6 12,9 19,6 21,7 12,5
101100654250050 6,5 15,1 23 27,4 14,6
101100704250050 7 17,5 26,6 29,5 17
101100804250050 8 22,8 34,8 38,5 22,1
101101004250050 10 35,7 54,3 60,2 34,6
101101204250050 12 51,4 78,2 86,6 49,8
101101404250050 14 70 107 118 67,8
