• Cr6+ Free

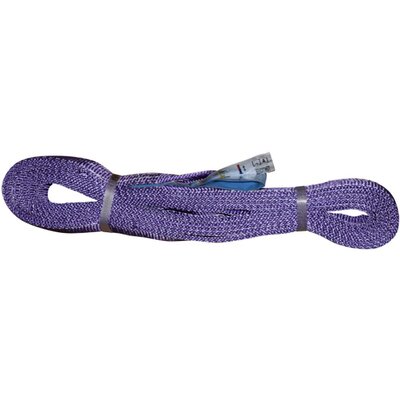

POWERTEX Endless webbing sling PWS are made from high strength polyester yarn.

The PWS slings are color coded for quick and easy identification of the Working load limit.

Only standard slings with full ton WLL are shown in the chart, but PWS slings can be delivered with any WLL and length on request.

  • Safe – All Powertex PWS standard slings are made from high strength industrial polyester and tested in accordance to EN 1492-1
  • Flat woven webbing
  • Each slings carry a blue label giving correct WLL for different load connection methods and angles
  • Each sling is marked with a unique serial number for safe sling registration
  • Year/Month calendar printed on the label where next inspection date can be marked or punched
  • All slings carry a white label showing pictogram with important user warning instructions
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each box

Chemical resistance: Resistant to most acids, but not strong alkalizes.
Stretch at working load: 2-3%.
Length tolerance: Nominal length (EWL) ± 3%.

  • Material: Polyester
  • Marking: According to standard, CE-marked, POWERTEX, WLL, EWL, manufacturing year, batch number, sling’s unique serial number, QR code, Inspection calendar, user warning instructions
  • Temperature range: -40°C up to +100°C.
  • Standard: EN 1492-1
  • Note: According to EN 1492-1:2000+A1:2008: D.3.7: Slings should be protected from edges, friction and abrasion, whether from the load or the lifting appliance. Where reinforcements and protection against damage from edges and/or abrasion is supplied as part of the sling, this should be correctly positioned. It may be necessary to supplement this with additional protection.
  • Safety factor: 7:1
Endless Webbing Sling POWERTEX PWS comes in variations of lengths and strengths
POWERTEX PWS Endless webbing sling are made from high strength polyester yarn.

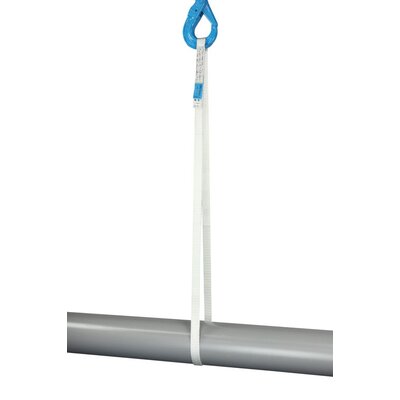

Endless webbing sling PWS 0.5t

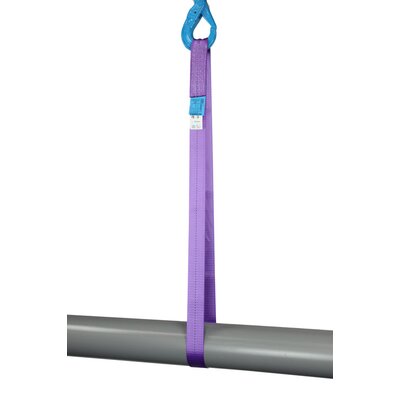

Endless webbing sling PWS 1t
High quality quality flat woven, colour coded endless webbing slings.

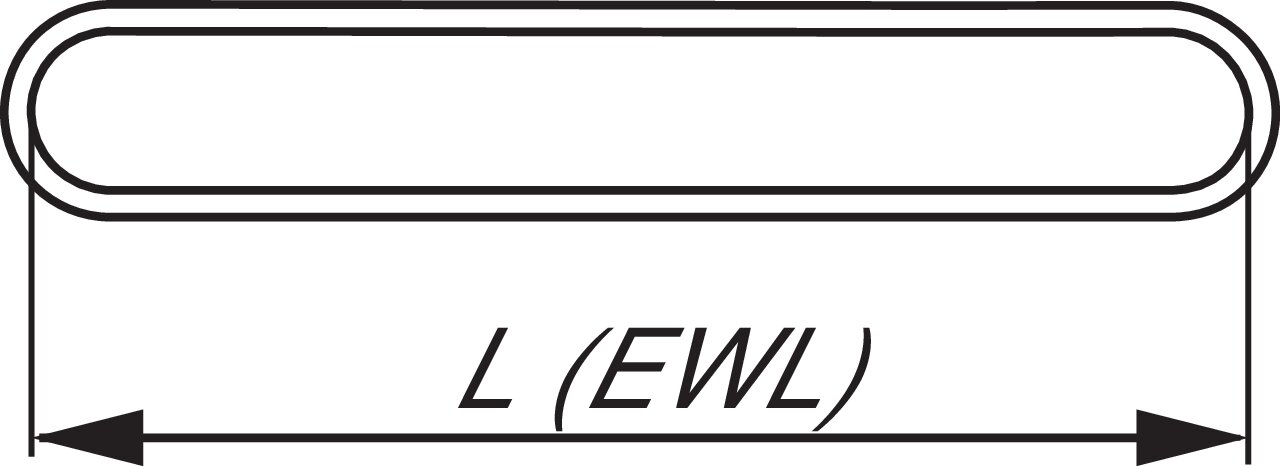

POWERTEX PRS round sling effective work length measurements Effective Working Length drawing
Part Code WLL
341100050100210 0,5 -
341100100050210 1 -
Other dimensions, WLL and special length on request.
