• Not for lifting
  • Cr6+ Free

Wire rope clips for rigging of static loads.

  • Material: Stainless steel AISI 316
  • Marking: According to standard, Recommended rope size in mm
  • Finish: Polished surface
  • Standard: DIN 741
  • Note: Follow the fitting instruction of wire rope clip drawing
  • Warning: Not for lifting!
    Powertex Wire Rope U-Bolt Clip
    Fitting instruction of wire rope clip

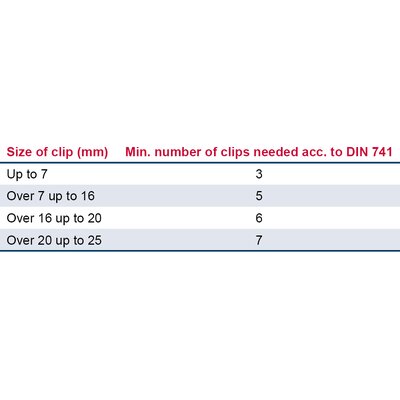

    Number of clips needed acc. to DIN 741
    Wire Rope U-Bolt Clip POWERTEX drawing Wire Rope U-Bolt Clip POWERTEX PC316 drawing
    Part Code Code Rope diameter D
    mm
    A
    mm
    B
    mm
    C
    mm
    E
    mm
    F
    mm
    G
    mm
    Weight
    kg
    CAD
    121200200240 PC316-2 2 M3 16 9 8 7 10 15 0,007
    121200300240 PC316-3 3 M4 21 10 10 9 12 17 0,011
    121200400240 PC316-4 4 M4 21 10 10 10 12 20 0,013
    121200500240 PC316-5 5 M5 23 10 10 11 13 21 0,015
    121200600240 PC316-6 6 M5 26 11 12 13 15 24 0,021
    121200800240 PC316-8 8 M6 30 15 14 15 19 29 0,038
    121201000240 PC316-10 10 M8 34 17 15 20 22 37 0,064
    121201200240 PC316-12 12 M8 38 20 18 22 22 37 0.093
    121201300240 PC316-13 13 M10 40 21 18 24 30 47 0,138
    121201600240 PC316-16 16 M12 50 26 25 29 33 54 0,22
    121201900240 PC316-19 19 M12 54 30 29 32 44 63 0,28
    121202200240 PC316-22 22 M14 61 34 33 34 44 81 0,405
    121202500240 PC316-25 25 M14 65 37 35 41 45 86 0,49

    Download CAD

    Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
