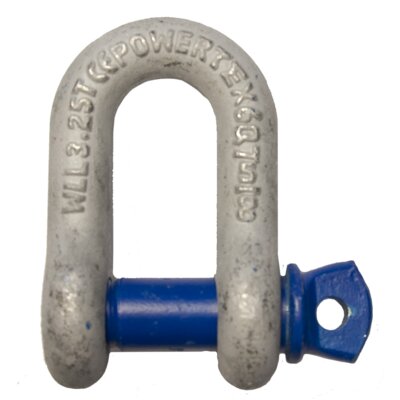

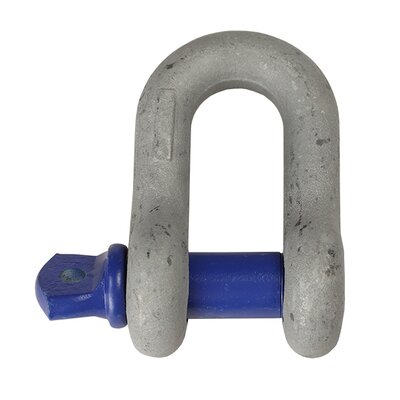

Dee Shackle POWERTEX PDSP

Powertex
  • Cr6+ Free

Dee type shackle PDSP is a high quality shackle intended to be used in demanding environments.

It is supplied with screw pin for quick and easy opening/closing.

The shackle comply to EN 13889 and meets the performance requirements of US Federal Specification RR-C-271 Type IVB Class 2, Grade A.

Features:

  • Safe – All POWERTEX shackles are manufactured and tested in accordance to EN 13889
  • All bodies and bolts marked with batch number for traceability
  • The body is forged in closed dies
  • All parts are made from alloy steel being quenched and tempered
  • All parts including screw pins are hot dip galvanized for long life
  • High quality hot dip galvanization process giving an exclusive mat grey finish
  • Screw pins are additionally painted in blue for quick and easy detection as original POWERTEX parts
  • Multilanguage user manuals
  • Material: Forged alloy steel, supplied with screw pin.
  • Marking: According to standard, CE-marked, POWERTEX (PT or PTEX) , WLL, size, grade and batch number.
  • Temperature range: -20°C up to +200°C
  • Finish: All parts hot dip galvanized. Screw pin additional powder painted.
  • Standard: EN 13889
  • Safety factor: 6:1
  • Grade: 6
Dee type shackle supplied with screw pin. High quality shackle for demanding environments. Grade 6.

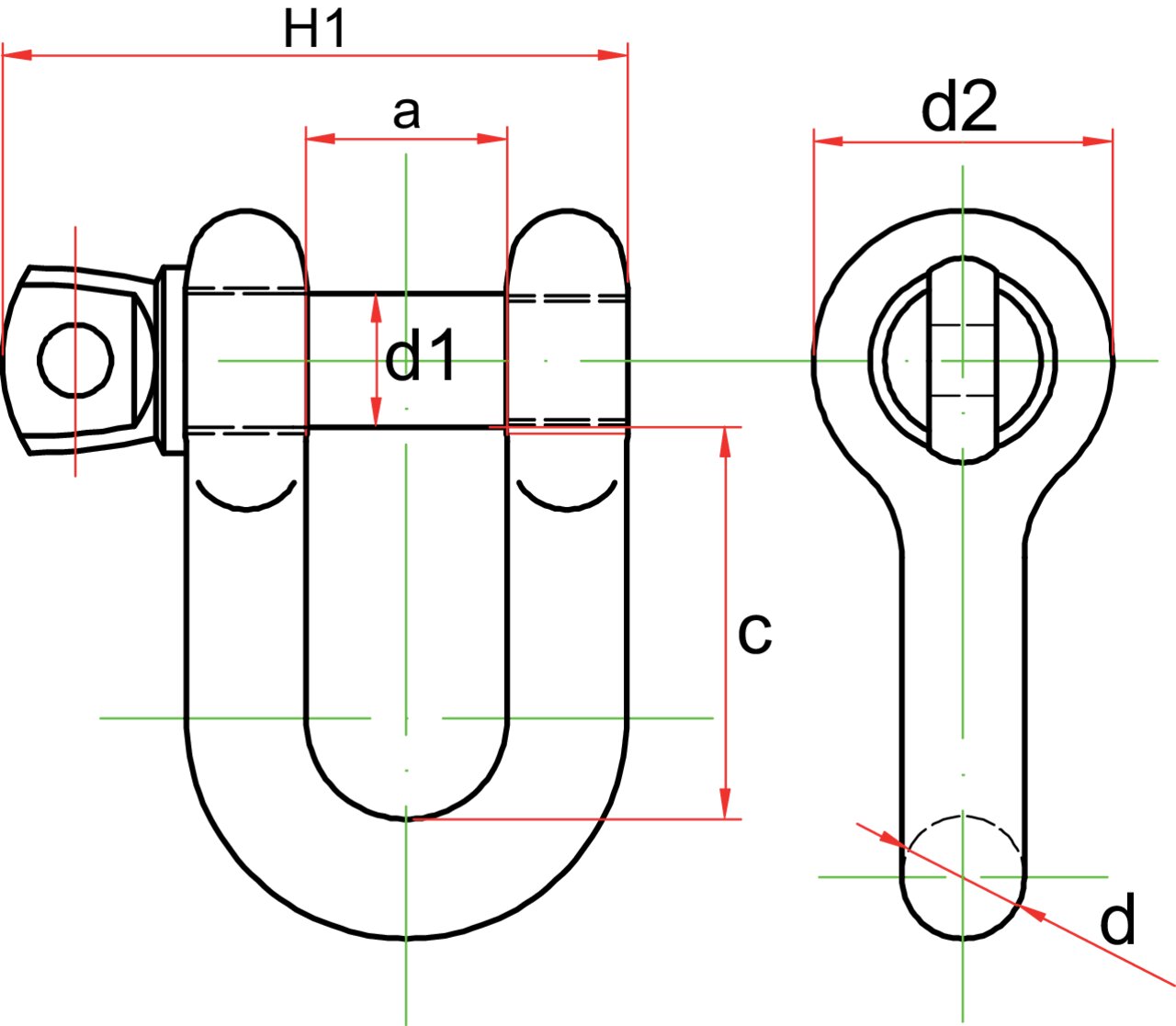

POWERTEX Shackle PDSP measurements. Dee Shackle PDSP - Screw Pin drawing
Part Code Code WLL
ton		 Nominal size
In.		 Pin Ø d1 a*
mm		 c*
mm		 d
mm		 d2
mm		 H1
mm		 Weight
kg		 CAD
11.30PDSP00050 1302 0,5 1/4 8 13 22 6,5 17,5 38 0,042
11.30PDSP00075 1303 0,75 5/16 9,5 13,5 25,5 8 21 42,5 0,068
11.30PDSP00100 1304 1 3/8 11,2 17 30,9 10 25 51,5 0,13
11.30PDSP00150 1305 1,5 7/16 12,7 18,5 36,4 11 27 58 0,185
11.30PDSP00200 1306 2 1/2 15,8 20,6 41,4 12,7 30,5 67 0,29
11.30PDSP00325 1307 3,25 5/8 19 27 51 16 40 85 0,58
11.30PDSP00475 1308 4,75 3/4 22 32 63 19 48 98,5 0,93
11.30PDSP00650 1309 6,5 7/8 25 37 72 22 54 114 1,45
11.30PDSP00850 1310 8,5 1 28 43,5 81,75 26,5 60 129,5 2,06
11.30PDSP00950 1311 9,5 1-1/8 32 48 94 29 68 144 2,91
11.30PDSP01200 1312 12 1-1/4 35 53 102 32 76 157 4,15
11.30PDSP01350 1313 13,5 1-3/8 38 59 113,5 35 84 171 5,5
11.30PDSP01700 1314 17 1-1/2 42 62 123 38 92 186 6,97
11.30PDSP02500 1315 25 1-3/4 50 75 148 45 106 227 11,22
*Tolerance: +/- 5%
