Aluminum Lever Hoist type PALH-S1

Home / Products / POWERTEX Lifting / Hoist, Trolley & Beam Clamp / Aluminum Lever Hoist POWERTEX PALH-S1

Extremely small and lightweight aluminum lever hoist. It weighs only approximately 50% of a similar standard lever hoist. The hoist can be used for lifting as well as pulling. 250 kg-750 kg hoists are delivered with a handy carrying/belt bag.

Features:

Safe - Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
Compact, lightweight construction with aluminum covers
Durable construction with powder coated finish and plated frame parts
Lever hoist is chromium 6 free
Sealed bearings inside maximize efficiency and serviceability.
Sprocket wheel surface treated against wear and corrosion
Safe and well covered automatic load reaction break
Equipped with double brake pawls
Fine calibrated European made load chain for smooth operation
Swivel hooks at both ends makes in line positioning easy
Hooks are designed to open at overload instead of breaking
Hooks fitted with heavy duty steel safety latches
Hook have Deformation Check Dots forged into side for overload detection
RFID equipped (chip) for easy service and inspection
QR code for on-site access to Multilanguage user manuals
Test certificate and Declaration of Conformity enclosed with each hoist
14 language User manual enclosed with each hoist
Spare parts available

Material: Durable aluminium/steel construction, rubber handle
Marking: According to standard, CE-marked, POWERTEX, Model, WLL, Chain type , Serial number, User manual/QR code
Temperature range: -10°C up to +50°C
Finish: White powder coated body, side plate assembly and hooks black powder coated
Standard: EN 13157, EN 818-7

Safety factor: 4:1

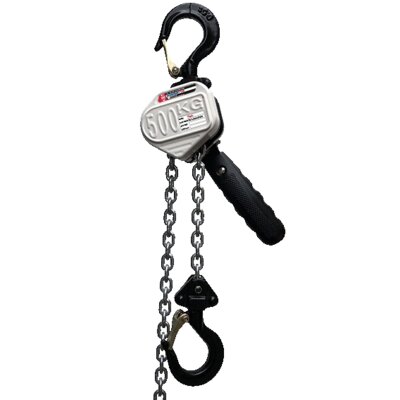

Aluminum Lever Hoist POWERTEX PALH-S1

Aluminum Lever Hoist POWERTEX PALH-S1 back

RFID mounted on the lever hoist

QR code for on-line access to user manual

Lever hoist hanging in the workshop

Aluminum Lever Hoist POWERTEX PALH-S1 seen from above

Bag for 250 kg - 750 kg hoists

Swivel hook for the small hoists

Botttom hook for the bigger hoists

Aluminum Lever Hoist POWERTEX PALH-S1 drawing

Part Code	WLL ton	Lifting height m	Model	Load chain mm	Number of falls	Hand force max. kg	a mm	b mm	c mm	d mm	e mm	f mm	g mm	s mm	t mm	Weight kg
500500030150460	0,25	1,5	PALH-S1/250KG	3 x 9	1	29	87	68	200	145	55,5	35,5	21	32	11	1,45
500500030300460	0,25	3	PALH-S1/250KG	3 x 9	1	29	87	68	200	145	55,5	35,5	21	32	11	1,95
500500050150460	0,5	1,5	PALH-S1/500KG	4 x 12	1	27	100,5	81	250	160	62,5	42	24,5	34,5	12	2,5
500500050300460	0,5	3	PALH-S1/500KG	4 x 12	1	27	100,5	81	250	160	62,5	42	24,5	34,5	12	3,3
500500080150460	0,75	1,5	PALH-S1/750KG	5 x 15	1	33	105	92	260	180	64	42	28,5	35,5	14	3,4
500500080300460	0,75	3	PALH-S1/750KG	5 x 15	1	33	105	92	260	180	64	42	28,5	35,5	14	4,3
500500150150460	1,5	1,5	PALH-S1/1500KG	7,1 x 20,1	1	42	122	109	330	220	68,5	52	35	42,5	21,5	6,27
500500150300460	1,5	3	PALH-S1/1500KG	7,1 x 20,1	1	42	122	109	330	220	68,5	52	35	42,5	21,5	8,2
500500300150460	3	1,5	PALH-S1/3000KG	7,1 x 20,1	2	43	122	160	432	220	68,5	61,9	43	50	24,5	9,11
500500300300460	3	3	PALH-S1/3000KG	7,1 x 20,1	2	43	122	160	432	220	68,5	61,9	43	50	24,5	12,4
