Powertex
  • The product is equipped with RFID chip
  • Cr6+ Free

Extremely small and lightweight aluminum chain block. It weighs only approximately 50% of a similar standard chain block. The block can be used for lifting as well as pulling.

Features:

  • Safe - Each block is dynamic proof load tested 1,5 x WLL before leaving the factory
  • Compact, lightweight construction with aluminum covers
  • Durable construction with powder coated finish and plated frame parts
  • Chain block is chromium 6 free
  • Sealed bearings on the chain wheel maximize efficiency and serviceability.
  • Sprocket wheel surface treated against wear and corrosion
  • Safe and well covered automatic load reaction break
  • Equipped with double brake pawls
  • Fine calibrated European made load chain for smooth operation
  • Swivel hooks at both ends makes in line positioning easy
  • Hooks are designed to open at overload instead of breaking
  • Hooks fitted with heavy duty steel safety latches
  • Hook have Deformation Check Dots forged into side for overload detection
  • RFID (chip) equipped for easy service and inspection
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each hoist
  • 14 language User Manual enclosed with each hoist
  • Spare parts available
  • Material: Durable aluminium/steel construction
  • Marking: According to standard, CE-marked, POWERTEX, Model, WLL, Chain type , Serial number, User manual/QR code
  • Temperature range:  -10°C up to +50°C
  • Finish: White powder coated body, side plate assembly and hooks black powder coated
  • Standard: EN 13157, EN 818-7
  • Safety factor: 4:1

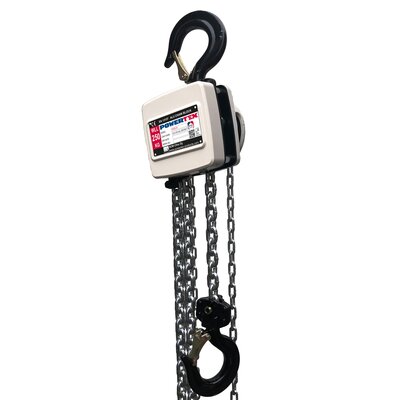

Aluminum Chain Block POWERTEX PACB-S1
Aluminum Chain Block POWERTEX PACB-S1 back
RFID chip on aluminum chain block POWERTEX PACB-S1
Warning tag on hoist
Hoist in workshop
Close-up aluminum chain block POWERTEX PACB-S1
PCB-S2 swivel hook detail
Alu chain hoist with overload protection drawing Aluminum Chain Block POWERTEX PACB-S1 drawing
Part Code WLL
ton
Lifting height
m
Model Load chain
mm
Hand chain
mm
Number of falls Hand force max.
kg
Hand chain length
m
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
H min
mm
Weight
kg
CAD
500100030300170 0,25 3 PACB-S1/250 3,0 x 9 2,5 x 12 1 15 2,5 75 77 44 32 35,5 21 225 2,6
500100030600170 0,25 6 PACB-S1/250 3,0 x 9 2,5 x 12 1 15 2,5 75 77 44 32 35,5 21 225 3,8
500100050300170 0,5 3 PACB-S1/500 4,0 x 12 3,5 x 16 1 19 2,5 92 89 51 34,5 42 23 265 4,6
500100050600170 0,5 6 PACB-S1/500 4,0 x 12 3,5 x 16 1 19 2,5 92 89 51 34,5 42 23 265 6,1
500100100300170 1 3 PACB-S1/1000 5,6 x 15,7 3,5 x 16 1 29 2,5 110 102 55 42,5 49,5 27 295 6,6
500100100600170 1 6 PACB-S1/1000 5,6 x 15,7 3,5 x 16 1 29 2,5 110 102 55 42,5 49,5 27 295 10,14
500100200300170 2 3 PACB-S1/2000 8,0 x 24 4,8 x 22 1 37 2,5 145 138 78,5 46,5 58,5 35 390 13,5
500100200600170 2 6 PACB-S1/2000 8,0 x 24 4,8 x 22 1 37 2,5 145 138 78,5 46,5 58,5 35 390 20,4
500100300300170 3 3 PACB-S1/3000 7,1 x 20,1 4,8 x 22 2 35 2,5 165 120 68 50 61,9 37 470 17
500100300600170 3 6 PACB-S1/3000 7,1 x 20,1 4,8 x 22 2 35 2,5 165 120 68 50 61,9 37 470 26,3
