Powertex
  • The product is equipped with RFID chip
  • Cr6+ Free

POWERTEX Geared Trolley PGT-S2 is a high quality, durable low built push trolley that is easy to install on horizontal beams and rails.

The trolleys can be used for I-beams with plane flanges (such as IPE, HEA or HEB types) or beams with sloping flanges (such as INP-beams).

The trolley can easily be positioned along the beam using the hand chain thanks to high quality steel wheels with bearings.

Features:

  • Safe - All POWERTEX trolleys are proof load tested 1,5 x WLL
  • Mechanical stops integrated in the design to prevent derailing
  • Equipped with connection plate with eye to hoist’s upper hook or direct connection
  • Connection plate can be turned 90 degrees to allow direct connection to POWERTEX S2 hoists without need of intermediate hook/eye
  • Rubber bumpers to absorb shock loads on impact to rail ending
  • Equipped with RFID for quick registration and maintenance
  • Marked with QR code to allow access to User manuals at any time
  • PGT-S2 is easy to mount and dismount on a horizontal rail or beam
  • The 3 piece design makes installation quick and ergonomically
  • The shaft is easily locked using the Lock plate (No need to use large castle nut nor collar pins)
  • Wheel shafts are robotic welded for high quality weld seams
  • Large steel wheels equipped with double sided sealed bearings that do not need maintenance
  • Powder painted side panels gives a nice lasting finish
  • Fits most types of beam profiles and most brands of lifting blocks and electric hoists
  • Longer shafts for wider beams can be supplied from stock in EU
  • Can be turned into Blackline version BT by adding the included grey label over the shiny nameplate

Option:

  • Black painted hand chain instead of galvanized hand chain

Blackline BT products are suitable to be used in theatres and entertainment industry.

  • Marking: According to standard, CE-marked, WLL, beam width, individual serial number
  • Temperature range: -10°C up to +50°C.
  • Finish: Black powder painted (Matt finish)
  • Standard: EN 13157
  • Safety factor: 4:1

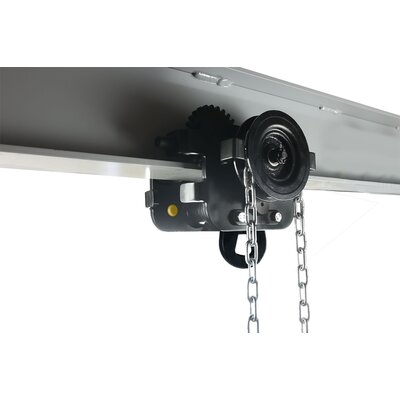

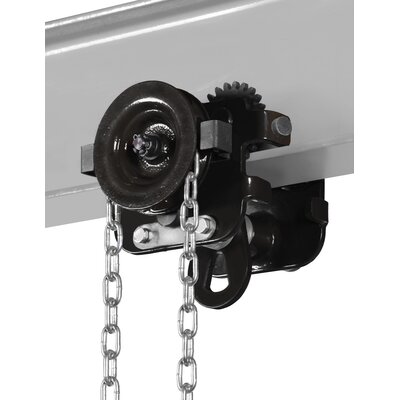

Geared Trolley POWERTEX PGT-S2

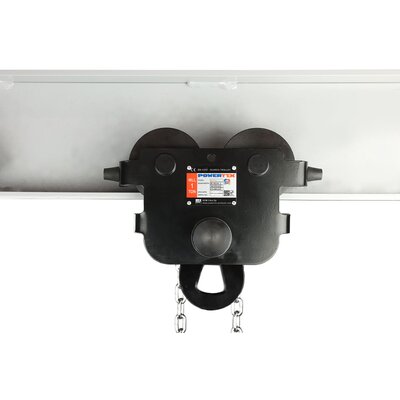

Geared Trolley POWERTEX PGT-S2 with nameplate
POWERTEX Geared Trolley with RFID chip mounted inside

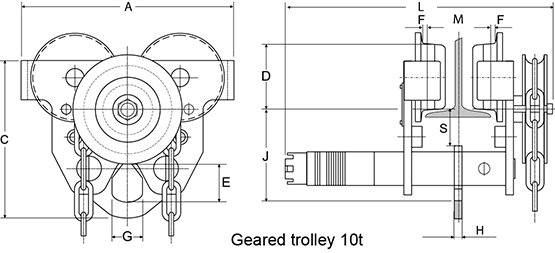

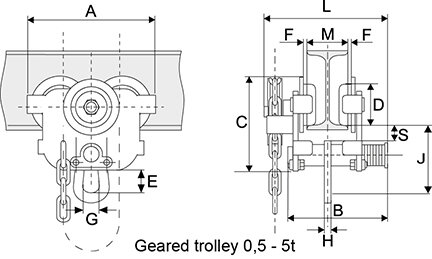

Geared Trolley 0,5-5t drawing Geared Trolley POWERTEX PGT-S2 0,5-5t drawing Geared Trolley POWERTEX PGT-S2 measurements Geared Trolley POWERTEX PGT-S2 10t drawing
Part Code WLL
ton
Beam width
(mm)
Model Minimum radius
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
L
mm
S
mm
Weight
kg
CAD
502600051350140 0,5 50-135 PGT-S2 800 205 198 150 55 30 1,5 – 2 28 8 111 239 27 8
502600052150140 0,5 130-215 PGT-S2 800 205 278 150 55 30 1,5 – 2 28 8 111 319 27 8,8
502600053000140 0,5 215-300 PGT-S2 800 205 363 150 55 30 1,5 – 2 28 8 111 404 27 9,6
502600101400140 1 55-140 PGT-S2 1 000 242 211 174 68 30 1,5 – 2 32 10 118 254 28 12,4
502600102150140 1 140-215 PGT-S2 1 000 242 286 174 68 30 1,5 – 2 32 10 118 329 28 13,4
502600103000140 1 215-300 PGT-S2 1 000 242 371 174 68 30 1,5 – 2 32 10 118 414 28 14,7
502600201550140 2 65-155 PGT-S2 1 100 270 238 194 80 49 1,5 – 2 40 12 147 277 27 18,1
502600202300140 2 150-230 PGT-S2 1 100 270 313 194 80 49 1,5 – 2 40 12 147 352 27 19,3
502600203000140 2 230-300 PGT-S2 1 100 270 383 194 80 49 1,5 – 2 40 12 147 422 27 20,5
502600301600140 3 90-160 PGT-S2 1 300 325 246 234 100 60 2 – 3 49 14 177 287 29 30,3
502600302300140 3 160-230 PGT-S2 1 300 325 316 234 100 60 2 – 3 49 14 177 357 29 31,9
502600303000140 3 230-300 PGT-S2 1 300 325 386 234 100 60 2 – 3 49 14 177 427 29 33,5
502600501800140 5 90-180 PGT-S2 1 500 370 280 267 110 79 2 – 3 59 16 219 320 29 46,5
502600502300140 5 180-230 PGT-S2 1 500 370 330 267 110 79 2 – 3 59 16 219 370 29 48,2
502600503000140 5 230-300 PGT-S2 1 500 370 400 267 110 79 2 – 3 59 16 219 440 29 50,6
502601003050140 10 124-305 PGT-S2 2 000 442 396 136 137 2 - 3.5 92 30 190 525 45 94
