This forged heavy-duty thimble is intended for heavy duty lifting steel wire rope slings and end terminations.
Wire rope size 8 – 51 mm.

  • Material: Forged Steel
  • Marking: PX (Powertex), Max. rope size, K2 (model)
  • Finish: Hot dip galvanized

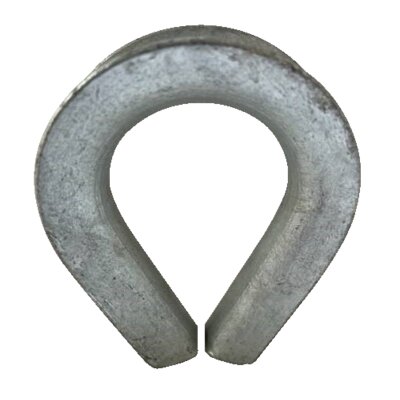

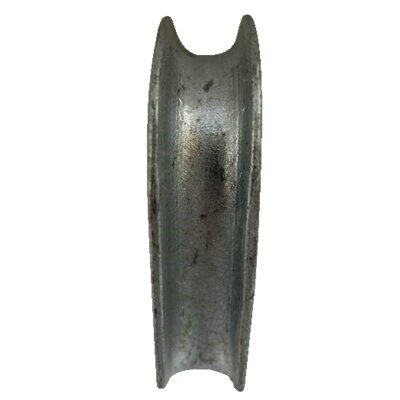

    Heavy Duty Thimble POWERTEX PTK2

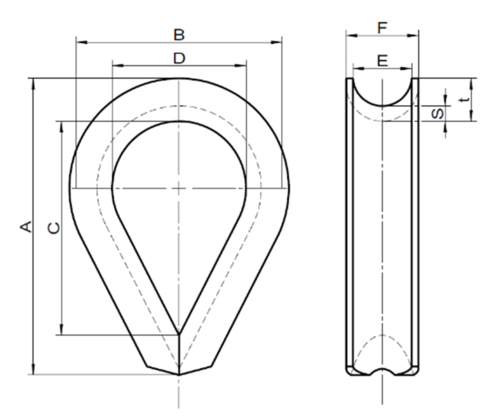

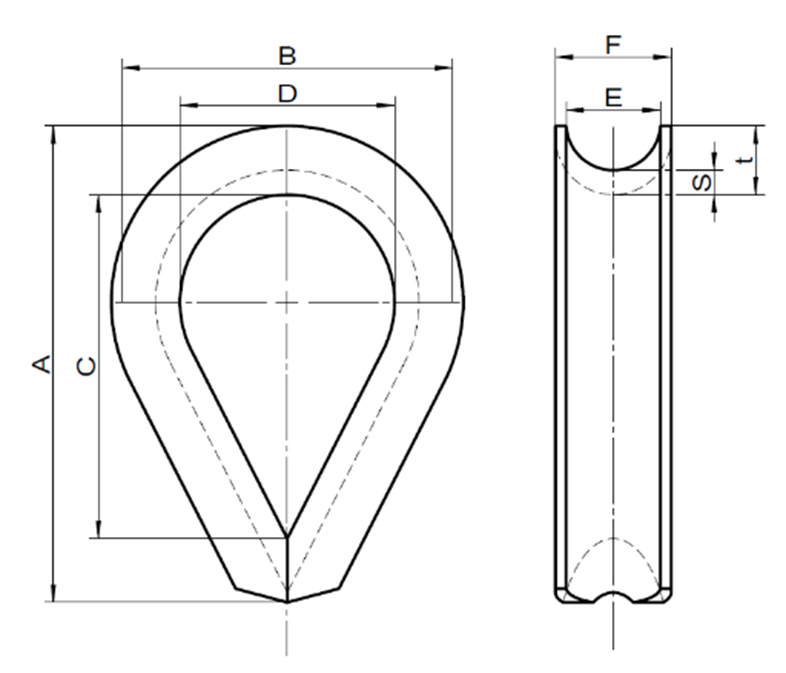

    Heavy Duty Thimble POWERTEX PTK2 drawing Heavy Duty Thimble Type POWERTEX PTK2 drawing
    Part Code Code Rope diameter A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    S
    mm
    t
    mm
    Weight
    kg
    CAD
    123100800480 PTK2-8 (2”) 8 51 42 35 22 9 14 4 11 0,07 -
    123101000480 PTK2-10 (2,5”) 10 64 50 45 30 11 16 4 13 0,08 -
    123101200480 PTK2-12 (3”) 12 76 59 55 35 13 18 5,5 13,5 0,15 -
    123101300480 PTK2-13 (3,5”) 13 89 73 65 45 15 20 6,2 15,6 0,23 -
    123101500480 PTK2-15 (4”) 15 102 75 75 50 17 22 7 19 0,25 -
    123101700480 PTK2-17 (4,5”) 17 115 85 85 53 19 25 8 19,5 0,39 -
    123101900480 PTK2-19 (5”) 19 127 100 90 60 21 29 10 20,7 0,63 -
    123102100480 PTK2-21 (5,5”) 21 140 110 105 65 23 32 10,3 22 0,8 -
    123102300480 PTK2-23 (6”) 23 152 115 114 70 25 34 10,5 24,5 0,98 -
    123102700480 PTK2-27 (7”) 27 178 135 135 80 30 38 12 29 1,45 -
    123103000480 PTK2-30 (8”) 30 203 155 160 100 33 43 12 29 1,68 -
    123103400480 PTK2-34 (9”) 34 229 175 185 115 38 47 13 31 2,52 -
    123103700480 PTK2-37 (10”) 37 254 190 195 120 41 52 12,8 35 3,32 -
    123104200480 PTK2-42 (11”) 42 280 210 215 130 46 60 15 43 6,1 -
    123104700480 PTK2-47 (12”) 47 305 225 240 140 52 65 20 51 8,1 -
    123105100480 PTK2-51 (14”) 51 356 240 250 150 56 72 25 59 9,7 -

    Groove “E” tolerance -0/+5%
