Heavy duty Thimble POWERTEX PT3090HD

  • Cr6+ Free

This forged heavy duty thimble is intended for heavy-duty lifting steel wire rope slings and end terminations. Wire rope size 6 – 44 mm.

  • Material: Forged steel
  • Marking: According to standard, PX (Powertex), Max. rope size, HD (model)
  • Finish: 6 mm electrogalvanized, 8 mm and above HDG (Hot dip galvanized). Chrome 6 free.
  • Standard: DIN 3090
    Heavy Duty Thimble POWERTEX PT3090HD front
    Heavy Duty Thimble POWERTEX PT3090HD

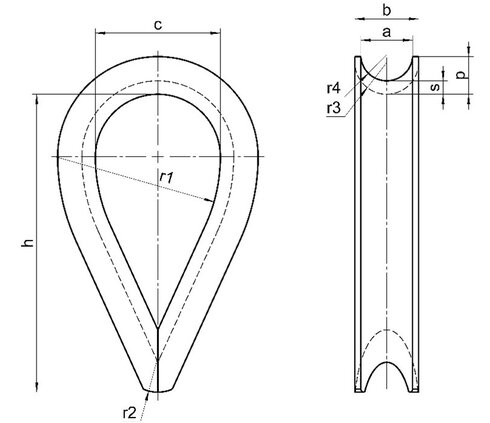

    Heavy Duty Thimble POWERTEX PT3090HD drawing Heavy Duty Thimble POWERTEX PT3090HD drawing
    Part Code Code Rope diameter
    mm    		 a
    mm    		 b
    mm    		 c
    mm    		 h
    mm    		 p
    mm    		 s
    mm    		 Weight
    kg    		 CAD
    123100600440 PT3090HD-6 6 7 10 15 42 7,1 2,6 0,03
    123100800440 PT3090HD-8 8 9 13 20 56 10 4 0,08
    123101000440 PT3090HD-10 10 11 15 25 70 14 5 0,12
    123101200440 PT3090HD-12 12 13 19 30 85 15 6 0,2
    123101400440 PT3090HD-14 14 16 22 35 102 16 8 0,26
    123101600440 PT3090HD-16 16 18 25 40 113 18 8 0,36
    123101800440 PT3090HD-18 18 20 27 45 127 21 9 0,54
    123102000440 PT3090HD-20 20 22 30 50 153 23 10 0,7
    123102200440 PT3090HD-22 22 24 33 55 165 24 10 0,8
    123102400440 PT3090HD-24 24 26 35 60 181 26 10 0,9
    123102600440 PT3090HD-26 26 29 45 65 193 30 12 1,58
    123102800440 PT3090HD-28 28 31 48 70 223 32 12 1,77
    123103200440 PT3090HD-32 32 35 50 80 247 38 15 2,42
    123103600440 PT3090HD-36 36 40 55 90 281 40 15 3,77
    123104000440 PT3090HD-40 40 44 60 100 305 46 20 7
    123104400440 PT3090HD-44 44 48 68 110 329 52 20 8

    Groove “a” tolerance -0/+5%
