The General Duty Thimble PT6899P from POWERTEX, intended for general duty steel wire rope slings and synthetic rope end termination. Wire rope size 2,5 – 9 mm.

  • Material: Steel plate
  • Marking: According to standard
  • Finish: Electrogalvanized
  • Standard: DIN 6899B
    Thimble POWERTEX PT6899P product picture

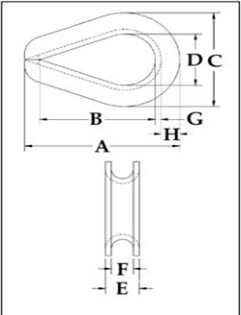

    POWERTEX Thimble PT6899P  drawing
    Part Code Code Rope diameter
    mm
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    Weight
    kg
    CAD
    123100250460 PT6899P-2,5 2,5 29 19 20 11,5 6 3 1,5 2 0,006
    123100350460 PT6899P-3,5 3,5 30,5 20,5 21,5 13 7 4 1,5 2,5 0,007
    123100400460 PT6899P-4 4 33,5 22 24 14 8 5 1,5 3 0,009
    123100500460 PT6899P-5 5 40 24 27 15 10 6 2 4,1 0,017
    123100600460 PT6899P-6 6 43 29 30 18 11 7 2 5 0,022
    123100700460 PT6899P-7 7 50 35 33 20 12 8 2 5,2 0,028
    123100900460 PT6899P-9 9 58 39 40 24 14 10 2 5,5 0,038

    Groove “F” tolerance -0/+5%
