Powertex

POWERTEX push trolley operated by pushing. A compact and low buildt design with low dead weight in a solid steel construction. It includes mechanical stops to ensure that the trolley is kept on the beam in case of an accident (anti-drop + anti-tilt). Fits most types of beam profiles and most brands of lifting blocks and electric hoists. Wheels with ball bearings.
Supplied with grey label for adhering over white nameplate for use in the entertainment industry.
Static test coefficient: WLL x 1,5.

  • Marking: According to standard, WLL, CE and individual serial number.
  • Finish: Black painted.
  • Standard: EN 13157
  • Safety factor: 4:1
Push trolley_with nameplate

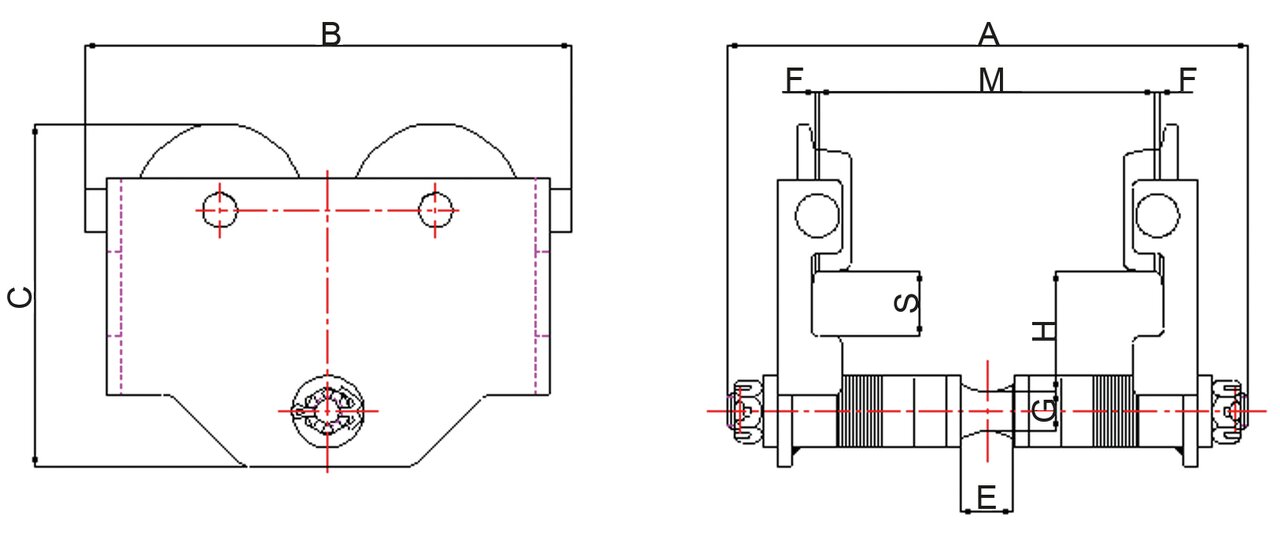

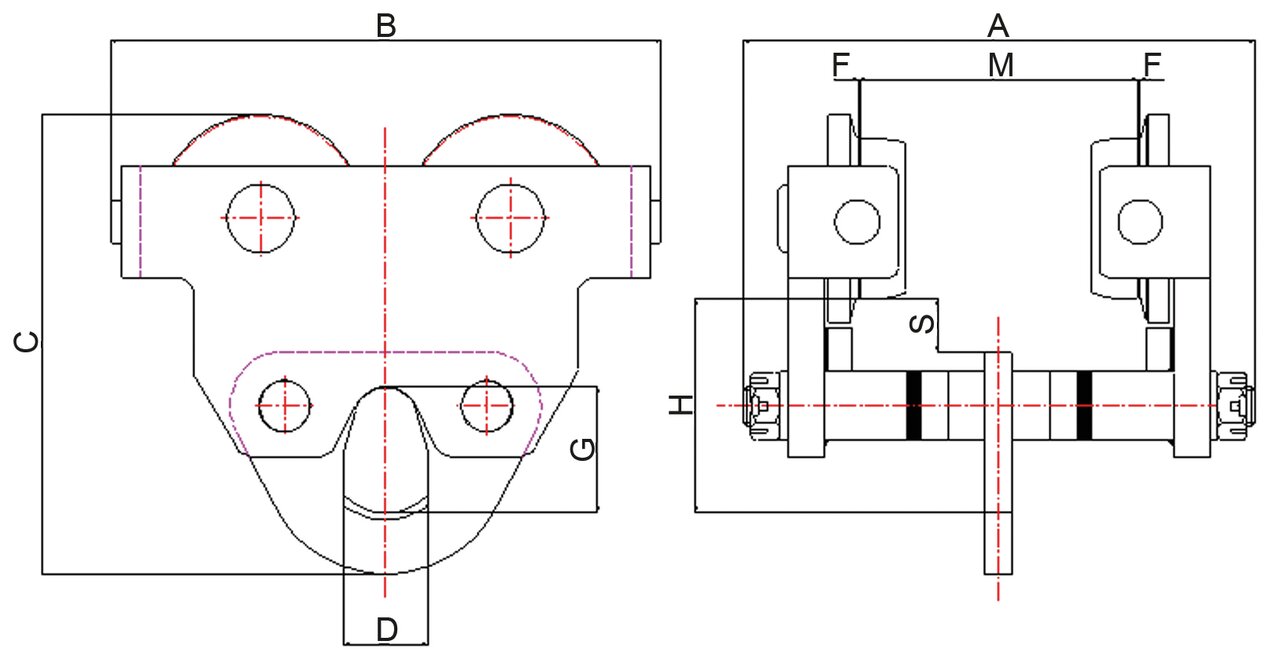

Trolley push_0.25-5t_dwg Trolley push_10t_dwg
Part Code WLL
ton
Wheel Ø outside/inside
mm
Min. radius of curve m M
mm
A
mm
B
mm
C
mm
D
mm
H
mm
S
mm
E
mm
G
mm
F
mm
Weight
kg
16.05PPTS1005 0.5 79/55 0,8 50-180 267 224 159 - 57.5 (55.5) 30 27 18 (22) 1.5-3 6
16.05PPTS1010 1 96,2/68 1 66-188 289 270 190 - 67 (65) 35,5 29 22 (26) 1.5-3 15
16.05PPTS1020 2 108,2/80 1,1 88-200 318 300 218 - 74 (72) 36 43 (35.6) 28 (32) 1.5-3 18
16.05PPTS1030 3 131,3/100 1,3 100-205 345 356 262,5 - 87 (85) 38 46 34 (38) 1.5-3 30
16.05PPTS1050 5 143,7/110 1,4 114-212 364 405 292 - 95.5 (93.5) 41 56 39 (43) 1.5-3 44
