Powertex
  • Cr6+ Free

Extremely small and lightweight aluminum lever hoist. It weighs only approximately 50% of a similar standard lever hoist. The hoist can be used for lifting as well as pulling. 250 kg-750 kg hoists are delivered with a handy carrying/belt bag.

Features:

  • Safe - Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
  • Compact, lightweight construction with aluminum covers
  • Durable construction with powder coated finish and plated frame parts
  • Lever hoist is chromium 6 free
  • Sealed bearings inside maximize efficiency and serviceability.
  • Sprocket wheel surface treated against wear and corrosion
  • Safe and well covered automatic load reaction break
  • Equipped with double brake pawls
  • Fine calibrated European made load chain for smooth operation
  • Swivel hooks at both ends makes in line positioning easy
  • Hooks are designed to open at overload instead of breaking
  • Hooks fitted with heavy duty steel safety latches
  • Hook have Deformation Check Dots forged into side for overload detection
  • RFID equipped (chip) for easy service and inspection
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each hoist
  • 14 language User manual enclosed with each hoist
  • Spare parts available
  • Material: Durable aluminium/steel construction, Rubber handle
  • Marking: According to standard, CE-marked, POWERTEX, Model, WLL, Chain type , Serial number, User manual/QR code
  • Temperature range: -10°C up to +50°C
  • Finish: White powder coated body, side plate assembly and hooks black powder coated
  • Standard: EN 13157, EN 818-7
  • Safety factor: 4:1
RFID equipped

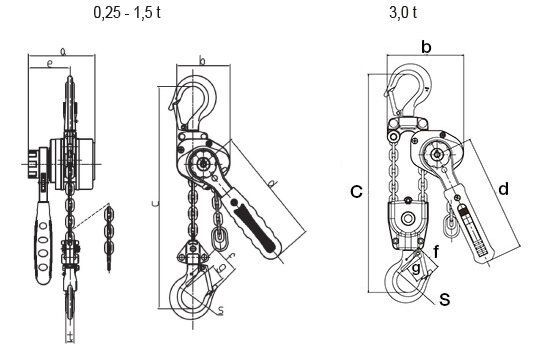

Part Code WLL
ton
Model Lifting height
m
Load chain
mm
Number of falls Hand force max.
kg
a
mm
b
mm
c
mm
d
mm
e
mm
f
mm
g
mm
s
mm
t
mm
Weight
kg
16.20PALHS10025015 0.25 PALH-S1/250KG 1.5 3 x 9 1 29 87 68 200 145 55.5 35.5 21 32 11 1.45
16.20PALHS10025030 0.25 PALH-S1/250KG 3 3 x 9 1 29 87 68 200 145 55.5 35.5 21 32 11 1.95
16.20PALHS10050015 0.5 PALH-S1/500KG 1.5 4 x 12 1 27 100.5 81 250 160 62.5 42 24.5 34.5 12 2.5
16.20PALHS10050030 0.5 PALH-S1/500KG 3 4 x 12 1 27 100.5 81 250 160 62.5 42 24.5 34.5 12 3.3
16.20PALHS10075015 0.75 PALH-S1/750KG 1.5 5 x 15 1 33 105 92 260 180 64 42 28.5 35.5 14 3.4
16.20PALHS10075030 0.75 PALH-S1/750KG 3 5 x 15 1 33 105 92 260 180 64 42 28.5 35.5 14 4.3
16.20PALHS10150015 1.5 PALH-S1/1500KG 1.5 7,1 x 20,1 1 42 122 109 330 220 68.5 52 35 42.5 21.5 6.27
16.20PALHS10150030 1.5 PALH-S1/1500KG 3 7,1 x 20,1 1 42 122 109 330 220 68.5 52 35 42.5 21.5 8.2
16.20PALHS10300015 3 PALH-S1/3000KG 1.5 7,1 x 20,1 2 43 122 160 432 220 68.5 61.9 43 50 24.5 9.11
16.20PALHS10300030 3 PALH-S1/3000KG 3 7,1 x 20,1 2 43 122 160 432 220 68.5 61.9 43 50 24.5 12.4
