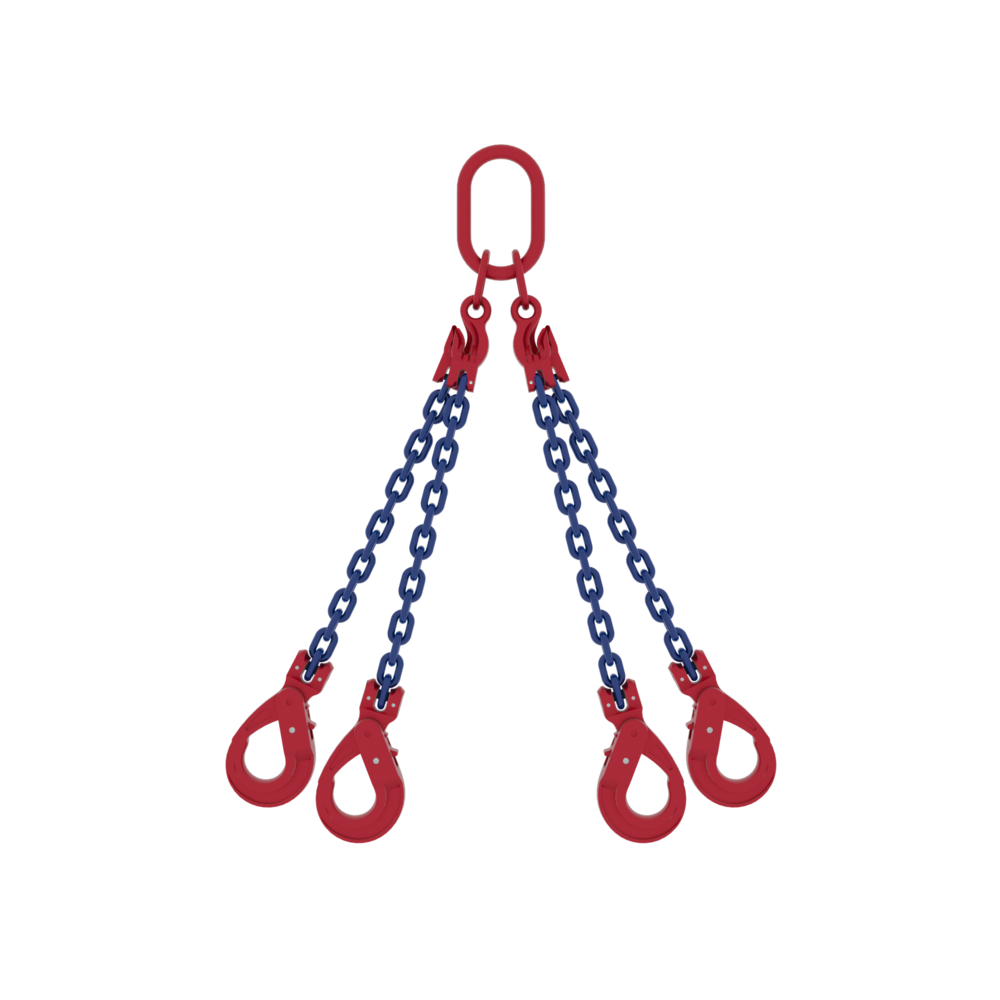

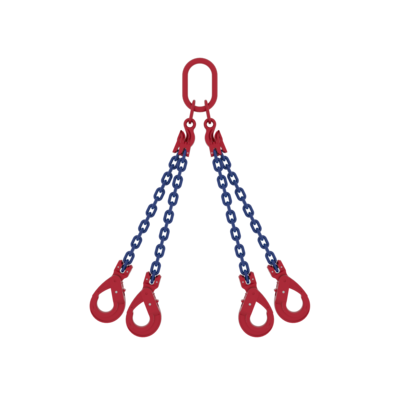

The Chain Sling Powertex 4-leg MC-4 with safety hooks is a four-leg lifting assembly for general industrial use. It features an MC-4 master link with integrated shortening functions on all 4 legs, reducing the number of components and creating a more compact and manageable lifting setup.
It is designed for balanced lifting where load distribution, individual leg adjustment, and predictable performance are required.
The assembly includes the MC-4 Master Link, Grade 10 chain, safety hooks, and a marking plate with WLL information, providing a complete, ready-to-use configuration.
When to choose this product
Best for:
- Lifting loads requiring multiple lifting points for stability
- Applications where a compact setup with integrated shortening is preferred
- Lifting applications where secure hook closure is required to reduce the risk of unintentional release
Product Benefits
- MC-4 master link integrates the shortening function, reducing the number of components and simplifying assembly configuration
- Individual leg shortening allows accurate load balancing without adding separate shortening hooks
- Compact design supports a clearer overview during use and inspection, helping reduce handling errors
- Safety hooks provide secure closure, helping reduce the chance of unintentional hook release during lifting
- Grade 10 chain provides higher capacity compared to Grade 8, enabling compact setups without increasing chain diameter
- Components are crack detection tested, and samples from each batch are proof load tested, supporting consistent quality control
- Fatigue rated to 20,000 cycles at 1.5x WLL, supporting predictable performance in repetitive lifting
- Marking plate shows WLL and angle capacities, simplifying load planning on site
- Material: Alloy steel
- Marking: According to standard, CE-marked
- Temperature range: -40°C up to +200°C without reduction in WLL
- Finish: Red powder paint
-
Standard:
EN 818-4
(+25 % WLL)
- Safety factor: 4:1
- Grade: 10
