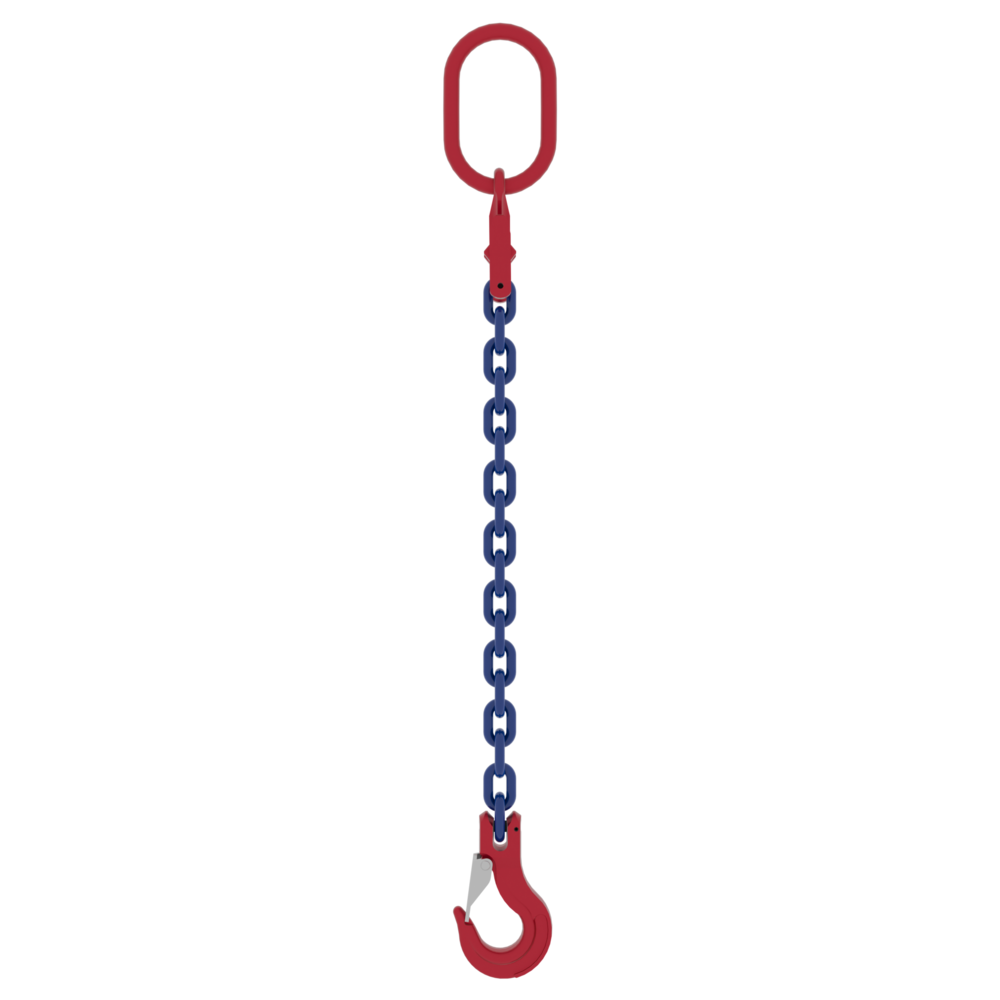

The Chain Sling Powertex 1-leg MC-1 with latch hook is a single-leg lifting assembly for general industrial use. It features an MC-1 master link with an integrated shortening function, reducing loose components and creating a more compact and manageable lifting setup.
It is designed for controlled vertical lifting where fast connection, quick length adjustment, and predictable performance are required.
The assembly includes the MC-1 master link, a Grade 10 chain, a latch hook, and a marking plate with WLL information, providing a complete, ready-to-use configuration.
When to choose this product:
Best for:
- Straight vertical lifts with a single lifting point
- Applications where a compact setup with integrated shortening is preferred
- Repetitive lifting where fast and efficient hook connection improves handling speed
Product benefits
- MC-1 master link integrates the shortening function, reducing loose components and simplifying assembly configuration
- Integrated shortening allows quick length adjustment without adding separate shortening hooks
- Compact design supports a clearer overview during use and inspection, helping reduce handling errors
- Latch hook enables fast and secure attachment, reducing connection time during repetitive lifting operations
- Grade 10 chain provides higher capacity compared to Grade 8, enabling compact setups without increasing chain diameter
- Components are crack detection tested, and samples from each batch are proof load tested, supporting consistent quality control
- Fatigue rated to 20,000 cycles at 1.5x WLL, supporting predictable performance in repetitive lifting
- Marking plate shows WLL and angle capacities, simplifying load planning on site
- Material: Alloy steel
- Marking: According to standard, CE-marked
- Temperature range: -40°C up to +200°C without reduction in WLL
- Finish: Red powder paint
-
Standard:
EN 818-4
(+25 % WLL)
- Safety factor: 4:1
- Grade: 10
