Steel Wire Rope ROPETEX S14 PVC Transparent
Product information
Steel wire rope ROPETEX S14 is a galvanized rope equipped with a Fibre Core (FC) and has a transparent PVC coating. It can be used for various applications such as lifting slings, locking rope, etc. lt's most used in small diameters up to 12 mm. ROPETEX S14 is equipped with a Fiber Core (FC), which makes the rope very flexible with reasonable strength.
The PVC coating is UV stabilized which makes it suitable for longterm outdoor use and it is fully compliant with REACH Directive 1907/2006.

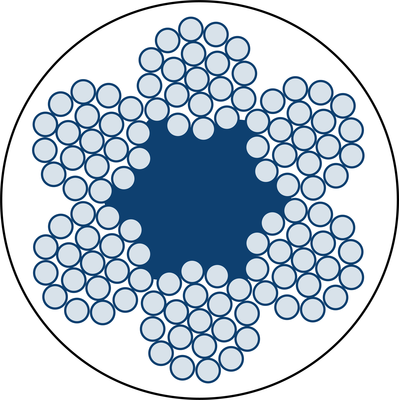

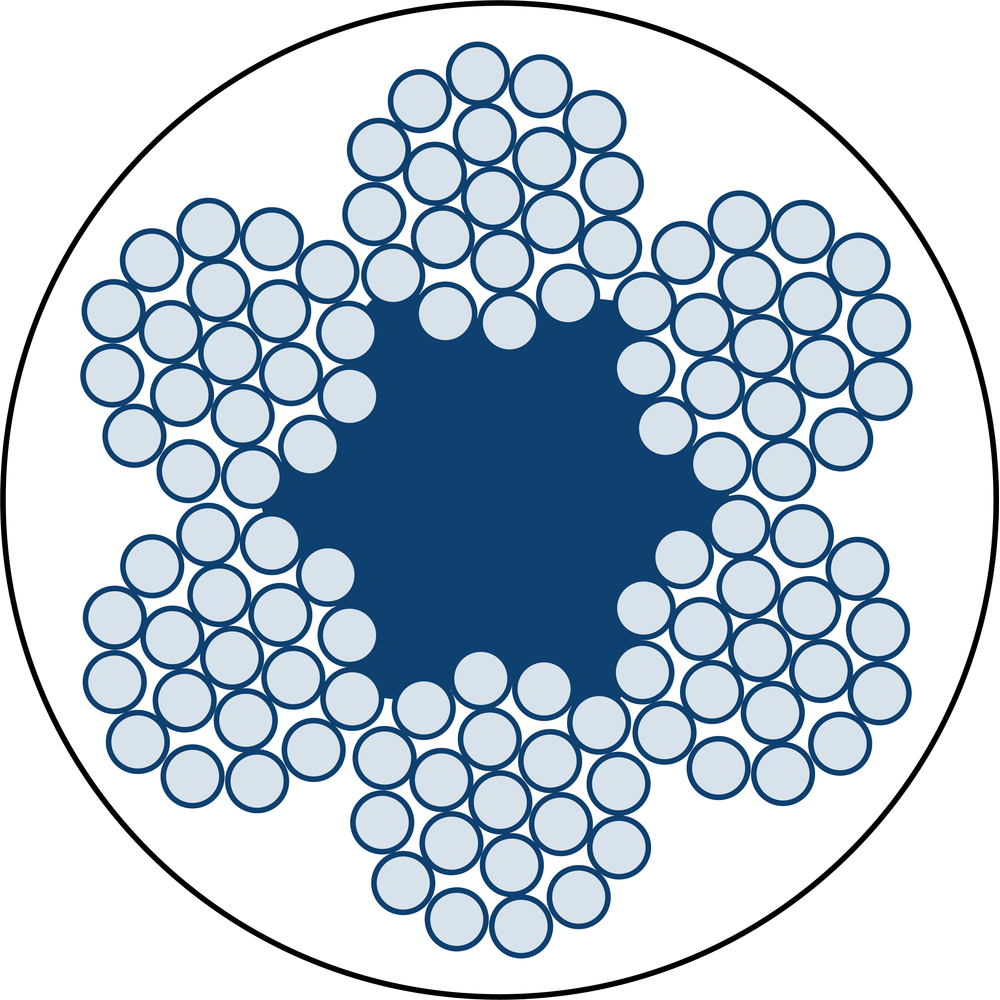

- Rope construction: 6x19M-FC
- Marking: According to standard
- Temperature range: -30°C up to +70°C
-
Standard:
EN 12385-4
except from coating - Note: End terminations must be placed on exposed steel wire rope. PVC-coating must be removed before applying a ferrule, and ferrule size is to be determined by the steel wire ropes dimensions. Periodic inspections of the steel wire rope can be made difficult due to the PVC-coating. The end user must handle this risk in a proper way, by for instance replacing the wire rope in time.
- Fill factor: 0,45
-
General use
-
Slings
Product FAQ
What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a Galvanized and is manufactured with a tensile strength of 1770 N/mm².The galvanized coating provides corrosion protection through a zinc layer, making the rope suitable for outdoor use and humid operating conditions.
What is the construction, core type, and lay of this steel wire rope?
This steel wire rope is constructed with 6 strands.
It is manufactured with a fibre core, which provides increased flexibility. Fibre core constructions are suitable for applications involving frequent bending over sheaves and drums where hig
It is manufactured with an ordinary right-hand lay (sZ), providing a balanced combination of flexibility, wear resistance, and stable handling. This is the most commonly used lay for general
