• Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel

Steel wire rope ROPETEX S14 is a galvanized rope equipped with a Fibre Core (FC) and has a transparent PVC coating. It can be used for various applications such as lifting slings, locking rope, etc. lt's most used in small diameters up to 12 mm. ROPETEX S14 is equipped with a Fiber Core (FC), which makes the rope very flexible with reasonable strength.

The PVC coating is UV stabilized which makes it suitable for longterm outdoor use and it is fully compliant with REACH Directive 1907/2006.

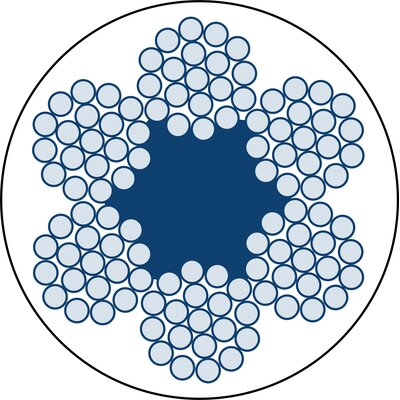

  • Rope construction: 6x19M-FC
  • Marking: According to standard
  • Temperature range: -30°C up to +70°C
  • Standard: EN 12385-4
    except from coating
  • Note: End terminations must be placed on exposed steel wire rope. PVC-coating must be removed before applying a ferrule, and ferrule size is to be determined by the steel wire ropes dimensions. Periodic inspections of the steel wire rope can be made difficult due to the PVC-coating. The end user must handle this risk in a proper way, by for instance replacing the wire rope in time.
  • Fill factor: 0,45
  • General use Wire for general use
  • Slings Sling wire rope
Steel Wire Rope ROPETEX S14 PVC Transparent
Part Code Rope diameter
Inner diameter
Tensile strength
Steel area
Min. breaking force
Colour Weight
105130800600020 8 6 1 770 12,9 19,6 transparent 16,1
105131000800020 10 8 1 770 22,8 34,8 transparent 25,2
105131201000020 12 10 1 770 35,7 54,3 transparent 34,6
