  • The product is equipped with RFID chip
  • Cr6+ Free

POWERTEX PRJ- S2 Mechanical rack jacks are easy and safe to operate as lifting can be made from the head or claw (same capacity).

This jack model is suitable for working in both vertical and horizontal position.

Features:

  • Safe - each jack is proof load tested 1,25 x WLL and inspected before delivery from the factory
  • Very stable thanks to the large ground plate
  • Equipped with double brake pawls
  • Durable – all steel housing that protects the mechanical parts inside
  • Durable - mechanical parts made from quenched and tempered alloy steel
  • The crank handle is foldable and equipped with ergonomic handle grip
  • Strong powder coating (Chromium 6 free)
  • RFID equipped (chip) for easy service, inspection and asset control
  • 2.2 test certificate and Declaration of conformity delivered with each jack
  • 14 language User manuals delivered with each hoist
  • QR code for on-site access to Multilanguage user manuals
  • Fulfills Machinery Directive 2006/42/EC
  • Material: Robust all steel construction
  • Marking: According to standard, CE-marked, POWERTEX, Model, WLL, Manufacturing date and Serial number
  • Temperature range: -20°C up to +50°C
  • Finish: Powder coated
  • Standard: EN 1494
    Mechanical Rack Jack POWERTEX PRJ-S2
    Foldable lever
    Mechanical Rack Jack POWERTEX PRJ-S2 liftet

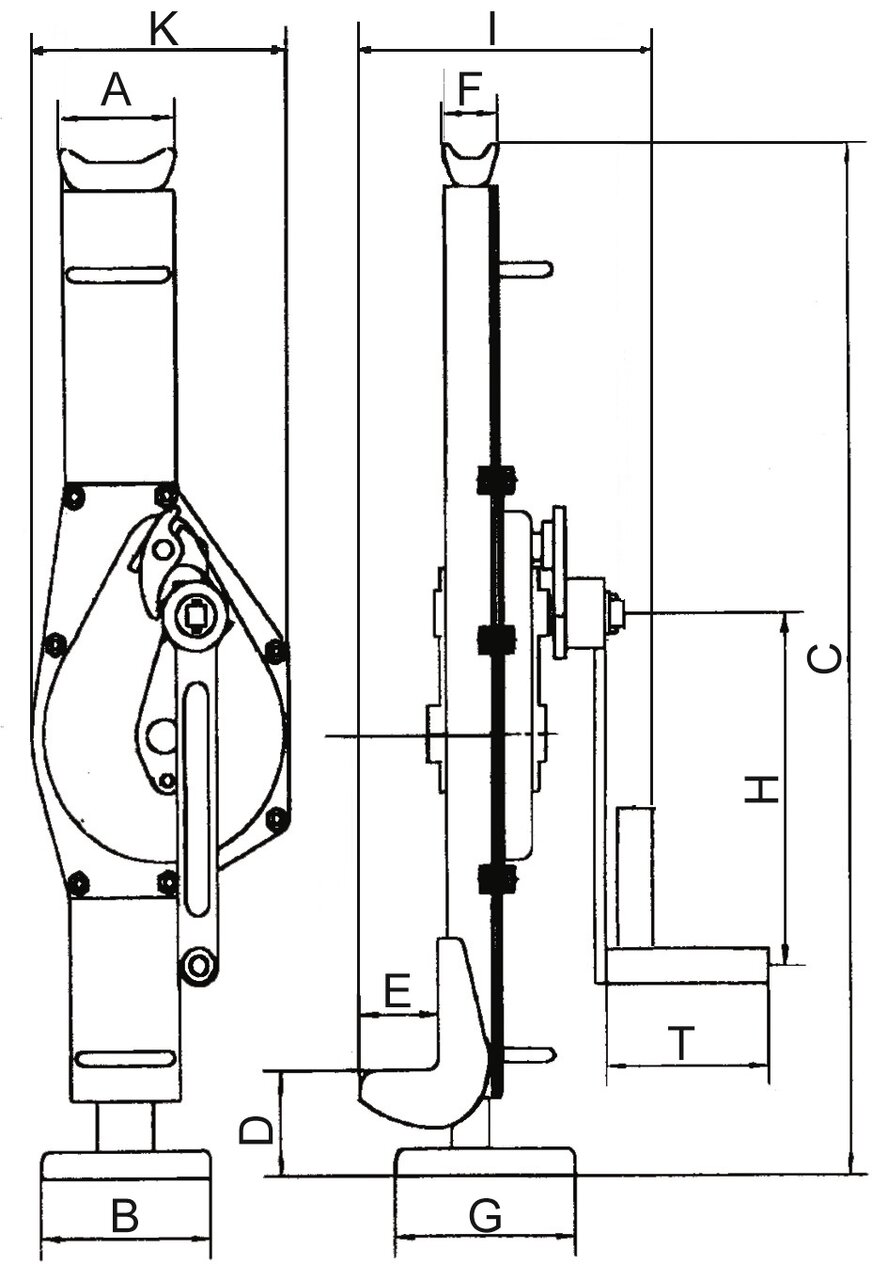

    Mechanical Rack Jack POWERTEX PRJ-S2 drawing Mechanical Rack Jack POWERTEX PRJ-S2 drawing Mechanical Rack Jack POWERTEX PRJ-S2 drawing
    Part Code WLL
    ton
    Model Crank force to lift full load
    N
    A
    mm
    B x G
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    H
    mm
    I
    mm
    K
    mm
    T
    mm
    Weight
    kg
    CAD
    5205PRJS2015 1,5 PRJ-S2/1500KG 186 82 100x110 600-900 60-360 55 48 225 190 163 113 13,5
    5205PRJS2030 3 PRJ-S2/3000KG 250 83 130x140 730-1080 70-420 60 45 250 200 197 127 21,2
    5205PRJS2050 5 PRJ-S2/5000KG 245 106 140x170 730-1080 80-430 71 68 275 239 189 127 28,5
    5205PRJS2100 10 PRJ-S2/10000KG 392 124 140x170 800-1210 85-495 86 76 300 293 250 248 46,8
