Lever Hoist POWERTEX brand PLH

Home / Products / POWERTEX Lifting / Hoist, Trolley & Beam Clamp / Lever Hoist POWERTEX PLH-S2

POWERTEX PLH-S2 Lever Hoist is a hoist of high quality which is durable and easy to operate using the ergonomic rachet lever. Compact, lightweight construction.

Features:

Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
Sprocket wheel equipped with needle bearings and drive shaft supported by needle bearing and slide bearing inside to ensure smooth and efficient operation
Safe, well covered automatic load reaction brake
Equipped with 2 brake pawls and 4 brake springs (double safety compared to EN 13157 requirement)
Fine calibrated European made COROLIM® protected load chain for smooth operation
The unique surface treatment gives excellent corrosion protection and quiet run
Swivel hooks at both ends makes in line positioning easy
Hooks are designed to open at overload instead of breaking
Hooks fitted with heavy duty steel safety latches
Hook have Deformation Check Dots forged into side for overload detection
RFID equipped (chip) for easy service and inspection
QR code for on-site access to Multilanguage user manuals
Test certificate and Declaration of Conformity enclosed with each hoist
Spare parts available

Material: Durable all steel construction
Marking: According to standard, CE-marked, POWERTEX, Model, WLL, Chain, Serial number, User manual/QR code
Temperature range: -10°C up to +50°C
Finish: Powder coated finish and plated frame components
Standard: EN 13157, EN 818-7

Safety factor: 4:1

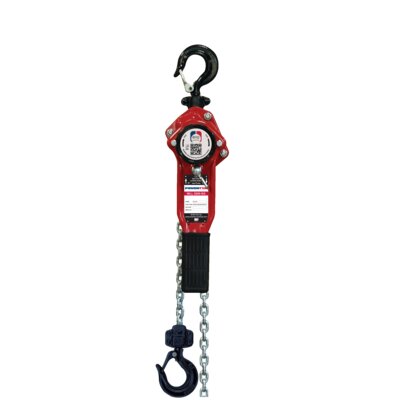

Lever Hoist POWERTEX PLH-S2

PLH-S2 swivel hook close-up

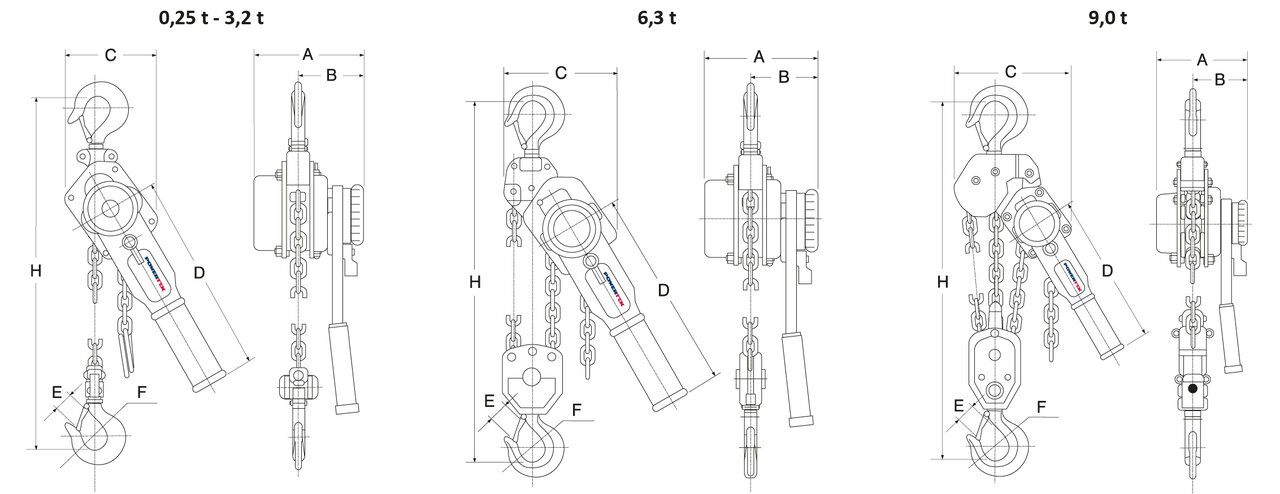

Lever Hoist POWERTEX PLH-S2 drawing

Part Code	WLL ton	Lifting height m	Model	Load chain mm	Number of falls	Hand force max. kg	A mm	B mm	C mm	D mm	E mm	F mm	H min mm	Weight kg
500500030150560	0,25	1,5	PLH-S2/250KG	4,0 x 12,0	1	28,2	100	70	86	163	20	31	235	2,7
500500030300560	0,25	3	PLH-S2/250KG	4,0 x 12,0	1	28,2	100	70	86	163	20	31	235	3,23
500500050150560	0,5	1,5	PLH-S2/500KG	5,0 x 15,0	1	24,8	150	90	118	253	22	32	310	5,2
500500050300560	0,5	3	PLH-S2/500KG	5,0 x 15,0	1	24,8	150	90	118	253	22	32	310	5,2
500500080150560	0,8	1,5	PLH-S2/800KG	5,6 x 17,0	1	26,5	158	98	132	273	26	36	340	6,6
500500080300560	0,8	3	PLH-S2/800KG	5,6 x 17,0	1	26,5	158	98	132	273	26	36	340	7,6
500500160150560	1,6	1,5	PLH-S2/1600KG	7,1 x 21,0	1	29,5	185	111	145	378	29	43	400	11
500500160300560	1,6	3	PLH-S2/1600KG	7,1 x 21,0	1	29,5	185	111	145	378	29	43	400	12,6
500500320150560	3,2	1,5	PLH-S2/3200KG	10,0 x 28,0	1	33,5	212	124	198	418	37	50	520	19,9
500500320300560	3,2	3	PLH-S2/3200KG	10,0 x 28,0	1	33,5	212	124	198	418	37	50	520	23,2
500500630150560	6,3	1,5	PLH-S2/6300KG	10,0 x 28,0	2	37	212	124	230	418	43	53	640	24,6
500500630300560	6,3	3	PLH-S2/6300KG	10,0 x 28,0	2	37	212	124	230	418	43	53	640	31,2
500500900150560	9	1,5	PLH-S2/9000KG	10,0 x 28,0	3	42	212	124	338	418	44	67	730	50
500500900300560	9	3	PLH-S2/9000KG	10,0 x 28,0	3	42	212	124	338	418	44	67	730	60

Weight is for hoist with 1.5 m lift
Other lifting heights on request
