Powertex
  • The product is equipped with RFID chip
  • Cr6+ Free

POWERTEX PCB-S2 Chain block is a hoist of high quality which is durable and easy to operate using the ergonomic hand chain.

Features:

  • Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
  • Compact, lightweight construction.
  • Sprocket wheel equipped with needle bearings and drive shaft supported by needle bearing and slide bearing inside to ensure smooth and efficient operation
  • Safe, well covered automatic load reaction brake
  • Equipped with 2 brake pawls and 4 brake springs (double safety compared to EN 13157 requirement)
  • Fine calibrated European made COROLIM® protected load chain for smooth operation
  • The unique surface treatment gives excellent corrosion protection and quiet run
  • Swivel hooks at both ends makes in line positioning easy
  • Hooks are designed to open at overload instead of breaking
  • Hooks fitted with heavy duty steel safety latches
  • Hook have Deformation Check Dots forged into side for overload detection
  • RFID equipped (chip) for easy service and inspection
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each hoist
  • Spare parts available

Option:

  • Chain bag
  • Material: Durable all steel construction
  • Marking: According to standard, CE-marked, UKCA-marked, POWERTEX, Model, WLL, Chain, Serial number, User manual/QR code
  • Temperature range: -10°C up to +50°C
  • Finish: Red powder coated body and plated frame components
  • Standard: EN 13157, EN 818-7
  • Safety factor: 4:1
Chain Block POWERTEX PCB-S2

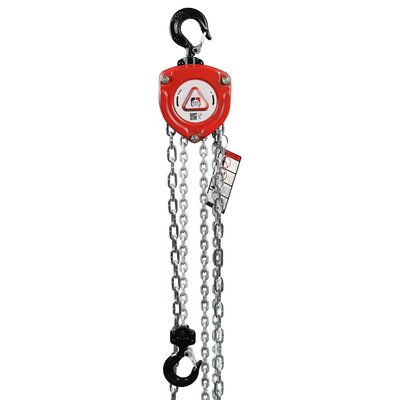

Chain Block POWERTEX PCB-S2 back
RFID chip on POWERTEX chain hoist

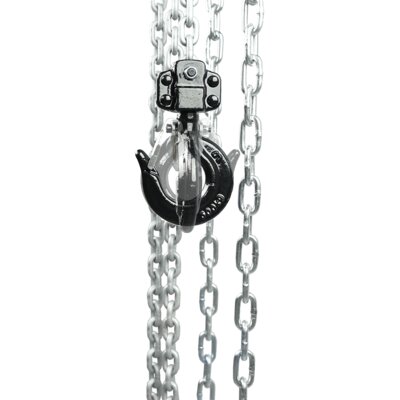

PCB-S2 swivel hook detail
POWERTEX chain bag

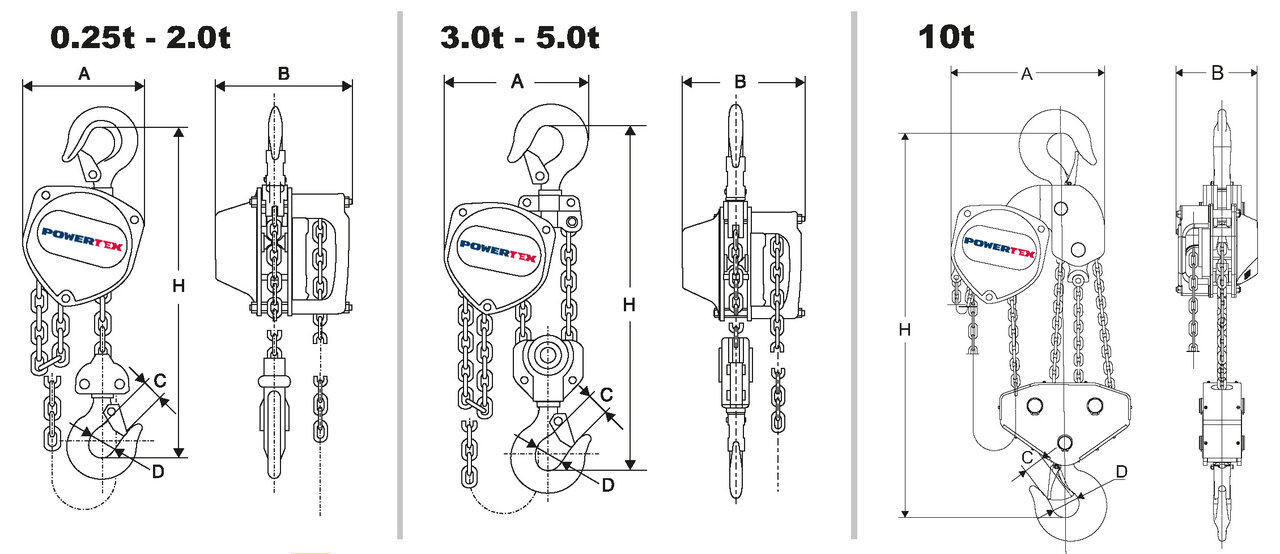

POWERTEX chain hoist measurements 0.25 to 2 tons PCB-S2 0,25-2,0t drawing POWERTEX Chain hoist measurements from 3 to 5 tons. PCB-S2 3,0-5,0t drawing POWERTEX chain hoist measurements 7.5 tons PCB-S2 7,5t drawing POWERTEX chain hoist measurements 10 ton PCB-S2 10t drawing
Part Code WLL
ton
Lifting height
m
Number of falls Model Load chain
mm
Hand chain
mm
Hand force max.
kg
A
mm
B
mm
C
mm
D
mm
H min
mm
Weight
kg
CAD
500100030300230 0,25 3 1 PCB-S2/250KG 4,0 x 12,0 5,0 x 23,7 23,5 108 106 20 30 260 5,9
500100030600230 0,25 6 1 PCB-S2/250KG 4,0 x 12,0 5,0 x 23,7 23,5 108 106 20 30 260 6,4
500100050300230 0,5 3 1 PCB-S2/500KG 5,0 x 15,0 5,0 x 23,7 24,9 130 128 22 34 280 8,9
500100050600230 0,5 6 1 PCB-S2/500KG 5,0 x 15,0 5,0 x 23,7 24,9 130 128 22 34 280 9,8
500100100300230 1 3 1 PCB-S2/1000KG 6,3 x 19,0 5,0 x 23,7 28,4 150 145 26 39 330 11,7
500100100600230 1 6 1 PCB-S2/1000KG 6,3 x 19,0 5,0 x 23,7 28,4 150 145 26 39 330 12
500100200300230 2 3 1 PCB-S2/2000KG 8,0 x 24,0 5,0 x 23,7 34,3 185 175 35 49 385 18,9
500100200600230 2 6 1 PCB-S2/2000KG 8,0 x 24,0 5,0 x 23,7 34,3 185 175 35 49 385 19,5
500100300300230 3 3 2 PCB-S2/3000KG 7,1 x 21,0 5,0 x 23,7 34,3 220 158 37 50 510 22,8
500100300600230 3 6 2 PCB-S2/3000KG 7,1 x 21,0 5,0 x 23,7 34,3 220 158 37 50 510 28,9
500100500300230 5 3 2 PCB-S2/5000KG 9,0 x 27,0 5,0 x 23,7 37,2 255 183 43 60 615 36,3
500100500600230 5 6 2 PCB-S2/5000KG 9,0 x 27,0 5,0 x 23,7 37,2 255 183 43 60 615 37,1
500101000300230 10 3 4 PCB-S2/10000KG 9,0 x 27,0 5,0 x 23,7 40 360 183 47 65 820 50
500101000600230 10 6 4 PCB-S2/10000KG 9,0 x 27,0 5,0 x 23,7 40 360 183 47 65 820 92,8

Weight: With standard 3 m lifting height
The hand chain is by default ½ meters shorter than the lifting height
Other lifting heights on request
