• The product is equipped with RFID chip
  • Cr6+ Free

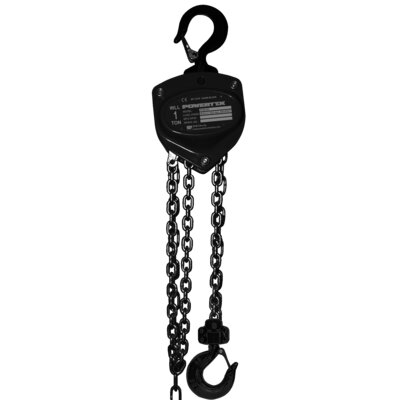

Chain Block POWERTEX Blackline PCB-S2 is a hoist of high quality which is durable and easy to operate using the ergonomic hand chain. The hoist is powder coated in matt black, and mounted with a black chain, which makes it perfect for use on stages and in the amusement industry.
The hoist is in a compact, lightweight construction.


  • Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
  • Sprocket wheel equipped with needle bearings and drive shaft supported by needle bearing and slide bearing inside to ensure smooth and efficient operation
  • Safe, well covered automatic load reaction brake
  • Equipped with 2 brake pawls and 4 brake springs (double safety compared to EN 13157 requirement)
  • Fine calibrated European made COROLIM® protected load chain for smooth operation
  • The unique surface treatment gives excellent corrosion protection and quiet run
  • Swivel hooks at both ends makes in line positioning easy
  • Hooks are designed to open at overload instead of breaking
  • Hooks fitted with heavy duty steel safety latches
  • Hook have Deformation Check Dots forged into side for overload detection
  • RFID equipped (chip) for easy service and inspection
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each hoist
  • Spare parts available


  • Chain bag
  • Material: Durable all steel construction
  • Marking: According to standard, CE-marked, POWERTEX, Model, WLL, Chain, Serial number, User manual/QR code
  • Temperature range: -10°C up to +50°C
  • Finish: Powder coated body in matt black and plated frame components
  • Standard: EN 13157, EN 818-7
  • Safety factor: 4:1
Chain Block POWERTEX Blackline PCB-S2
POWERTEX chain bag

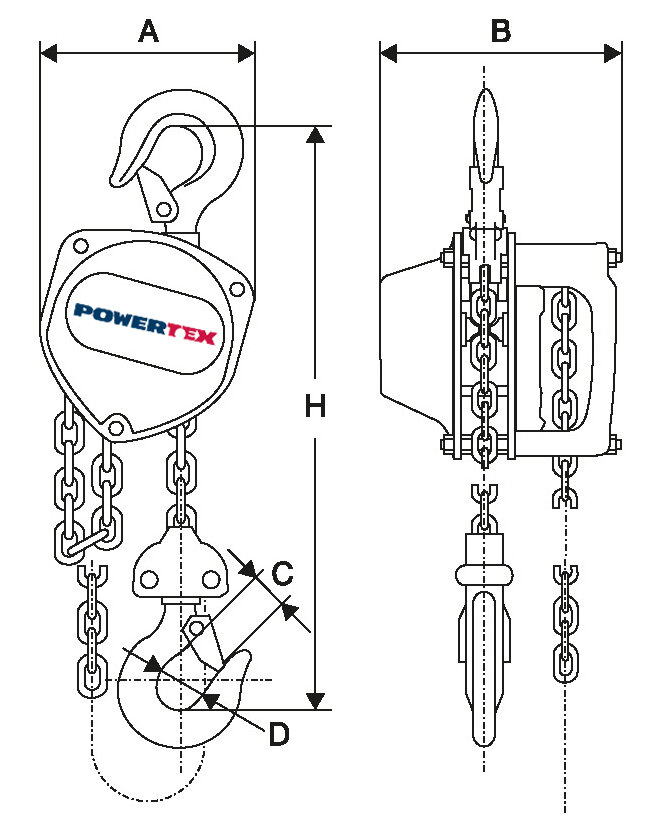

POWERTEX PCB S2 Chain hoist 500 kg to 3 tons measurements. 0.5 - 1 T
Part Code WLL
Lifting height
Model Load chain
Hand chain
Number of falls Hand force max.
H min
16.10PCBS20050030BK 0,5 3 PCB-S2BK/500KG 5,0 x 15,0 5,0 x 23,7 1 21,5 128 75 130 35 22 280 20 8,9
16.10PCBS20050060BK 0,5 6 PCB-S2BK/500KG 5,0 x 15,0 5,0 x 23,7 1 21,5 128 75 130 35 22 280 20 8,9
16.10PCBS20100030BK 1 3 PCB-S2BK/1000KG 6,3 x 19,0 5,0 x 23,7 1 29,1 142 76 150 40 26 330 25 12
16.10PCBS20100060BK 1 6 PCB-S2BK/1000KG 6,3 x 19,0 5,0 x 23,7 1 29,1 142 76 150 40 26 330 25 12
