Powertex
  • The product is equipped with RFID chip
  • Cr6+ Free

POWERTEX Beam Clamp PBC-S1 is durable and easy to install on different beam types. The beam clamp is designed to provide quick rigging and hoisting points for a great variety of applications.

Features:

  • Safe - All POWERTEX Beam Clamps are proof load tested 2 x WLL
  • Compact, lightweight construction
  • Low headroom design
  • Durable all steel construction with powder coated finish and black plated spindle and grip
  • RFID equipped (chip) for easy service and inspection
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each beam clamp
  • Can be turned into Blackline version by adhering the included grey label over the shiny nameplate

Blackline products are suitable for use in theatres and the entertainment industry.

  • Marking: According to standard, CE-marked, POWERTEX, Model, WLL, Serial number, QR code
  • Temperature range: -10°C up to +50°C.
  • Finish: Black painted.
  • Standard: EN 13155
  • Safety factor: 4:1.

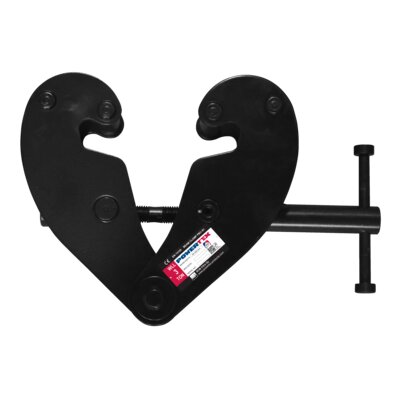

Beam Clamp POWERTEX PBS-S1 with nameplate

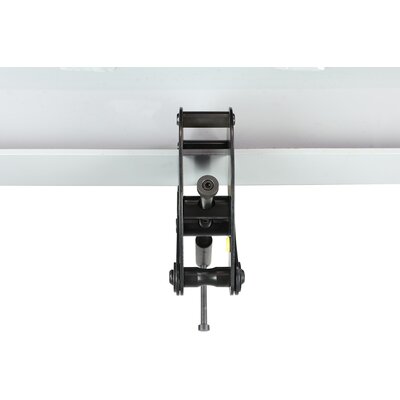

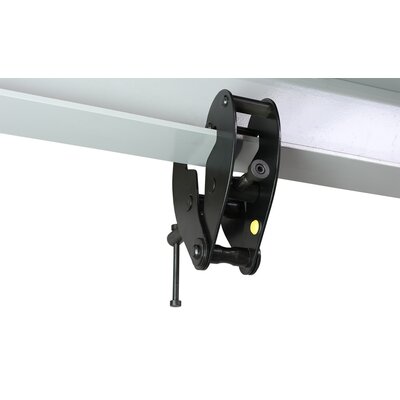

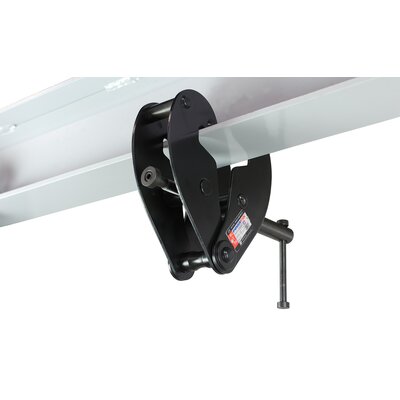

Bjælkeklemme POWERTEX PBS-S1 på drager
POWERTEX Beam Clamp type PBS-S1 with RFID chip for easy registration of service
Beam Clamp POWERTEX PBS-S1 inside
Beam Clamp POWERTEX PBC-S1 measurements Beam Clamp POWERTEX PBC-S1 drawing
Part Code Code WLL
ton
Beam width
(mm)
A max
mm
B min
mm
B max
mm
C
mm
D
mm
E
mm
H
mm
F min
mm
F max
mm
G min
mm
Weight
kg
CAD
502300102400040 1t PBC 1 80-240 270 183 370 94 4 198 20 100 154 22 3,5
502300202400040 2t PBC 2 80-240 270 183 370 102 6 198 20 100 154 22 4,5
502300303300040 3t PBC 3 90-330 355 243 500 132 8 263 22 148 219 46 9,5
502300503300040 5t PBC 5 90-330 355 243 500 142 10 263 28 148 219 43 11
502301003500040 10t PBC 10 90-350 364 269 521 180 12 285 38 165 239 51 16
