Home / Products / POWERTEX Accessories / Stainless Steel Thimble POWERTEX PT316

Stainless Steel Thimble POWERTEX PT316

Stainless Steel Thimble PT316 from POWERTEX, intended for stainless steel wire rope slings and synthetic rope end terminations. Wire rope size 2,5 – 20 mm.

  • Material: Stainless Steel AISI 316L Plate
  • Marking: PX (Powertex), Max. rope size, 316 (Model)
  • Finish: Polished
    POWERTEX stainless thimble PT316
    Thimble groove, seen from side

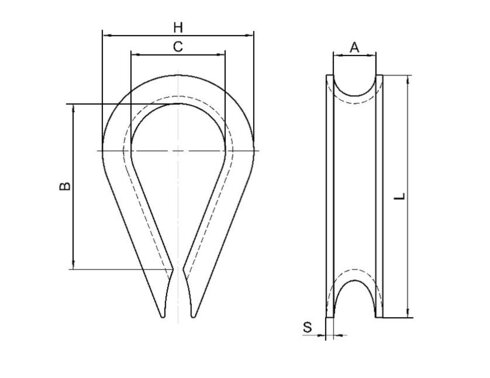

    POWERTEX thimble PT316 drawing POWERTEX thimble PT316 drawing
    Part Code Code Rope diameter
    mm    		 A
    mm    		 B
    mm    		 C
    mm    		 H
    mm    		 L
    mm    		 S
    mm    		 Weight
    kg    		 CAD
    123100250450 PT316-2.5 2,5 3 19 10 15 23 1 0,002 -
    123100350450 PT316-3.5 3,5 4 20 11 16,5 25 1 0,003 -
    123100400450 PT316-4 4 5 26,5 13 20 35 1 0,005 -
    123100500450 PT316-5 5 6 28,5 15 23 35,5 1,2 0,008 -
    123100600450 PT316-6 6 7 32 18 27 40 1,2 0,01 -
    123100700450 PT316-7 7 8 34,5 18 28,5 44 1,5 0,015 -
    123100900450 PT316-9 9 10 46,5 24 36,5 58 1,8 0,032 -
    123101100450 PT316-11 11 12 49 27 40,5 62 1,8 0,04 -
    123101300450 PT316-13 13 14 59 34 50 75,5 1,8 0,059 -
    123101500450 PT316-15 15 16 59,5 36 56 79 2,5 0,099 -
    123101600450 PT316-16 16 18 68 41 60,5 88,5 2,5 0,116 -
    123101800450 PT316-18 18 20 78 46 68,5 101 2,8 0,174 -
    123102000450 PT316-20 20 22 87,5 52 76,5 113,5 2,8 0,217 -

    Groove “A” tolerance -0/+5%

    Download CAD

    Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

    To download CAD files, you must provide a valid e-mail address

    Fetching the CAD file...
