• Cr6+ Free

POWERTEX Wire rope grip PWRG is approved for lifting when assembly is made according to the user instructions.

It is designed to be used with 6 or 8 stranded steel wire rope with steel or fiber core with tensile strength up to 1960 N/mm2.

Correctly mounted the assembly will withstand 80% of the steel wire ropes minimum breaking strength.

  • Safe - The grips are designed to assure high friction between wire rope and grip
  • Quick and easy to use – Only 3 grips needed for safe assembly
  • Quick mounting thanks to the recessed bolt head seats that hold the bolt while tightening the nuts
  • Low maintenance thanks to galvanization of grips and Dacrotized bolt and nuts
  • Features: PWRG-4, 6, 8, 10 are drop forged. PWRG-12, 16, 20, 25, 35 are casted.
  • Finish: Galvanized.
  • Warning: Not for use with compacted or hammered wire ropes. It is not recommended to use plastic covered ropes for lifting purposes with wire rope grips

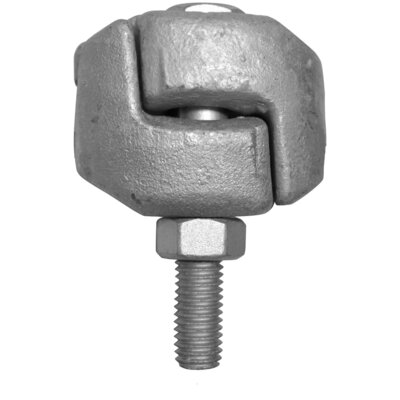

    POWERTEX wire rope grip assembled
    The POWERTEX wire lock set consists of these parts
    Marking of the POWERTEX wire rope grip

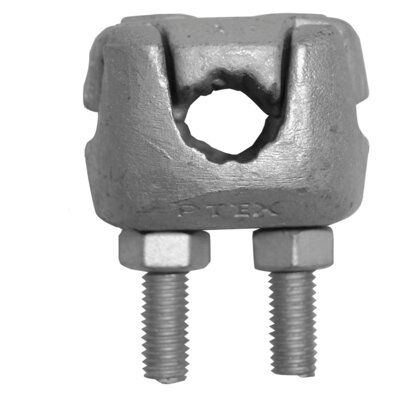

    POWERTEX stamping on the wire rope grip
    POWERTEX wire rope grips are available in more sizes
    Part Code Code Rope diameter
    Thread No. of clamps when lifting* Torque
    10.17PWRG04 PWRG-4 3-4 M5 3 5 5
    10.17PWRG06 PWRG-6 5-6 M6 3 9 10
    10.17PWRG08 PWRG-8 7-8 M6 3 9 14
    10.17PWRG10 PWRG-10 9-10 M8 3 23 25
    10.17PWRG12 PWRG-12 10-12.5 M8 3 23 32
    10.17PWRG16 PWRG-16 13-16.5 M10 3 45 58
    10.17PWRG20 PWRG-20 17-20 M12 3 75 95
    10.17PWRG25 PWRG-25 21-25 M16 3 190 164
    10.17PWRG35 PWRG-35 26-35 M16 3 190 370

    * Minimum number of grips required to fulfill 80% of the rope MBL can vary, and must be according to local regulations (see local language).
