Powertex
  • The product is equipped with RFID chip
  • Cr6+ Free

POWERTEX Permanent lifting magnets PLM are very strong, durable and easy to use. The lifting magnets are designed to be versatile and can be used to attach to both flat and circular objects. They need limited maintenance and are designed to keep the lifting capacity over a long lifetime. The PLM magnets are very powerful compared to their dimensions and are light in weight.

Features:

  • Safe - each lifting magnet is proof load tested to 3,5 x WLL and inspected before leaving the factory
  • High quality powerful Neodynium permanent magnets inside
  • Light weight
  • Designed to lift on both flat and circular surfaces
  • Very high safety factor 3,5 (EN 13155 require SF 3)
  • The increased safety factor increase life time and assures that standard safety factor 3 can be met also after annual check
  • Strong and durable powder painted steel housing with machined connection surface
  • Wear and corrosion resistant Chrome plated shackle as top connection
  • Handle is equipped with a positive locking device and double locking for extra safety
  • RFID equipped (chip) for easy registration, service and inspection
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each lifting magnet
  • Spare parts available
  • Material: High quality magnetic material in strong and solid housing
  • Marking: According to standard, CE-marked, POWERTEX, model, WLL, individual serial number, manufacturing date, QR code, capacity chart and equipped with a warning tag.
  • Temperature range: -40°C – +80°C.
  • Finish: Red powder painted housing and Chrome plated shackle
  • Standard: EN 13155
  • Note: Max. lifting capacity is based upon lifting clean, flat, low-carbon steel plate with the full area of the magnet’s pole area in contact with the load.
  • Safety factor: 3,5:1.

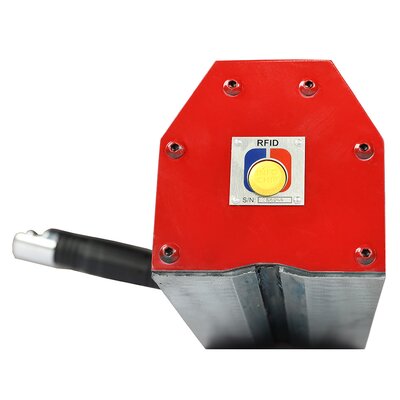

POWERTEX lifting magnet with RFID chip for easy registration of service

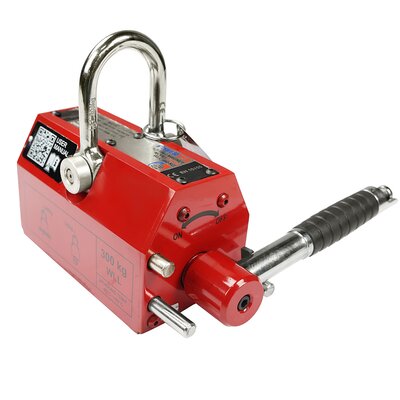

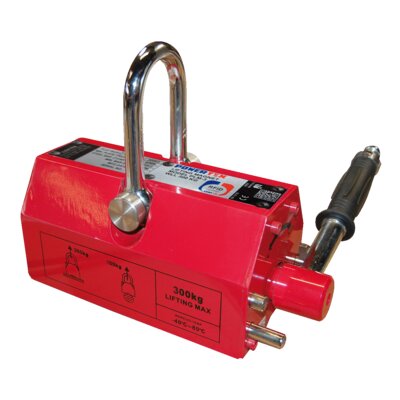

POWERTEX Lifting magnet WLL 300 kg

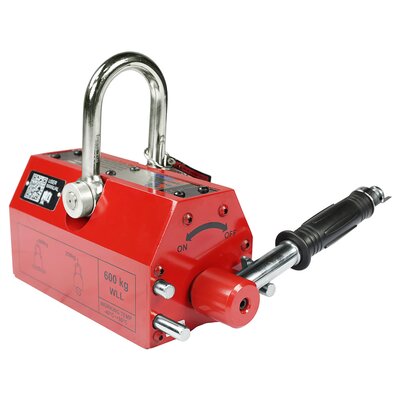

POWERTEX Lifting magnet WLL 600 kg
Pole shoe on POWERTEX Permanent lifting magnet.

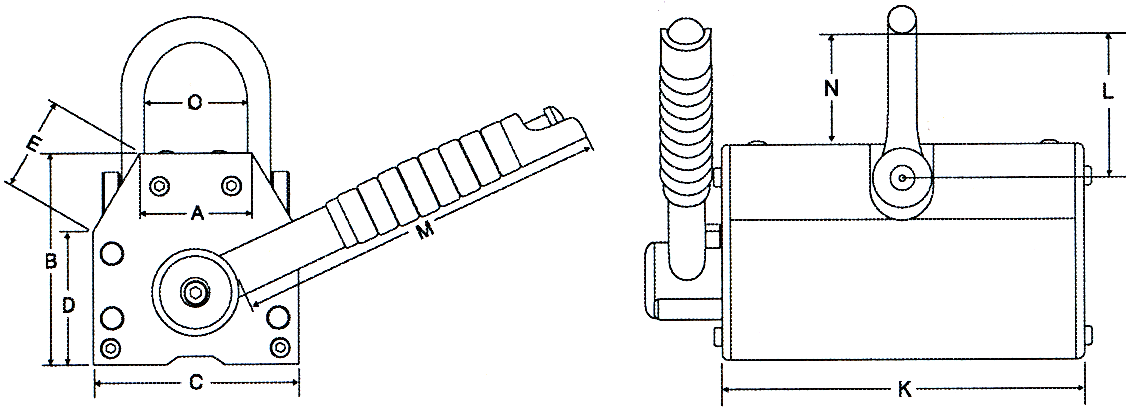

Permanent Lifting Magnet POWERTEX PLM measurements Permanent Lifting Magnet POWERTEX PLM drawing
Part Code Code WLL
ton
Max. handle turning force
kgf
Max. handle turning force
kN
A
mm
B
mm
C
mm
D
mm
E
mm
K
mm
L
mm
M
mm
N
mm
O
mm
Weight
kg
CAD
503100010000040 PLM-1 0,1 < 4 0,039 29 71 64 47 29 92 54 130 45 31 3
503100030000040 PLM-3 0,3 < 8 0,078 39 96 88 63 41 165 78 158 63 45 10
503100060000040 PLM-6 0,6 < 8 0,078 51 118 118 74 57 216 114 199 94 57 20
503100100000040 PLM-10 1 < 16 0,157 64 140 148 90 66 286 126 246 106 73 40
503100200000040 PLM-20 2 < 16 0,157 92 188 188 122 82 397 150 375 120 100 95
