Powertex
  • The product is equipped with RFID chip
  • Cr6+ Free

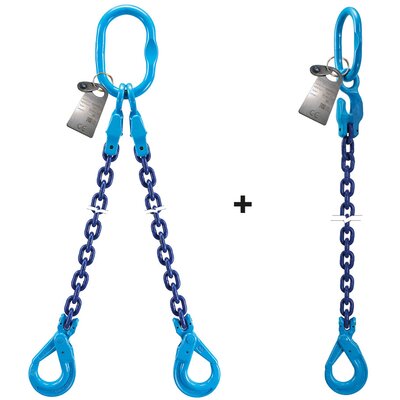

Our smart chain sling system in Grade 10 consists of 1-leg and 2-leg slings that can be used directly from the box.

The smart slings can instantly be combined on the crane hook to lift loads that require 3 or 4 legs to be used.

Features:

  • Multifunctional chain slings Grade 10 packed in box having all necessary markings and documents and ready for use
  • The smart stainless steel sling tag gives information of the WLL for the sling as configurated, but also when used in any 1-4 leg PCSB combination
  • Two 1-leg or 2-leg PCSB slings can easy and safely be combined on the crane hook to perform 2-leg, 3-leg and 4-leg lifting operation thanks to the smart sling tag
  • 2-leg slings can also safely be used in a 1-leg lifting operation as adequate information is given on the smart sling tag (Non-used leg should be hooked to the master link to avoid snagging)
  • +25% higher lifting capacity (WLL) compared to standard Grade 8 slings
  • Light weight thanks to the smart, multifunctional top com­ponents
  • Cost effective compared to conventional slings thanks to use of multifunc­tional components
  • Shortening function is integrated in the master link connector allowing the chain legs to be adjusted instantly
  • Shortening can be made from either side of the shortener which is a safety advantage compared to shortening clutch.
  • No reduction of WLL when shortening the chains thanks to the well-designed shortening pockets
  • Robust self-locking safety hooks are standard
  • Safe - Each welded master link and chain link is proof load tested in the factory 2,5 x WLL prior delivery
  • Safe - Each hook and forged coupling component is crack detection tested and samples are proof load tested in factory prior delivery
  • Components are fatigue rated to +20,000 cycles at 1.5 times the WLL acc to EN-1677 standards
  • Each component is marked with traceability code that gives full traceability to the raw material

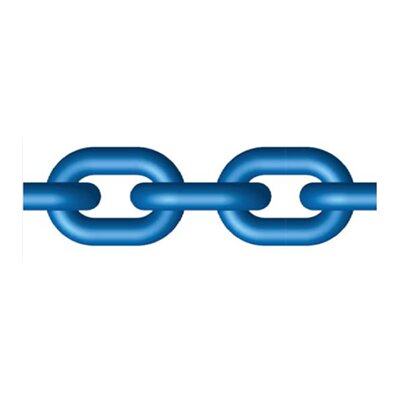

  • European made lifting chains
  • The chains are stamped with traceability code that gives full traceability to the raw material
  • The chain slings are chromium 6 free
  • The slings are equipped with a drop shaped stainless RFID tag (HF 13,56 Mhz)
  • QR code for on-site access to Multilanguage user manuals
  • Fulfills EN 818-4 (+25 % WLL) and the Machinery Directive 2006/42/EC
  • POWERTEX 2.2 Certificate & EC Declaration of Conformity in 14 languages enclosed
  • POWERTEX User Manual in 14 languages enclosed
  • Material: Quenched and Tempered Alloy Steel of Grade 10 quality
  • Marking: According to standard, CE-marked, WLL, Chain size, Length, Grade 10, Serial number, MFG date, QR code leading to user manual
  • Temperature range: -40ºC up to +200°C without reduction of WLL
  • Finish: Painted blue
  • Standard: EN 818-4
    (+ 25% WLL) and ASTM A973
  • Safety factor: 4:1
  • Grade: 10
Etiqueta eslinga de cadena POWERTEX en caja PCSB-A-026 | © Etiqueta eslinga de cadena POWERTEX en caja PCSB-A-026
Part Code Chain diameter WLL EWL
m
Description Number of legs Weight
kg
CAD
240500600300010 6 1,4 3 Grab Masterlink X-A04 and Clevis Self Locking hook X-026 1 3,6
240500600500010 6 1,4 5 Grab Masterlink X-A04 and Clevis Self Locking hook X-026 1 5,4
240800600300010 6 2 3 Grab Masterlink X-A05 and Clevis Self Locking hooks X-026 2 6,7
240800600500010 6 2 5 Grab Masterlink X-A05 and Clevis Self Locking hooks X-026 2 10,3
240500800300010 8 2,5 3 Grab Masterlink X-A04 and Clevis Self Locking hook X-026 1 6,4
240500800500010 8 2,5 5 Grab Masterlink X-A04 and Clevis Self Locking hook X-026 1 9,6
240800800300010 8 3,55 3 Grab Masterlink X-A05 and Clevis Self Locking hooks X-026 2 11,5
240800800500010 8 3,55 5 Grab Masterlink X-A05 and Clevis Self Locking hooks X-026 2 17,9
240501000300010 10 4 3 Grab Masterlink X-A04 and Clevis Self Locking hook X-026 1 10,1
240501000600010 10 4 6 Grab Masterlink X-A04 and Clevis Self Locking hook X-026 1 17,6
240801000300010 10 5,6 3 Grab Masterlink X-A05 and Clevis Self Locking hooks X-026 2 18,1
240801000600010 10 5,6 6 Grab Masterlink X-A05 and Clevis Self Locking hooks X-026 2 33,1
240501300300010 13 6,7 3 Extra large Grab Masterlink X-001-251+X-079-13 and Self Locking hook X-026 1 18,8
240501300600010 13 6,7 6 Extra large Grab Masterlink X-001-251+X-079-13 and Self Locking hook X-026 1 31,7
240801300300010 13 9,5 3 Extra large Grab Masterlink X-001-251+X-079-13 and Self Locking hook X-026 2 34,5
240801300600010 13 9,5 6 Extra large Grab Masterlink X-001-251+X-079-13 and Self Locking hook X-026 2 60,3

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

To download CAD files, you must provide a valid e-mail address

Fetching the CAD file...
Chain Ø   Single   2-leg* 3- and 4-leg* Endless
  Straight lift Information icon U-lift Information icon Information icon Information icon Information icon Choke hitch
mm Straight Choke Basket 0°−45° 45°−60° 0°−45° 45°−60° Choke
6 1,4 1,12 2,8 2 1,4 3 2,12 2,24
8 2,5 2 5 3,55 2,5 5,3 3,75 4
10 4 3,15 8 5,6 4 8 6 6,3
13 6,7 5,3 13,4 9,5 6,7 14 10 10,6
Factor (KL) 1 0,8 2 1,4 1 2,1 1,5 1,6
*When using multi-leg sling in laced lift - reduce the value by 20%
