• The product is equipped with RFID chip
  • Cr6+ Free

Extremely small and lightweight aluminum chain block. It weighs only approximately 50% of a similar standard chain block. The block can be used for lifting as well as pulling. The hoists are factory equipped with overload protection device (OLP), which limits the maximum operating force that can be applied using the hand chain.

Features:

  • Safe - Each block is dynamic proof load tested 1,5 x WLL before leaving the factor
  • Compact, lightweight construction with aluminum covers
  • Durable construction with powder coated finish and plated frame parts
  • Chain block is chromium 6 free
  • Sealed bearings on the chain wheel maximize efficiency and serviceability.
  • Sprocket wheel surface treated against wear and corrosion
  • Safe and well covered automatic load reaction break
  • Equipped with double brake pawls
  • Fine calibrated European made load chain for smooth operation
  • Swivel hooks at both ends makes in line positioning easy
  • Hooks are designed to open at overload instead of breaking
  • Hooks fitted with heavy duty steel safety latches
  • Hook have Deformation Check Dots forged into side for overload detection
  • RFID equipped (chip) for easy service and inspection
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each hoist
  • 14 language User Manual enclosed with each hoist
  • Spare parts available
  • Material: Durable aluminium/steel construction
  • Marking: According to standard, POWERTEX, Model, WLL, Chain type , Serial number, User manual/QR code
  • Temperature range: -10°C up to +50°C
  • Finish: White powder coated body, side plate assembly and hooks black powder coated
  • Standard: EN 13157, EN 818-7
  • Safety factor: 4:1

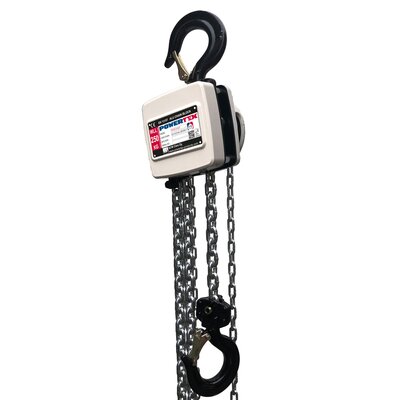

Aluminum Chain Block POWERTEX PACB-S1OLP 3t
RFID chip on aluminum chain block POWERTEX PACB-S1
Warning tag on hoist
Aluminum Chain Block POWERTEX PACB-S1OLP back
Overload protection device
PCB-S2 swivel hook detail
Aluminum Chain Block POWERTEX PACB-S1OLP 500 kg front
Aluminum Chain Block POWERTEX PACB-S1OLP 500 kg back
Bottom Hook for PACB-S1OLP 500 kg
Alu chain hoist with overload protection drawing Aluminum Chain Block POWERTEX PACB-S1 drawing
Part Code WLL
ton
Lifting height
m
Model Load chain
mm
Hand chain
mm
Number of falls Hand force max.
kg
Hand chain length
m
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
H min
mm
Weight
kg
CAD
500100030300241 0,25 3 PACB-S1OLP/250 3,0 x 9 2,5 x 12 1 15 2,5 75 77 44 32 35,5 21 225 2,6
500100030600241 0,25 6 PACB-S1OLP/250 3,0 x 9 2,5 x 12 1 15 2,5 75 77 44 32 35,5 21 225 3,8
500100050300241 0,5 3 PACB-S1OLP/500 4,0 x 12 3,5 x 16 1 19 2,5 92 89 51 34,5 42 23 265 4,6
500100050600241 0,5 6 PACB-S1OLP/500 4,0 x 12 3,5 x 16 1 19 2,5 92 89 51 34,5 42 23 265 6,1
500100100300241 1 3 PACB-S1OLP/1000 5,6 x 15,7 3,5 x 16 1 29 2,5 110 102 55 42,5 49,5 27 295 6,6
500100100600241 1 6 PACB-S1OLP/1000 5,6 x 15,7 3,5 x 16 1 29 2,5 110 102 55 42,5 49,5 27 295 10,14
500100200300241 2 3 PACB-S1OLP/2000 8,0 x 24 4,8 x 22 1 37 2,5 145 138 78,5 46,5 58,5 35 390 13,5
500100200600241 2 6 PACB-S1OLP/2000 8,0 x 24 4,8 x 22 1 37 2,5 145 138 78,5 46,5 58,5 35 390 20,4
500100300300241 3 3 PACB-S1OLP/3000 7,1 x 20,1 4,8 x 22 2 35 2,5 165 120 68 50 61,9 37 470 17
500100300600241 3 6 PACB-S1OLP/3000 7,1 x 20,1 4,8 x 22 2 35 2,5 165 120 68 50 61,9 37 470 26,3

Last 3 digits indicate the lifting height. For example 030 = 3,0 m
Weight: With standard 3 m lifting height
