The PRFIDT (POWERTEX Radio-Frequency Identification) drop tag is intended to be used for quick and easy asset control. PRFIDT has a well-protected chip mounted on stainless drop shaped tag.

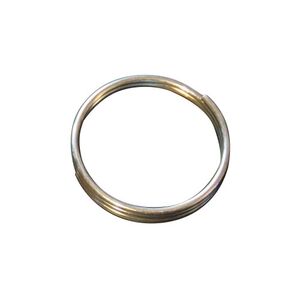

The tag can easily be mounted to a chain sling or a wire rope sling using POWERTEX heavy duty key ring. The chip has a unique ID-number making it possible to connect the chip to a certain product using an asset control program like CertMax+ to plan so that inspections etc. are carried out in time.
The chip´s UID number is also marked on the tag.
- RFID chip type: Drop shaped tag
- Operation frequency: HF – 13,56 MHz
- Protection class: IP68
- Material: Stainless steel tag, PA encapsulation
- Temperature range: -30°C up to +125°C
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
To download CAD files, you must provide a valid e-mail address
