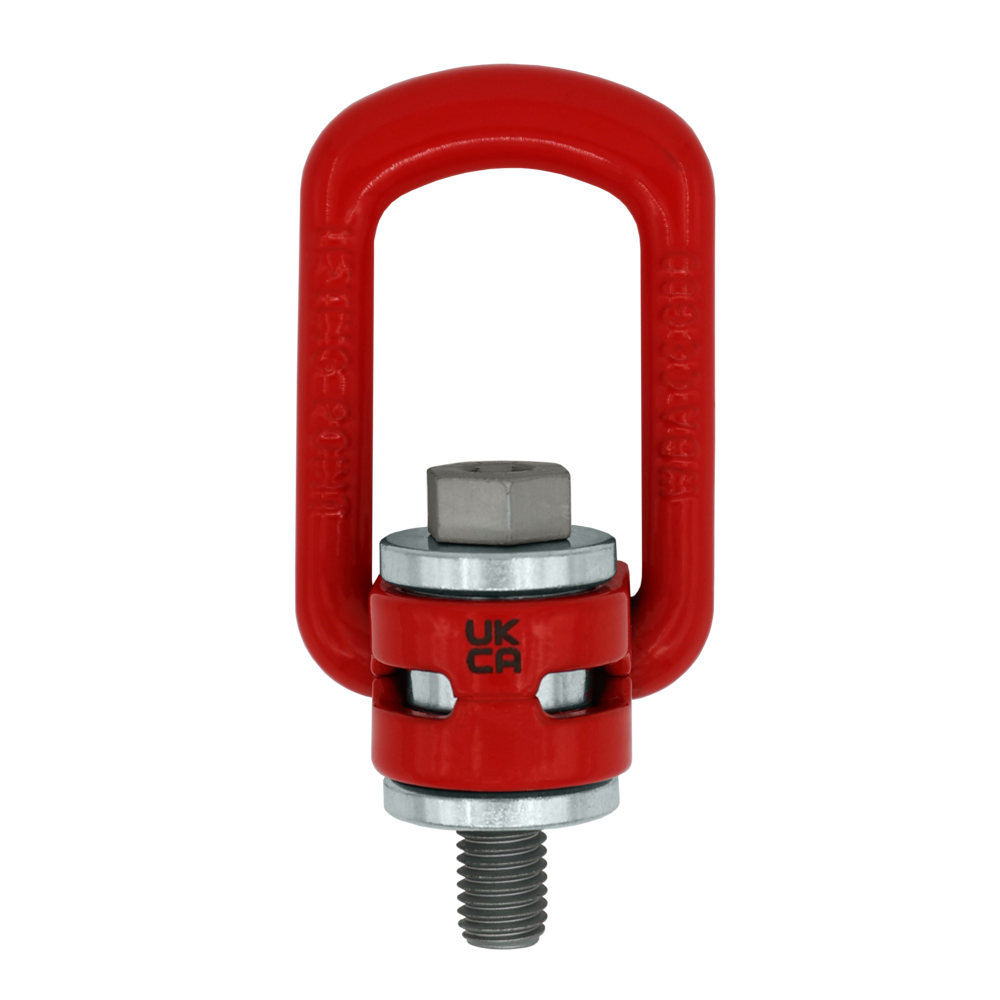

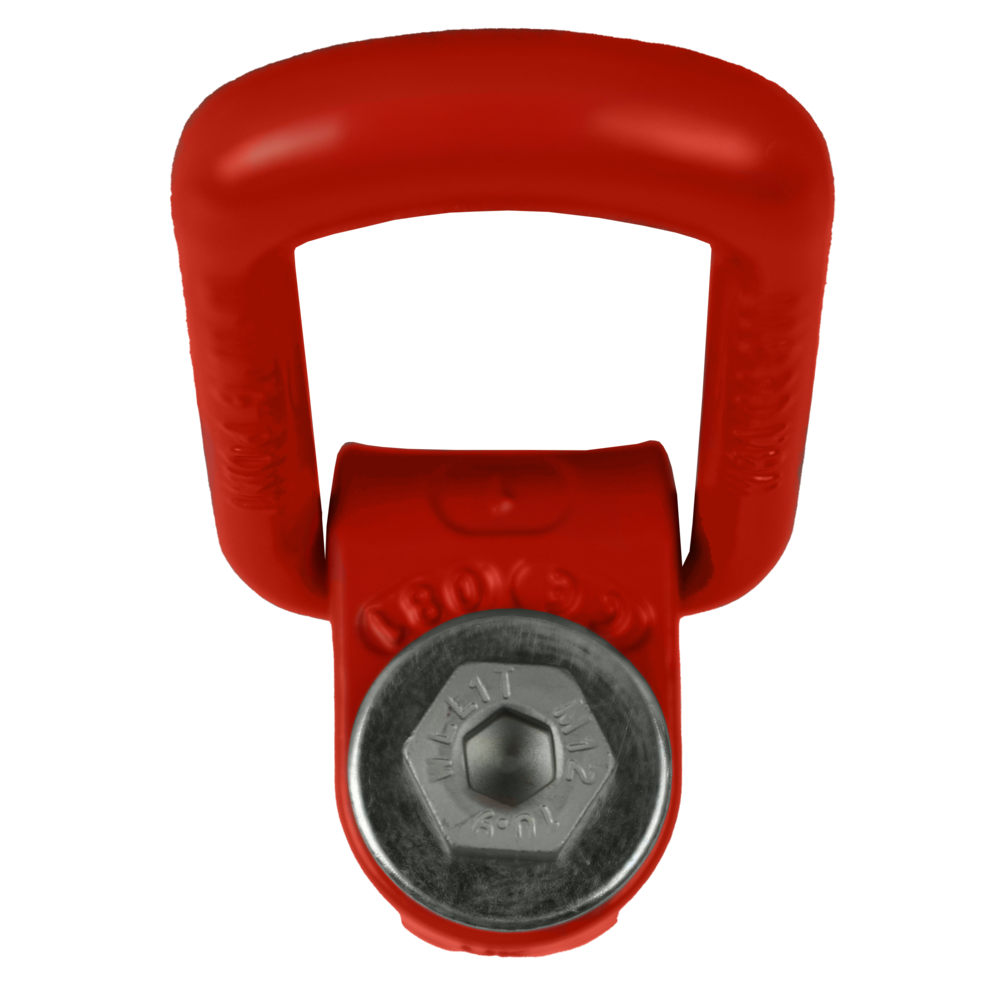

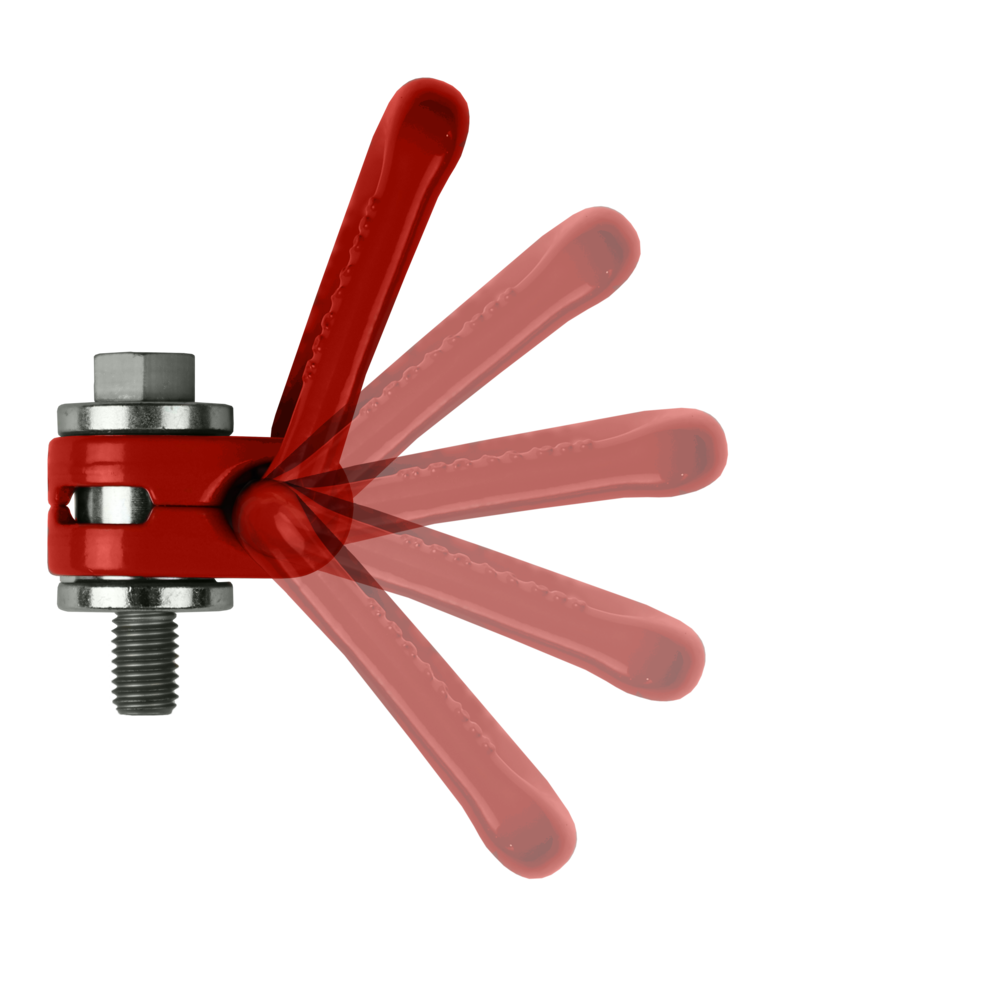

Introducing the POWERTEX Lifting point with a decentred link – LPD. The LPD is a robust solution for industrial environments that demand precision and durability in material handling. This lifting point is engineered to rotate 360 degrees and pivot up to 150 degrees, offering a versatile range of motion. The unique design features a forged housing with two pressed-in washers and a bolt equipped with a locking ring for secure interlocking. A spacious forged D-shaped link is securely locked within the housing opening. The bolt head is designed for versatility with an outer hexagonal grip and a hex socket cap grip, ensuring easy installation with various tools. The LPD is the quietest lifting point in the range, having a spring that removes rattling sound, making it suitable for use on vibrating machines and vehicles. The spring also allows the D-ring to be left in a vertical position. Original Powertex bolts are available in longer lengths to suit diverse requirements.
Allowed Loading directions:
- Same WLL in all directions

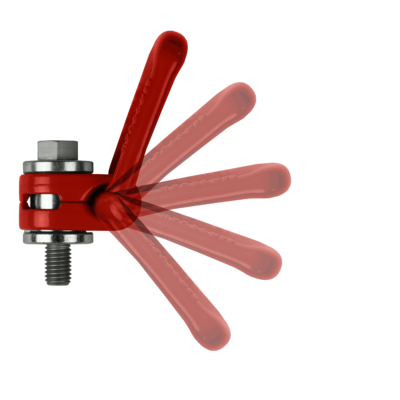

- 360° rotation, 150° pivot motion from vertical
- The LPD is not designed to rotate under load (choose LPB instead)
Product Features:
- Durabable finish: Coated in PURE RED powder paint, the LPD lifting points stand out for their durability and corrosion resistance.
- Compliance to standard: Manufactured to meet the testing requirements specified by EN 1677-1, ensuring high safety and quality standards.
- Reliable: Designed with a safety factor of at least 4 in the intended load directions, offering a secure lifting experience.
- Quality assurance: Each component undergoes crack detection testing in the factory and all forged links are proof load tested to ensure reliability.
- Type testing: Each model undergoes factory type testing including breaking tests and fatigue test to 20,000 cycles at 1.5 times the WLL, highlighting the product's endurance.
- Full traceability: Every component is marked with POWERTEX branding, model name, WLL, CE-mark, UKCA-mark, and a traceability code ensuring traceability to the production lot and raw materials.
- Uniform WLL: The LPD maintains the same WLL in all directions, simplifying load planning and increasing versatility.
- Harmless: Chromium 6 free, aligning with environmental safety standards.
- Certificates included: Comes with a POWERTEX 2.2 certificate & Declaration of Conformity with each box, confirming compliance with EC and UK regulations.
- Wide temperature range: Optimized for use between -40°C to +200°C without WLL reduction, with permissible WLL reductions for higher temperature ranges, ensuring adaptability to various environments.
- Features: 360 degrees rotatable, quiet, spacious link, longer bolts available
- Material: Forged alloy steel
- Marking: According to standard, CE-marked, UKCA-marked, POWERTEX, model name, WLL and batch number
- Temperature range: -40 up to +200°C without reduction in WLL
- Finish: Powder painted in PURE RED
- Standard: EN 1677-1

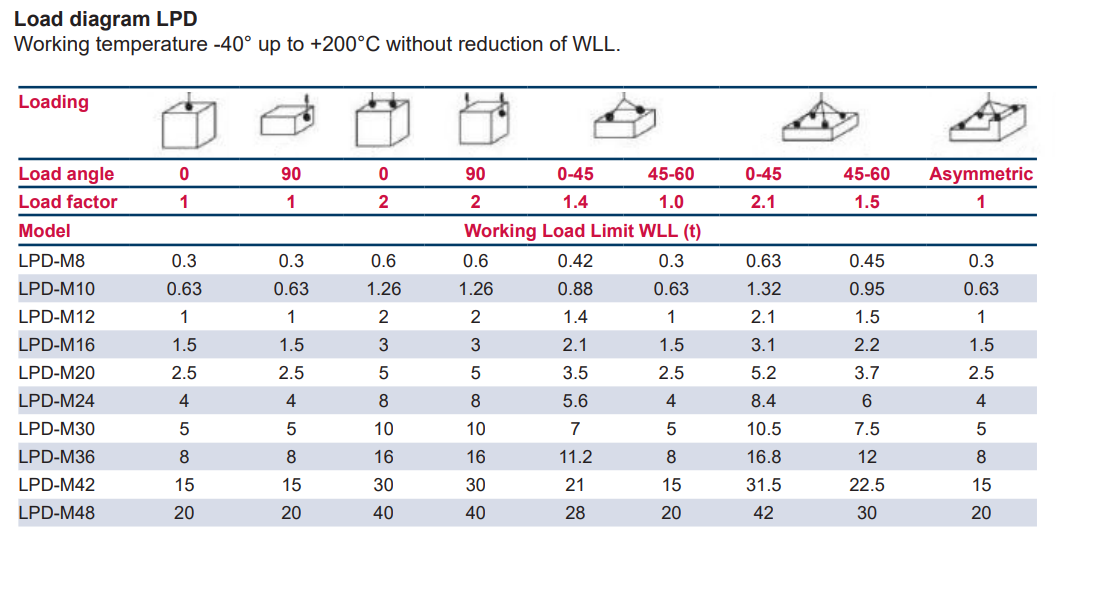

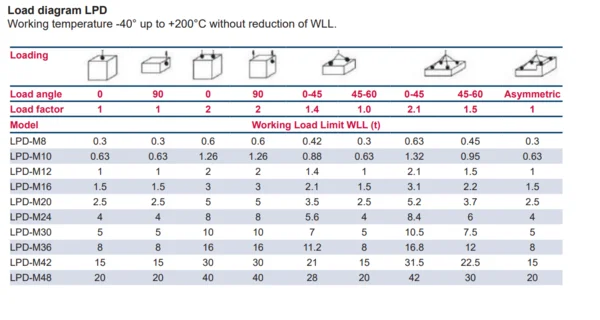

- Note: Before use, review the WLL diagram to select the correct LPD for your application
