Ropetex
  • Ordinary right hand lay
  • Stainless steel
  • Not to be used with swivel

ROPETEX S65 is a stainless steel rope, the most commonly used range is from 8 to 38 mm. It can be used for cranes, hoists, slings and a wide range of various other applications. Ropetex S65 is equipped with an Independent Wire Rope Core (IWRC) which gives it a high breaking strength and dimensionally stability, especially when used on sheaves or drums. In Stainless Steel (AISl 316) it's well suited for marine and aggressive environments.

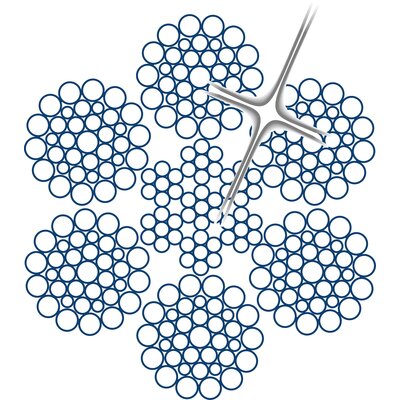

  • Rope construction: 6x36WS+IWRC
  • Material: AISI 316 / EN 1.4401
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C
  • Standard: EN 12385-4
    except material
  • Fill factor: 0,59
  • General use Wire for general use
  • Winch rope Wire for winches
  • Stay rope Stay rope
  • Overhead cranes For the use with overhead crane
  • Agriculture and livestock Wire for agriculture
  • Slings Sling wire rope
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1570 N/mm²
Weight
kg/100m
108101004620048 10 46 56 40,9
108101204620048 12 66,2 80,5 58,9
108101404620048 14 90,2 110 80,2
108101604620048 16 118 143 105
108101804620048 18 149 181 133
108102004620048 20 184 224 164
108102404620048 24 265 322 236
