Ropetex
  • Ordinary right hand lay
  • Stainless steel
  • Not to be used with swivel

Steel wire rope ROPETEX S33 in stainless steel is a good choice for basic lifting applications in environments where corrosion resistance is important. ROPETEX S33 is equipped with a Wire Strand Core (WSC) which gives the rope a good strength and a reasonable balance between fatigue and wear resistance. ROPETEX S33 can be used for applications where the rope runs over sheaves or is spooled on a drum.

Typical applications:

  • lifting applications
  • slings
  • winch rope
  • stay ropes

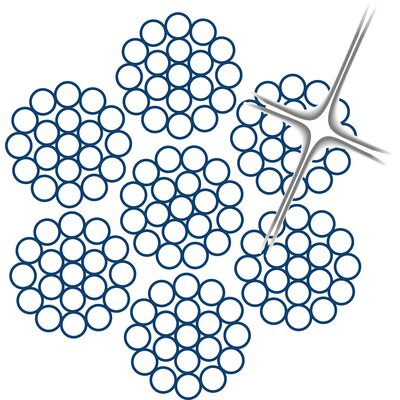

  • Rope construction: 6x19M-WSC
  • Material: AISI316 / EN 1.4401
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C
  • Standard: EN 12385-4
    except material
  • Fill factor: 0,53
  • General use Wire for general use
  • Winch rope Wire for winches
  • Stay rope Stay rope
  • Agriculture and livestock Wire for agriculture
  • Slings Sling wire rope
Steel Wire Rope ROPETEX S33 Stainless Steel
Part Code Rope diameter
mm
Steel area
mm²
Min. breaking force
kN
1570 N/mm²
Weight
kg/100m
108100204620038 2 1,67 2,27 1,52
108100304620038 3 3,76 5,12 3,43
108100404620038 4 6,69 9,09 6,1
108100504620038 5 10,5 14,2 9,53
108100604620038 6 15 20,5 13,7
108100704620038 7 20,5 27,8 18,7
108100804620038 8 26,8 36,4 24,4
108101004620038 10 41,8 56,8 38,1
108101204620038 12 60,2 81,8 54,9
108101404620038 14 81,9 111 74,7
108101604620038 16 107 145 97,5
